INSTALLATION
isar - Installation and Servicing

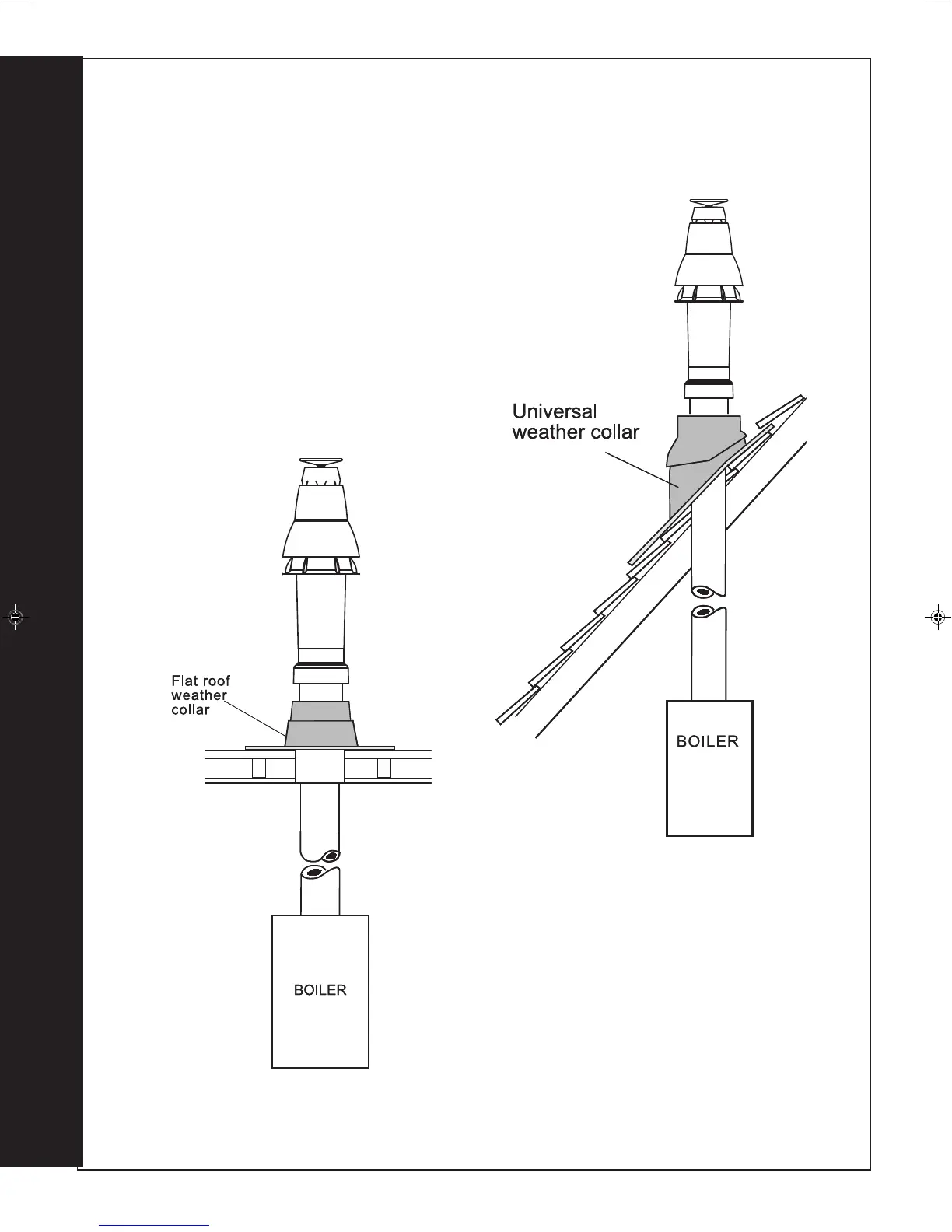

FLUE OUTLET
rf8737
rf8738
30
FLUE ARRANGEMENT
Note.
The equivalent flue length resistance of the elbow kits are:
90
o
elbow kit = 1m
45
o
elbow kit = 0.6m
203319-3.pmd 27/03/2008, 08:1526
