IDEAL isar HE24 User Manual

39
SERVICING
isar - Installation and Servicing

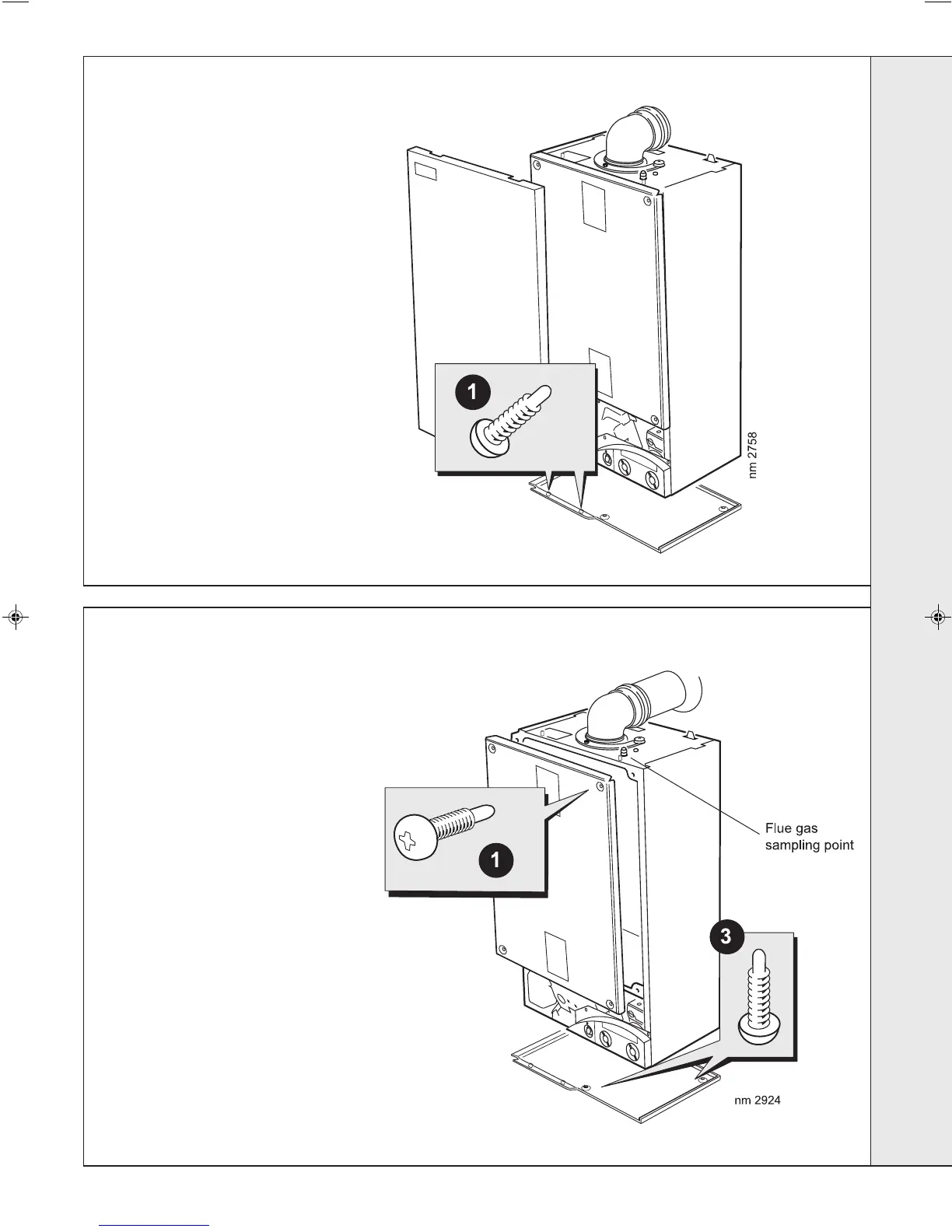

50 BOILER SEALING PANEL / BOTTOM PANEL REMOVAL
49 BOILER FRONT PANEL REMOVAL
1. Remove the 2 screws from the
underside of the boiler.
2. Pull the panel forward at the bottom and
lift to disengage it from the top lugs.
1. To remove the sealing panel remove
the 4 screws.
2. Remove the panel.
3. To remove the bottom panel remove
the 2 screws.
4. Pull the right hand side of the panel
down. Slide it to the right and
withdraw.
SERVICING
203319-3.pmd 27/03/2008, 08:1539
