FC9Y-B1722
Cartridge Base Module
The cartridge base module can be connected to the communication connector on the Plus CPU module to allow the use of
cartridges. The cartridge base module is equipped with cartridge slots 1 and 2. One cartridge base module can be connected to
the Plus CPU module.
Part Names and Functions
(1) Cartridge Slot 1
This slot is used to connect a digital I/O cartridge, analog I/O cartridge, or communication cartridge.
(2) Cartridge Slot 2
This slot is used to connect a digital I/O cartridge, analog I/O cartridge, or communication cartridge.
(3) Communication Connector 1
This connector is used to connect an HMI module.
(4) Communication Connector 2
This connector is used to connect the module to the Plus CPU module.
Note: The cartridge base module cannot be connected to the All-in-One CPU module or CAN J1939 All-in-One CPU module.
(5) Dummy Cartridges
Removable dummy cartridges that protect the cartridge slots. Remove the dummy cartridge when connecting a digital I/O
cartridge, analog I/O cartridge, or communication cartridge.
(6) Communication Connector Protection Sticker
This sticker protects the communication connector. Remove the communication connector protection sticker when
connecting the HMI module.

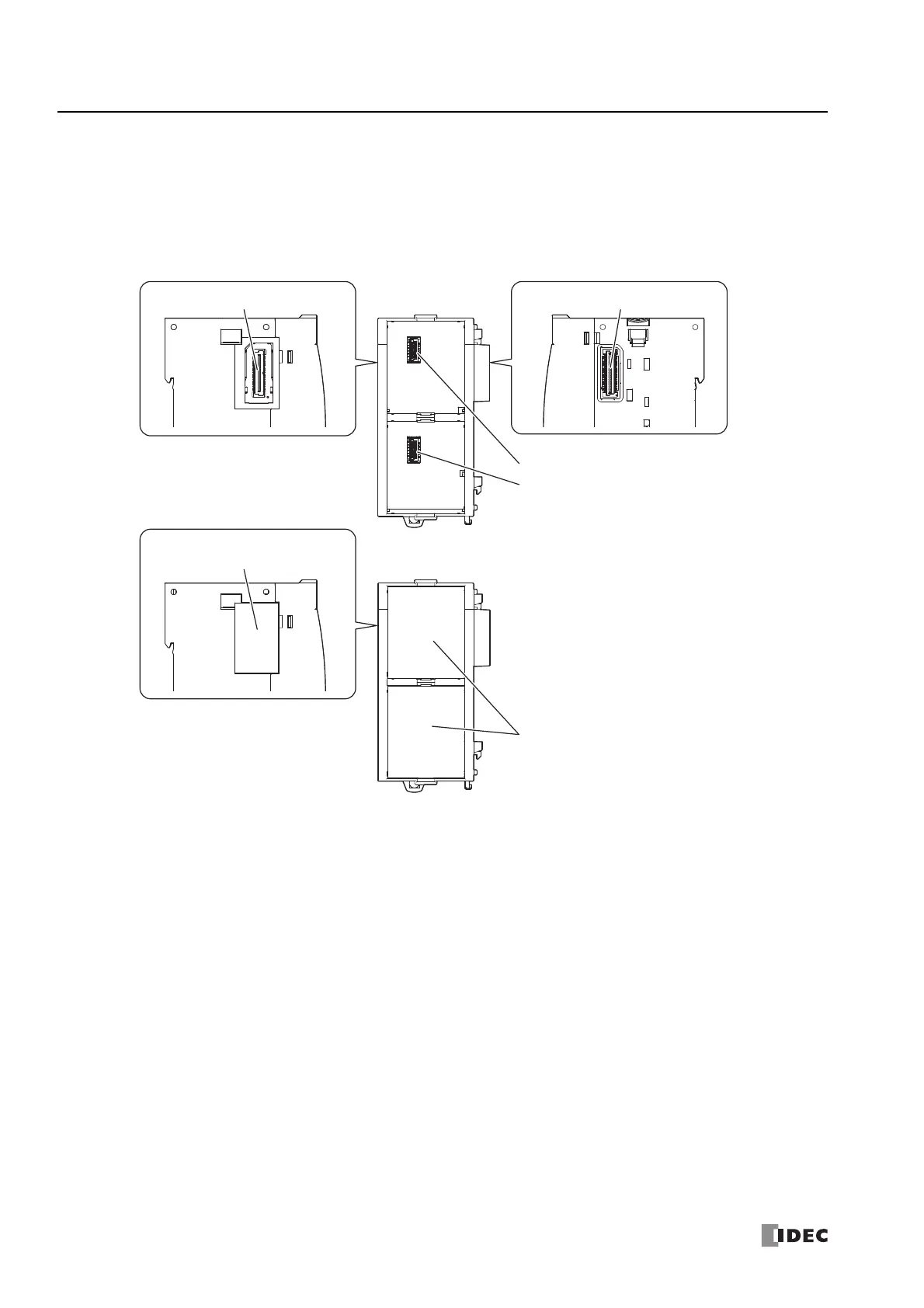

(1) Cartridge Slot 1
(2) Cartridge Slot 2
(3) Communication Connector 1
(6) Communication Connector
Protection Sticker
(4) Communication Connector 2
(5) Dummy Cartridges
To Next Page
