FC6A S
ERIES
MICROS
MART
U
SER
’
S
M
ANUAL
FC9Y-B1722 3-25
3: I
NSTALLATION
AND
W
IRING

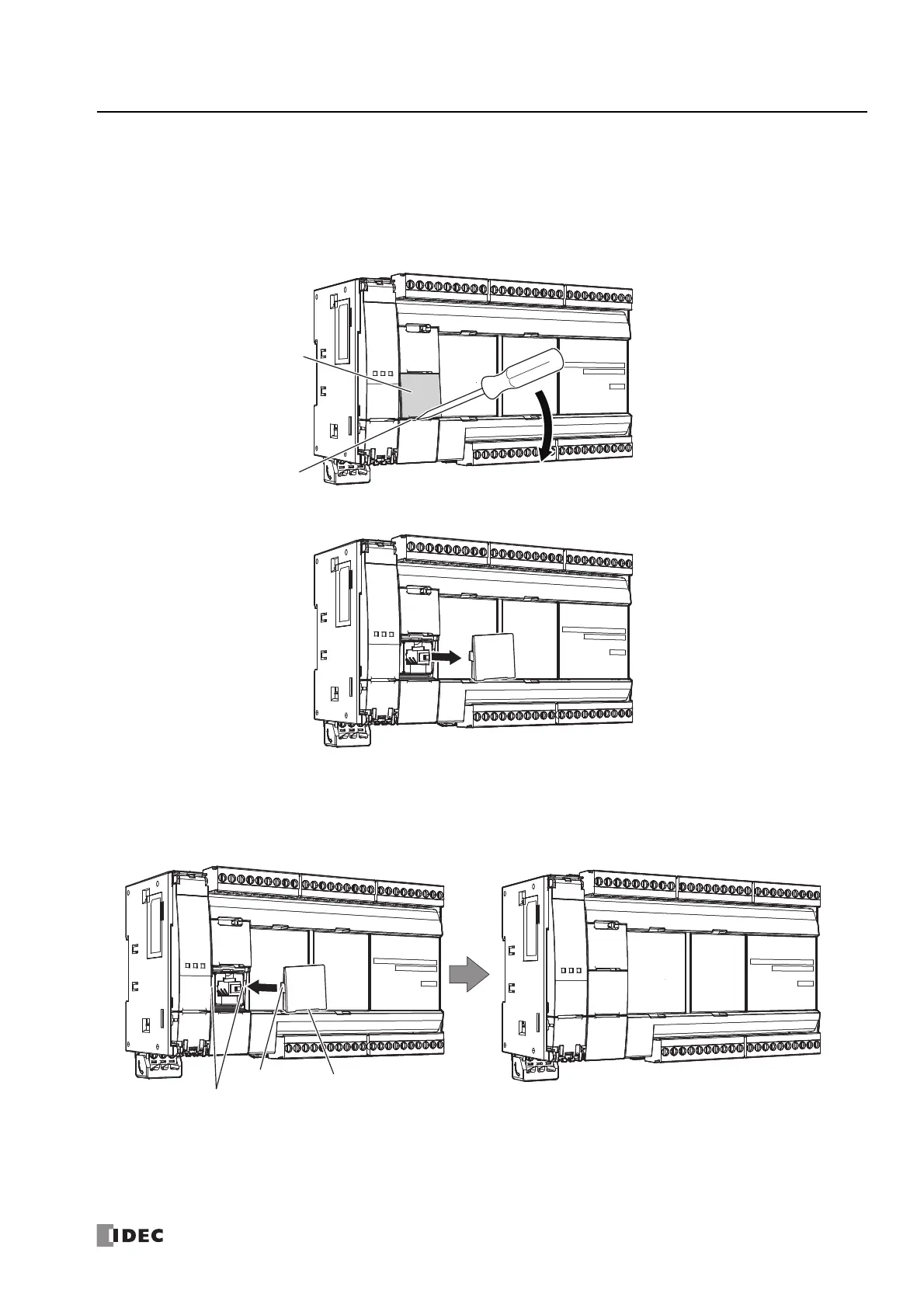

Removing and Attaching the Serial Port 1 Cover
The following procedure describes how to remove and attach the serial port 1 cover.
Removing the Serial Port 1 Cover
1. Insert a flathead screwdriver into the screwdriver slot on the serial port 1 cover and slowly move the screwdriver in the
direction of the arrow to unlock the bottom lock.
2. Lift the serial port 1 cover straight up in the direction of the arrow to remove it.
Attaching the Serial Port 1 Cover
When not using serial port 1, attach the serial port 1 cover.
1. Insert the serial port 1 cover tabs into the grooves on the left and right sides of serial port 1 and push the cover straight in to
attach it.
Note: Take care with the orientation of the serial port 1 cover. The groove to insert the screwdriver goes on the bottom.
Serial Port 1 Cover
Screwdriver Slot
Tab
Screwdriver Slot Groove
Serial Port 1 Groove
To Next Page
