FC6A S ERIES MICROS MART U SER ’ S M ANUAL FC9Y-B1722 13-15
13: T ROUBLESHOOTING

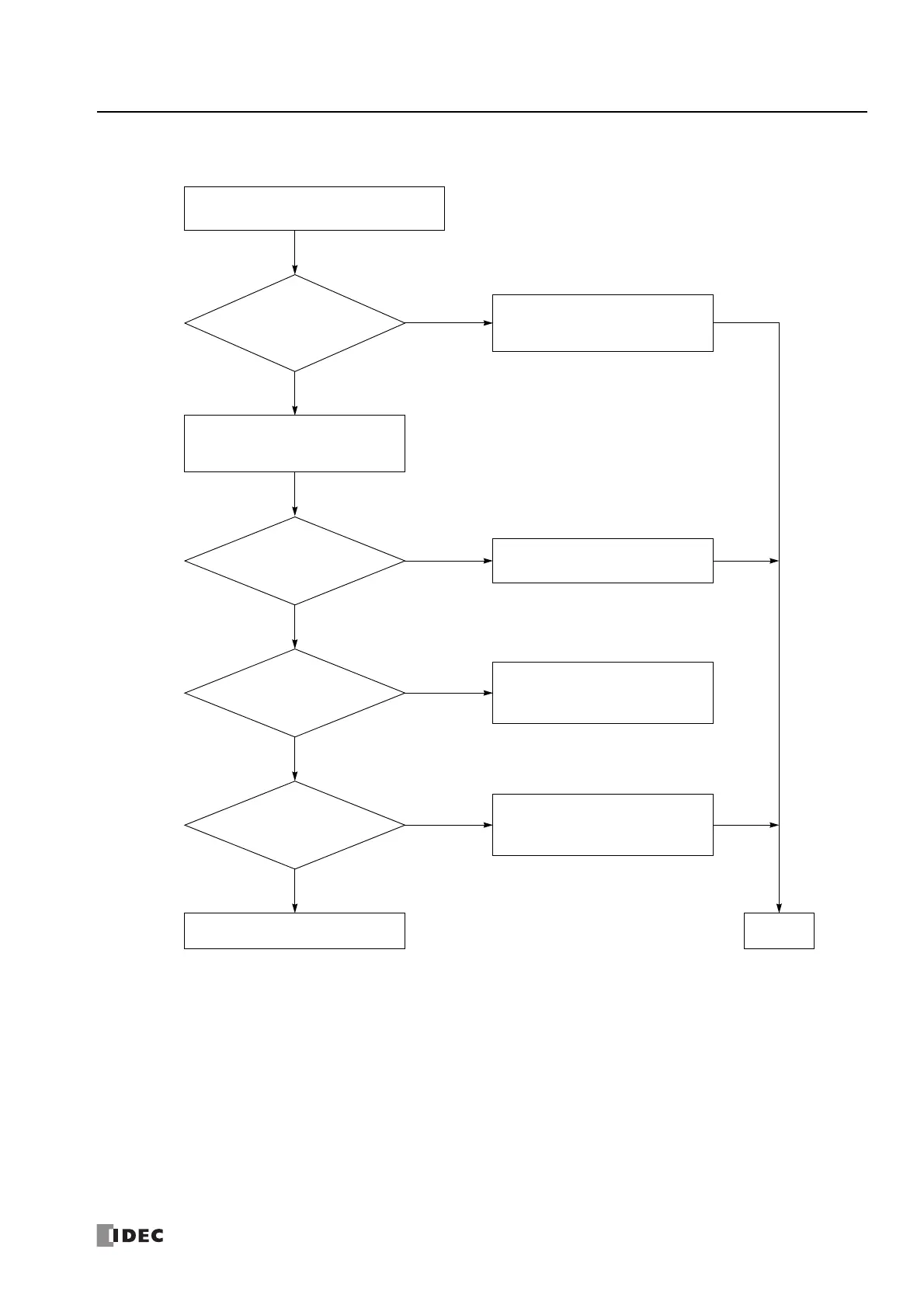

Troubleshooting Diagram 5
Does the monitored output
turn on and off?
NO
YES
YES
Call IDEC for assistance.
NOAre output device
addresses correct?
Correct the program.
The output circuit in the FC6A Series
MICROSmart is damaged.
Replace the FC6A Series MICROSmart.
END
Output does not operate normally.
Check the output with WindLDR.
Click the Start button in WindLDR on a
computer connected to the FC6A Series
MICROSmart.
Note: The Start button is found in the
WindLDR menu bar.
NO
YES
Are the power LED [PWR] and
the run LED [RUN] on?
Is the output
connection correct?
NO
YES
Correctly connect the output.
