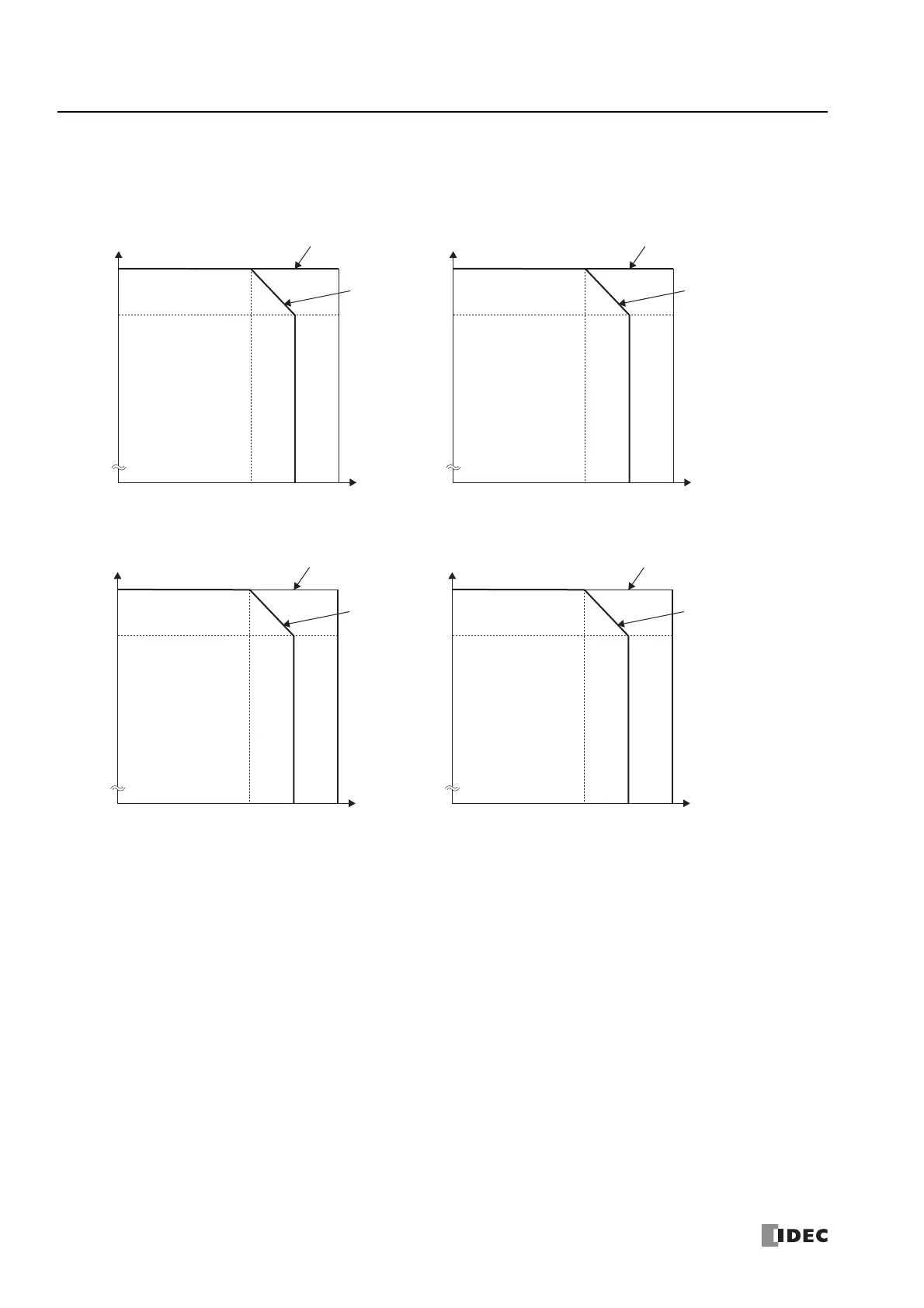

■ Transistor protection source output type
 When the ambient temperature is 55°C or lower and no cartridges are connected, reduce the input voltage, output voltage, and I/O
simultaneous ON ratio as shown in the following diagrams.
24V DC Power Type
12V DC Power Type
*1 The values in parentheses are for the CAN J1939 All-in-One CPU module.
Output I/O
100%80%60%
24.0 V
Output Voltage
28.8 V
Ambient
Temperature 45°C
Ambient
Temperature 55°C
Input I/O
100%80%60%
24.0 V
Input Voltage
28.8 V
Ambient
Temperature 45°C
Ambient
Temperature
55°C
I/O Simultaneous
ON Ratio (%)
0%
0 V
0%
0 V
I/O Simultaneous
ON Ratio (%)
Output I/O
100%80%60%
12.0 V
Output Voltage
18.0 V
(16.0 V )
Ambient
Temperature 45°C
Ambient
Temperature
55°C
Input I/O
100%80%60%
12.0 V
Input Voltage
18.0 V
Ambient
Temperature 45°C
Ambient
Temperature
55°C
I/O Simultaneous
ON Ratio (%)
0%
0 V
0%
0 V
I/O Simultaneous
ON Ratio (%)
*1
