3.2. REMOTE CONTROL
IDEGIS systems have a series of I/O terminals that allow the remote control of the system.

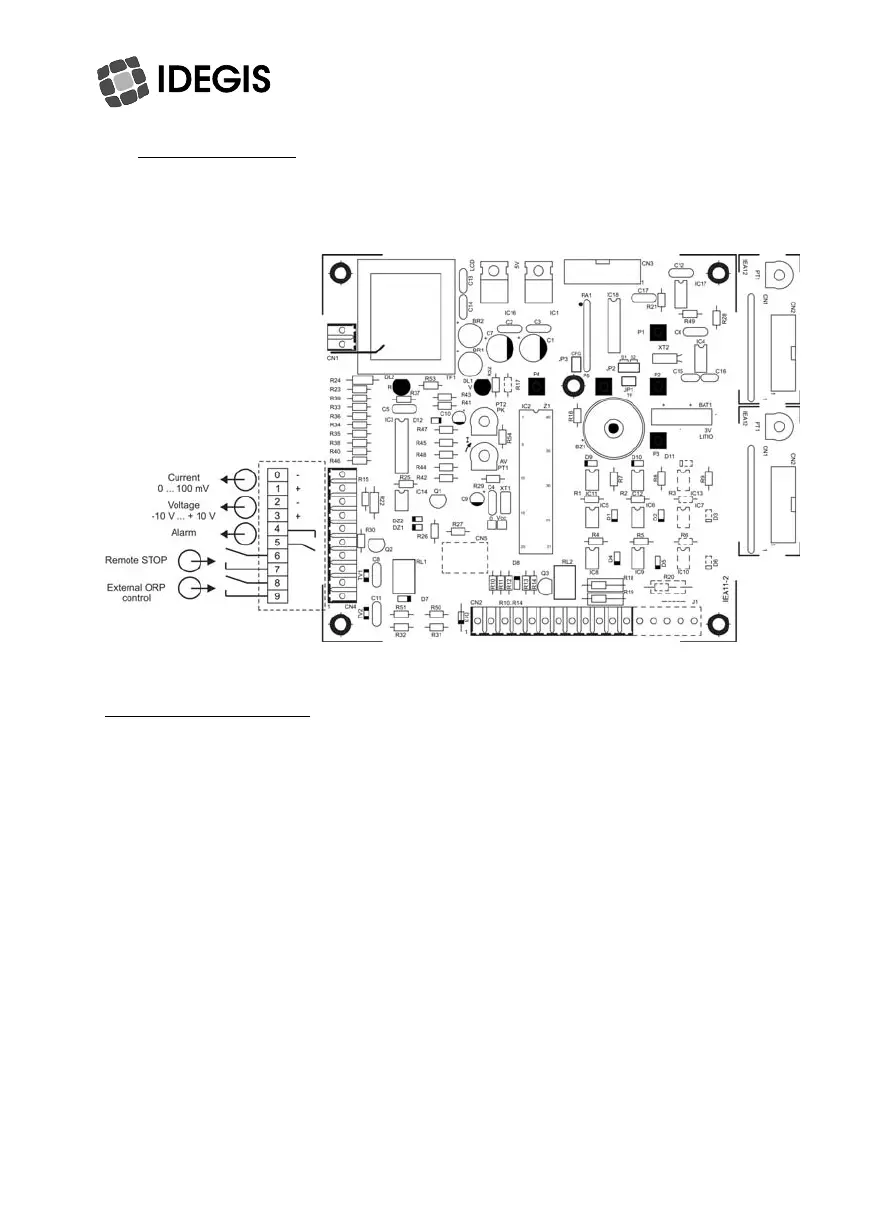

These terminals may be accessed in the system mainboard (see figure below).
TERMINAL DESCRIPTION
0-1 OUTPUT CURRENT
Range: 0-60 mV
(Not isolated)
2-3 OUTPUT VOLTAGE
Range: ± 10 V
(Not isolated)
4-5 ALARM
Type: NO contact
Closed when alarm state is
reached
6-7 REMOTE STOP
CLOSED: system STOPS
8-9 ORP CONTROL
Type: NO contact
OPEN: ORP setpoint level
reached. Electrolysis
system disconnects
