Other configurations would only be acceptable in the case that they allow for detection of gas bubbles when water flow through the cell is too
low.
The electrodes must be inserted in the electrolysis cell, fitting the central electrode through the guides located at the top and bottom of the
cell.

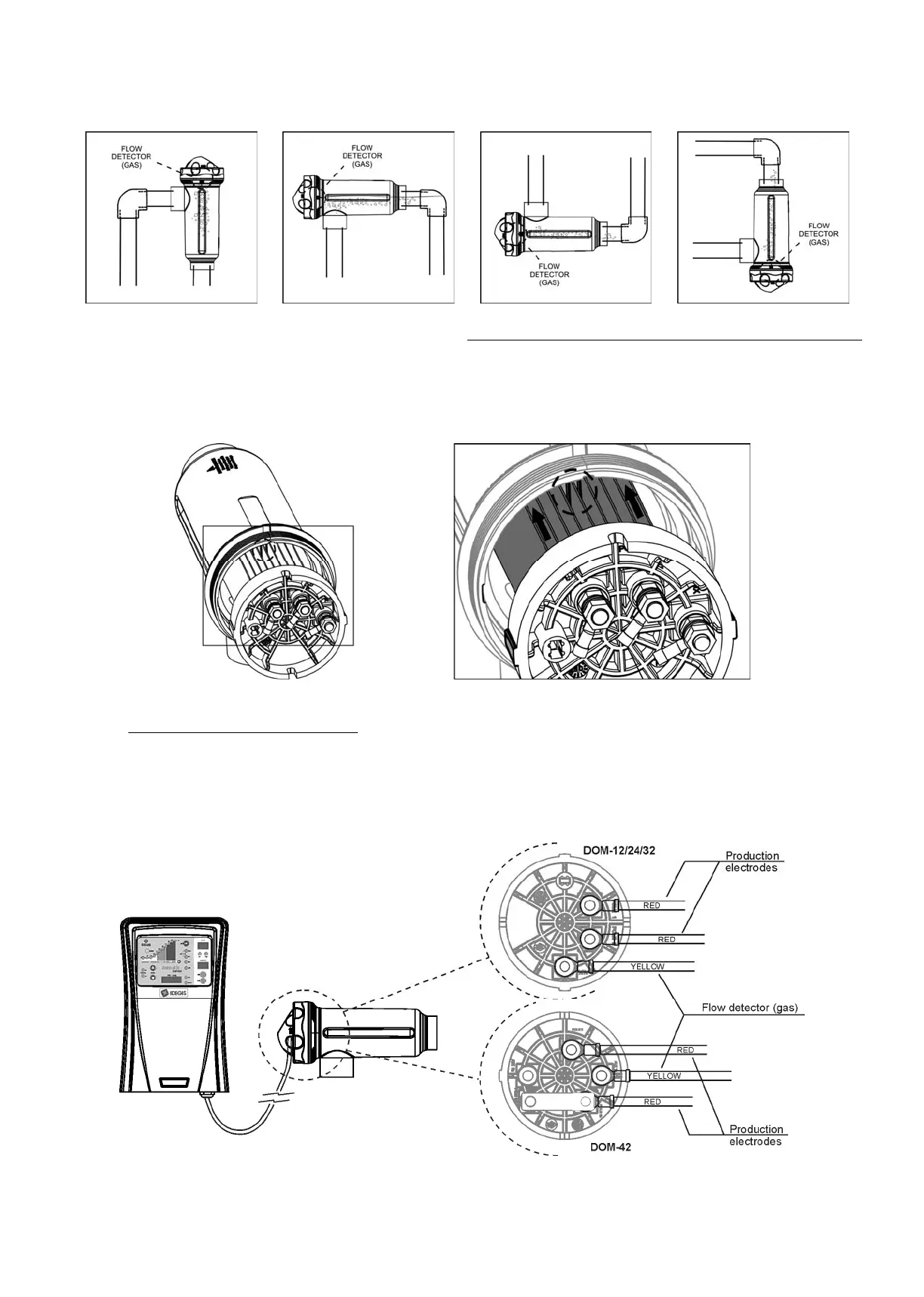

Fig 10
4.3. Electrical connection of the electrolysis cell
Make the interconnection between the electrolysis cell and the power supply according to the following scheme. Due to relatively high current
intensity circulating do not modify or cut either the length or section of the supplied cables without making a previous consultation to an
authorized IDEGIS distributor. The cable connecting the electrolysis cell and the power supply should never exceed the maximum length
recommended in this Manual: DOM-12 (6 A), 7.5 m.; DOM-24 (12 A), 4.0 m.; DOM-32 (16 A), 3.0 m; DOM-42 (7 A), 16.0 m.
Fig.11
Fig. 6 Fig. 7 Fig 8
Fig 9
Recommended installation Allowed installation Not allowed installations
