3.0 Product details
Model Name : uTrust TS keypad
Device Type : RFID reader, 13.56MHz (HF) / 125 KHz (LF), keypad
Physical Access control Reader (accessory equipment)
Type of equipment : Potted Reader, Suitable for Indoor / Controlled Outdoor use
Interface Type : Phoenix connectors and RJ45
Voltage Rating : 5-16V DC (or) 48V DC on RJ45 Connector
Current Rating @12V : Peak Current – 255 mA, Average Current 180 mA
Communication protocol : Wiegand, RS485 (2wire - Half Duplex), 10BaseT ETH
4.0 Specifications
Model
Op Voltage
Current @ 12V
Op temp
Cable Length
8230
uTrust TS
KEYPAD
5-16 VDC or
POE@ 48VDC
Av -180 mA
Pk -255 mA
(-35 to 65 Deg C)
RS485 - 4000ft
Wiegand -500ft (22AWG)
300ft (24AWG)

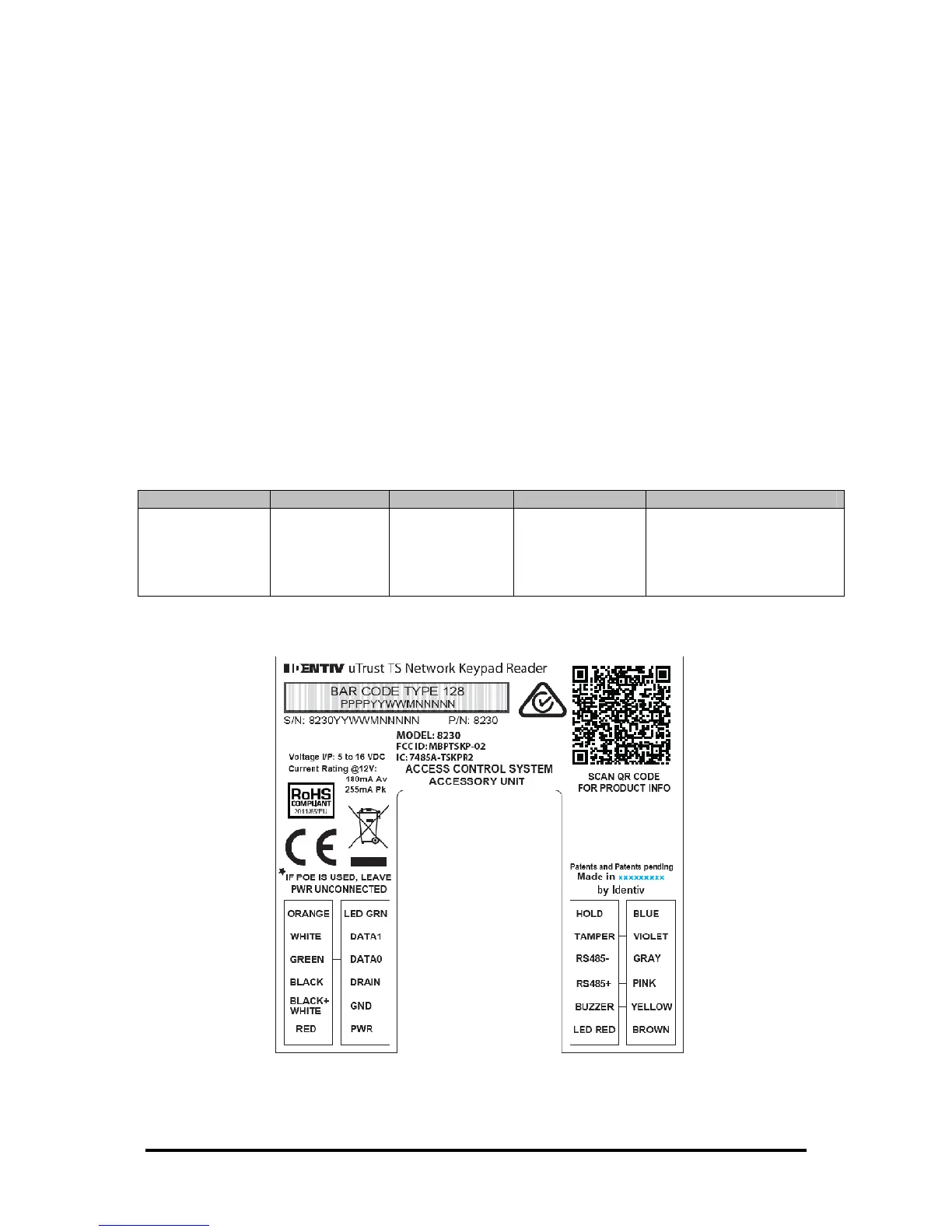

5.0 Label
Caution:
During Wiring make sure that the +VDC lines does not make contact with any other cables, as it might
affect reader functionality/ cause damage to the reader.
