iDevices Wall Switch - Page 29

29

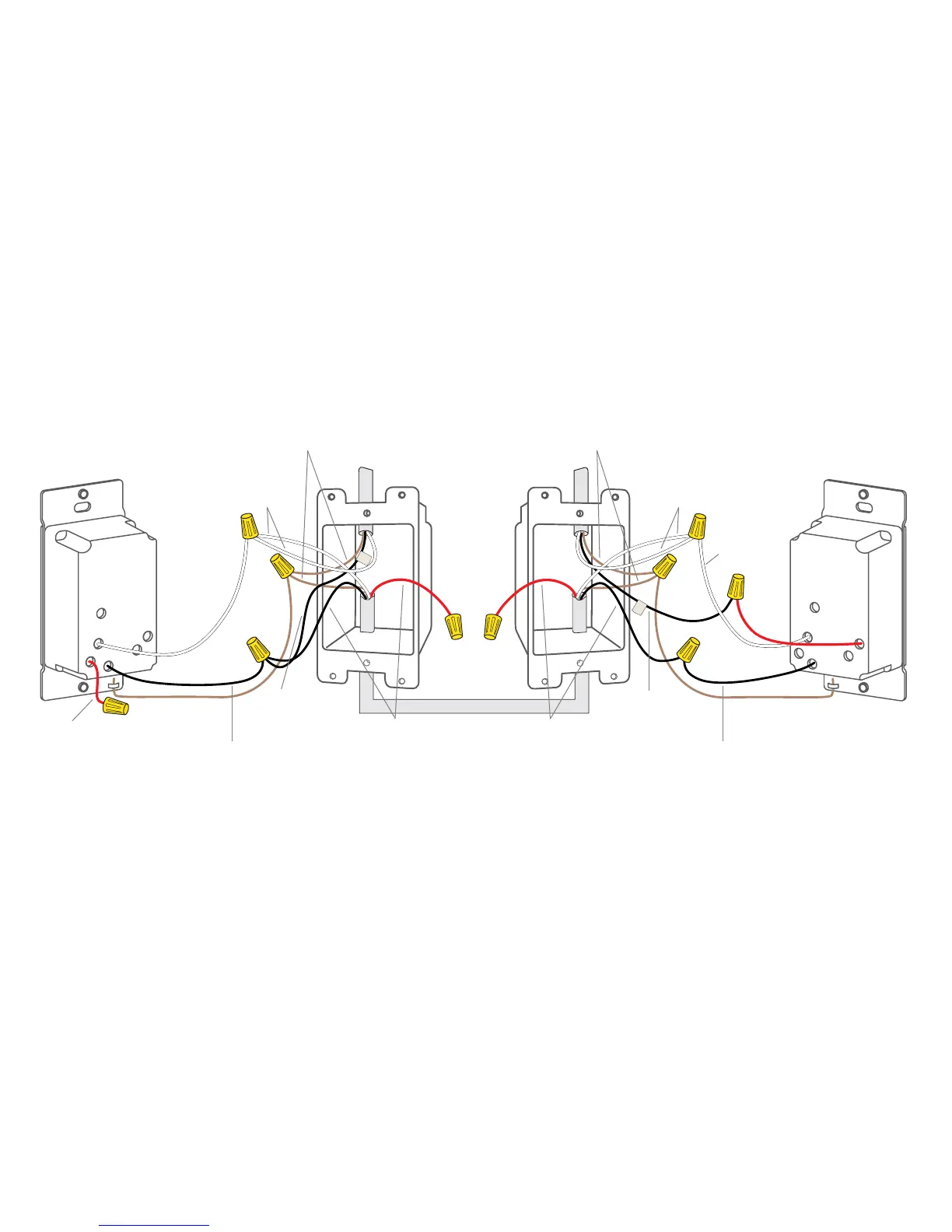

Ensure you install a wire nut on the red wire on the Secondary Switch
as well as on both ends of the unused traveler wire (typically red wire)
S
P
LINE
(Black)
LINE
(Black)
LOAD
(Usually Black)
SECONDARY SWITCH PRIMARY SWITCH
NEUTRAL
(Usually White)
NEUTRAL
(Usually White)
NEUTRAL
(White)
NEUTRAL
(White)
TRAVELER
(Usually Black or Red)
TRAVELER
(Usually Black or Red)
GROUND
(Bare Copper)
GROUND
(Bare Copper)
GROUND
(Usually Bare Copper or Green)
GROUND
(Usually Bare Copper or Green)
LINE
(Usually Black)
LOAD
(Red)
LOAD
(Red)
