10

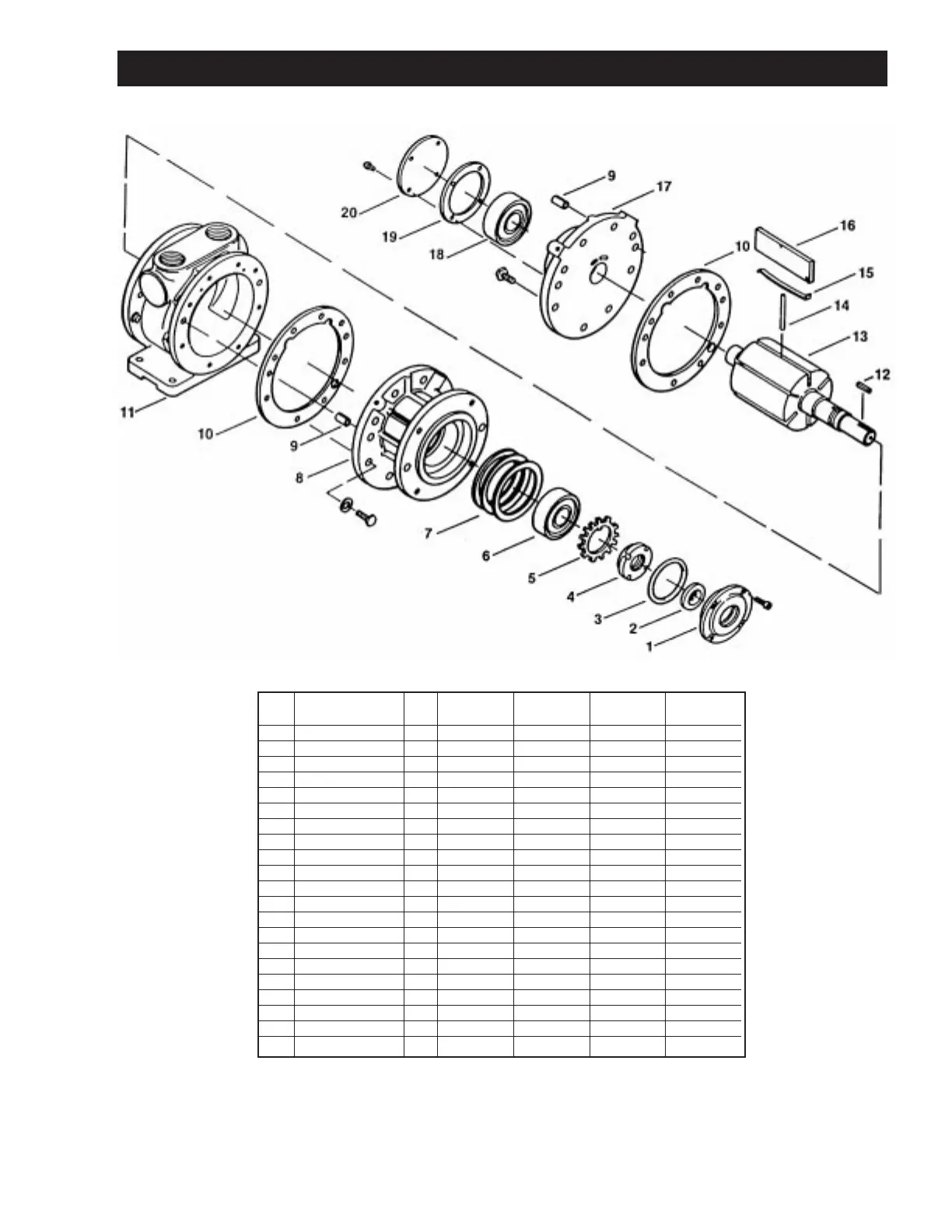

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
*** Item not shown.
∆ Denotes parts included in the Service Kit.
Parts listed are for stock models. For specific OEM models, please consult the factory.
When corresponding or ordering parts, please give complete model and serial numbers.
Exploded views are shown for
reference only. Units may vary
depending upon specific model.
REF# DESCRIPTION QTY 16AM-FCC-2 16AM-FRV-2 16AM-FRV-13 16AM-FCW-28
1 DRIVE END CAP 1 AD816 AD816 AD816 AD816
2 ∆ SEAL 1 AC627 AC627 AC627 AC627
3 ∆ O-RING 1 AD823 AD823 AD823 AD823
4 LOCKNUT 1 AD784 AD784 AD784 AD784
5 ∆ LOCKWASHER 1 AD712 AD712 AD712 AD712
6 ∆ DRIVE END BEARING 1 AB777A AB777A AB777A AB777A
7 SPACER AD786 AD786 AD786 AD786
8 DRIVE END PLATE 1 AD771A AD820A AC323
9 DOWEL PIN 4 AB162A AB162A AB162A AB162A
10 ∆ SPACER GASKET 2 AD788 AD788 AD788
11 BODY 1 AD770 AD819 AD819 AD770B
12 DRIVE KEY 1 AC628 AC628 AB136D AC628
13 ROTOR ASSEMBLY 1 AD775 AD794 AE807
14 ∆ PUSH PIN 3 AD822 AD822
15 ∆ VANE SPRING 6 AD796A AD796A
16 ∆ VANE 6 AD781 AD795 AD795 AD781
17 DEAD END PLATE 1 AD773A AD821A AD821A
18 DEAD END BEARING 1 AD802 AD802 AD802 AD802
19 END CAP GASKET 1 AG406 AG406 AG406 AG406
20 DEAD END CAP 1 AG405 AG405 AD405 AG405
*** SERVICE KIT 1 K212 K213 K213 K212
16AM SERIES
