Idex Gast 2AM Series User Manual

12
REF# DESCRIPTION QTY PART
NO.
1 GEAR HOUSING 1 AC737
2 GEAR HOUSING COVER 1 AC736
3 GEAR SHAFT 1 AC739
4 CLUSTER GEAR 1 AC738
5 SNAP-RING 1 AE189
6 BEARING 1 AE196A
7 SEAL 1 AA517A
8 BEARING 1 AA498
9 BEARING 1 AE195
10 O-RING 1 AD823
11 BEARING 1 AE197
12 SEAL 1 AA623D
13 SCREWS 4 BB542
14 PIPE PLUG 2 BA500
15 SET SCREW 2 BB626
*** DOWEL PIN 2 AE882
GR11 SERIES

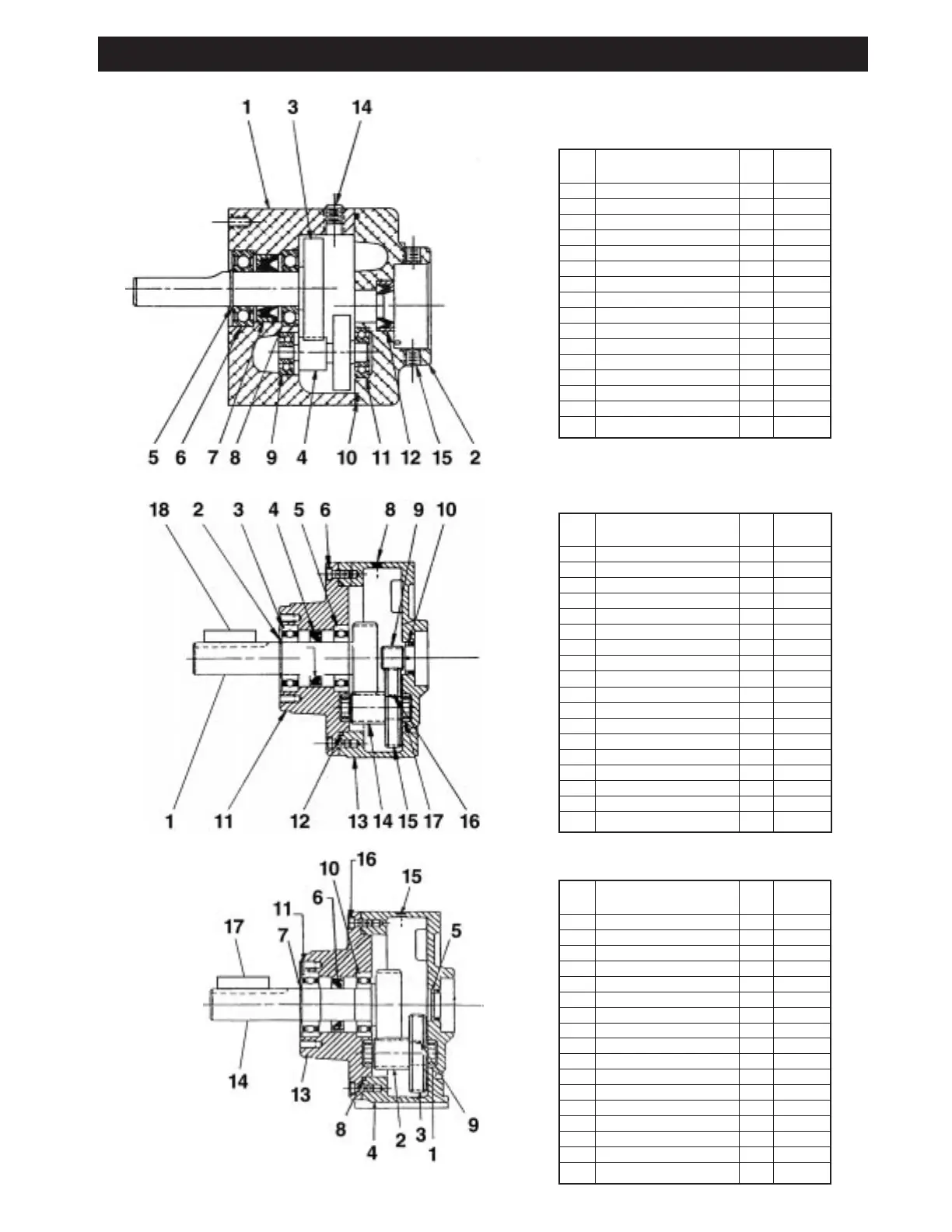

EXPLODED PRODUCT VIEWS, PARTS & ORDERING INFORMATION
REF# DESCRIPTION QTY PART
NO.
1 GEAR SHAFT - OUTPUT 1 AE848
2 RETAINING RING 1 AE853
3 BEARING 1 AE858
4 OIL SEAL 1 AE852
5 BEARING 1 AE857
6 SCREW 6 BB652
*** DOWEL PIN 2 AF482
8 MAGNETIC DRAIN PLUG 2 AH471
9 GEAR - INPUT 1 AA294
10 OIL SEAL 1 AE851
11 HOUSING COVER 1 AE849
12 O-RING 1 AE854
13 GEAR HOUSING 1 AE850
14 GEAR SHAFT 1 AE845
15 GEAR - INTERMEDIATE 1 AE846
16 KEY 1 AE855
17 BEARING 2 AG549
18 KEY 1 AC628
GR20 SERIES
REF# DESCRIPTION QTY PART
NO.
1 BEARING 2 AG549
2 GEAR SHAFT 1 AE845
3 GEAR INTERMEDIATE 1 AE846
4 GEAR HOUSING 1 AE850
5 SEAL 1 AE851
6 SEAL 1 AE852
7 RETAINING RING 1 AE853
8 O-RING 1 AE854
9 KEY 1 AE855
10 BEARING 1 AE857
11 BEARING 1 AE858
*** DOWEL PIN 2 AF482
13 HOUSING COVER 1 AH278
14 GEAR SHAFT - OUTPUT 1 AH279
15 MAGNETIC DRAIN PLUG 2 AH471
16 SCREWS 6 BB652
17 KEY 1 AC628
GR25 SERIES
*** Item not shown.
