ASSEMBLY PROCEDURE
The procedure to assemble the C-Thrue is straightforward and can be
performed by one person.
To assemble the system the User should follow these steps:

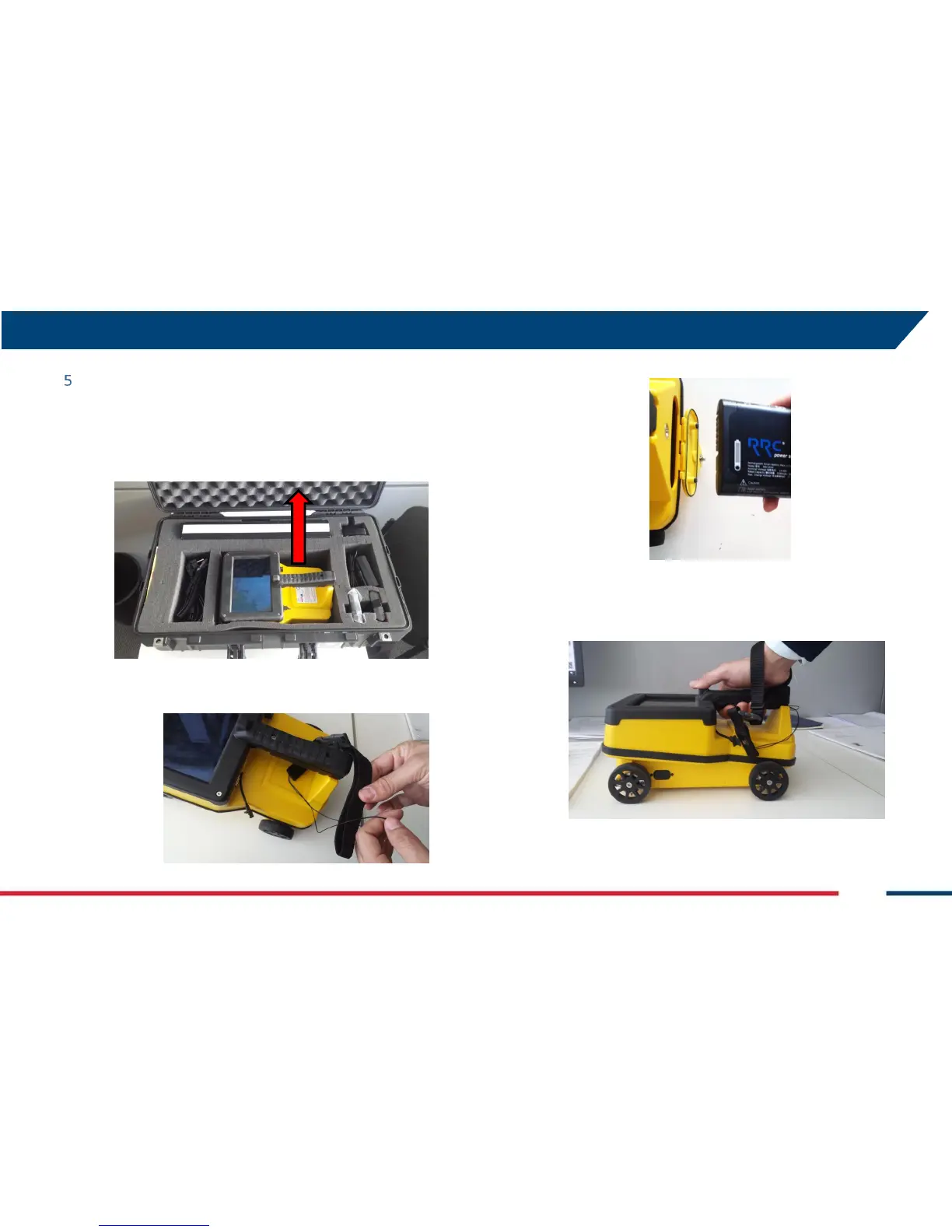

1. removing the radar main body from the luggage, Fig. 21;
Fig. 21 the system and its luggage
2. Fixing the safety lace to the system, Fig. 22;
Fig. 22 the safety lace
3. Inserting the battery, Fig. 23;
Fig. 23 the battery case
4. Mounting the telescopic rod support (optional)
5. Wearing the safety lace to the wrist, Fig. 24;
Fig. 24 wearing the safety lace
