G-26c/GCG-26c

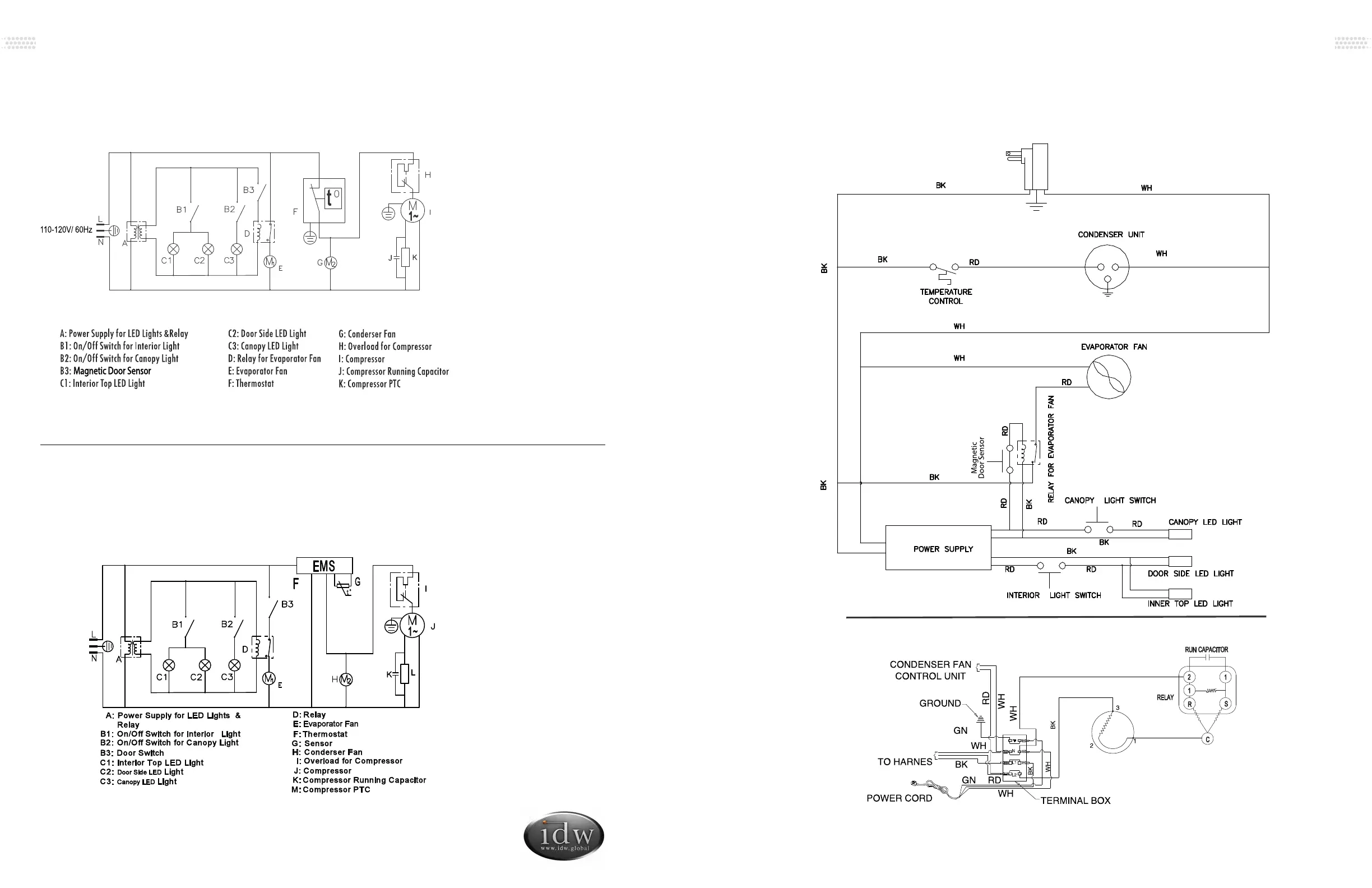

CIRCUIT DIAGRAM (G-26C)

FOR MODELS: G-26-C334B, G-26-CB334B, G-26-CP334B, G-26-CW334B, G-26-C334B-HC, G-26-CP334B-HC

CIRCUIT DIAGRAM (G-26C (K))

FOR MODELS: G-26-CB934B, G-26-CP934B, G-26-CW934B, G-26-CZ934B, G-26-C934B-HC, G-26-CP934B-HC,

G-26-CZ934B-HC, G-26-CB934B-HC, G-26-CW934B-HC

ELECTRICAL WIRING DIAGRAM (G-26C)

FOR MODELS: G-26-C334B, G-26-CB334B, G-26-CP334B, G-26-CW334B, G-26-C334B-HC, G-26-CP334B-HC
