G-10f/GCG-10f
16
GCG-10f

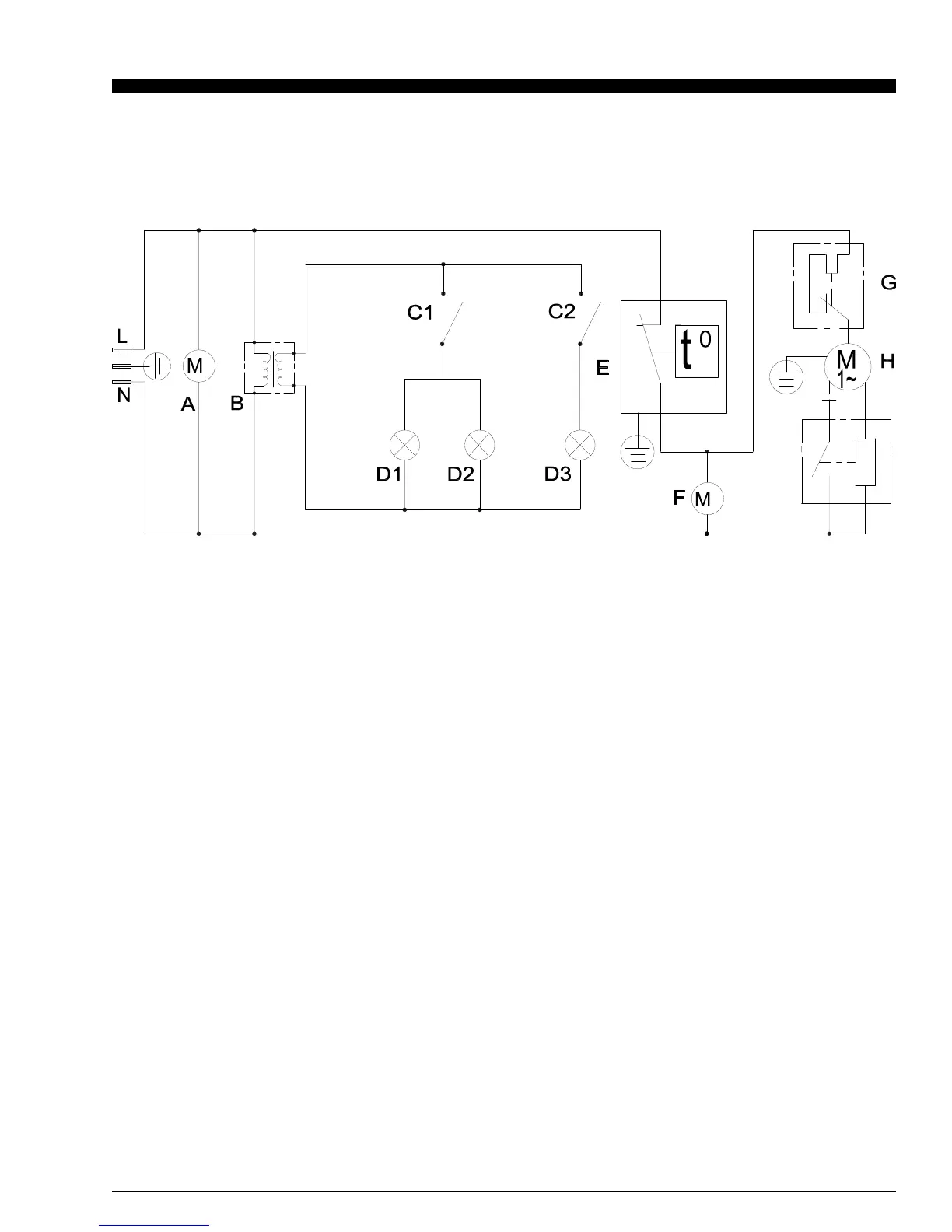

CIR
CUIT DIAGRAM
A:EvaporatorFan
E:Thermostat
B:T
ransformerforallLights
F:CondenserFan
C1:On/OffSwitchforInteriorLight
G:Overload
C2:On/OffSwitchforLitDoorLogoLight
H:Compressor
D1:InteriorT
opLEDLight
I:StartCapacitor
D2:DoorSideLEDLight
J:Relay
D3:LogoLEDLight
I
2
1
J
16
18
