Parameter
Values
Description
BL 46 AVR
Parameter to select for a BL46 with automatic opening of the
arm in case of power cut.
Arm Length
Specification of the arm mounted on the barrier; this allows
the program to automatically modify the opening and closing
curves.
If the selected length does not correspond to a standard for
the barrier selected in the Barrier Type parameter, the
message Doesn't Exist appears briefly.

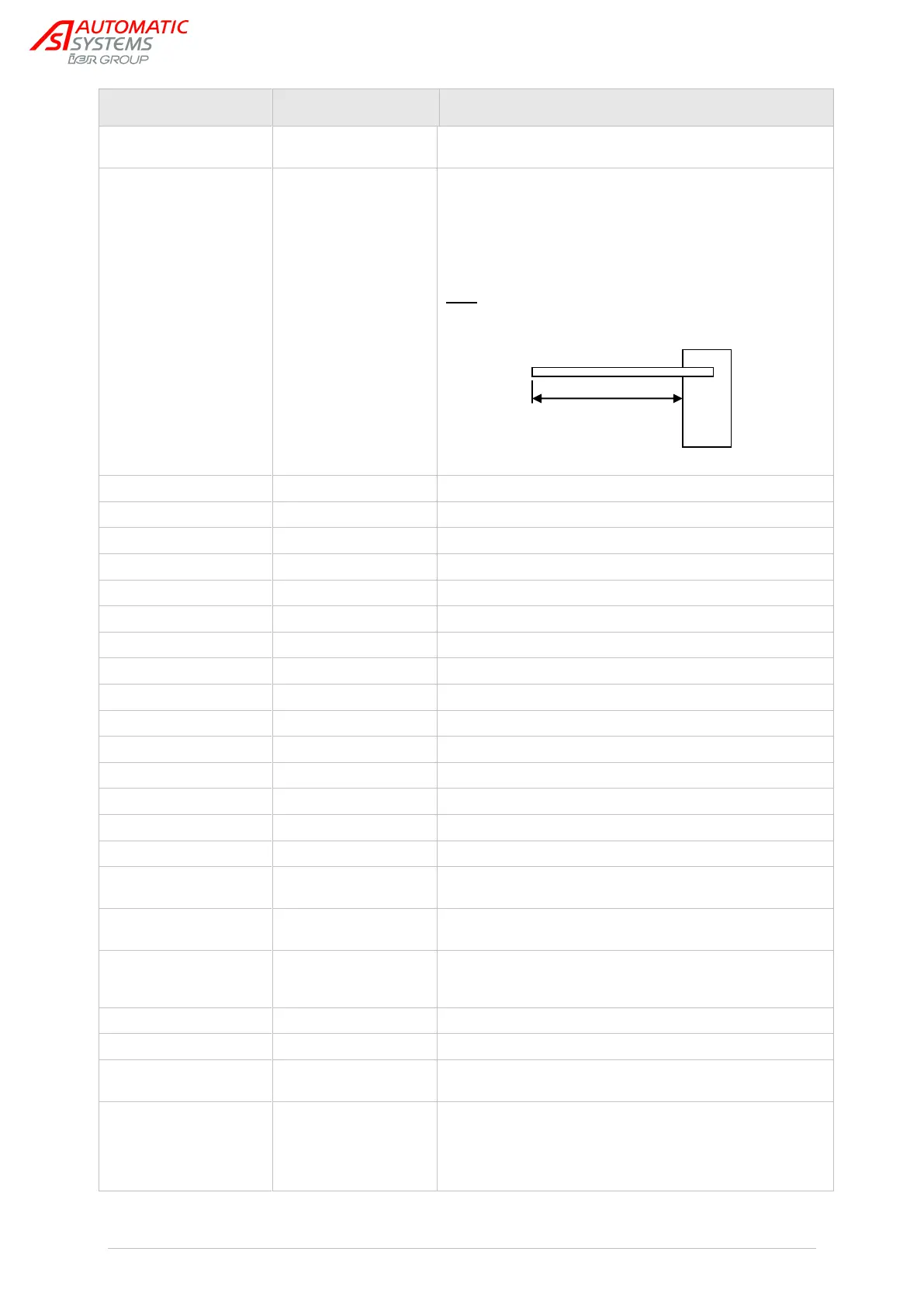

Note: arm length = free passage = distance between the
arm tip and the barrier housing.
2m00
Select this for a BL4x or BL229 with an arm of 2 m.
2m50
Select this for a BL4x or BL229 with an arm of 2.5 m.
3m00
Select this for a BL4x or BL229 with an arm of 3 m.
3m50
Select this for a BL4x or BL229 with an arm of 3.5 m.
4m00
Select this for a BL4x or BL229 with an arm of 4 m.
4m50
Select this for a BL4x or BL229 with an arm of 4.5 m.
5m00 (by default)
Select this for a BL4x or BL229 with an arm of 5 m.
5m50
Select this for a BL4x or BL229 with an arm of 5.5 m.
6m00
Select this for a BL4x or BL229 with an arm of 6 m.
7m00
Select this for a BL4x with an arm of 6,5 or 7 m.
8m00
Select this for a BL4x with an arm of 7,5 or 8 m.
9m00
Select this for a BL4x with an arm of 8,5 or 9 m.
10m00
Select this for a BL4x with an arm of 9,5 or 10 m.
11m00
Select this for a BL4x with an arm of 10,5 or 11 m.
12m00
Select this for a BL4x with an arm of 11,5 or 12 m.
Non-modifiable
Message displayed when the Barrier Type parameter does
not allow any modification of the arm length.
Incompatible
Message displayed when the selected Arm Length is not
compatible with the selected Barrier Type.
Arm Type
Specification of the type of arm assembled on the barrier.
This parameter only applies to the BL 229 Highway and is
not taken into account for other types of equipment.
Aluminium (default)
Aluminium arm.
Carbon
Carbon arm.
Non-modifiable
Message displayed for the equipments different than BL229
Highway.
Power Fail OP
Choice
(*)
of mode for unlocking the obstacle during a loss of
supply voltage.
(*)
Except for BL4x, where this parameter is automatically set
to ON and not adjustable.
Arm length
