BL5x-MT-EN-13 page 32/56
Table of segments of BL52 arms and position of shrouds
Arm length (from)
Segment length
Position
1
2
3
x
8.00m
3.00m
3.00m
2.30m
0
9.00m
3.00m
3.00m
3.30m
0
10.00m
3.00m
4.00m
3.30m
0
11.00m
3.00m
4.00m
4.30m
0
12.00m
4.00m
4.50m
3.80m
0
13.00m
4.00m
4.50m
4.80m
1.00m
14.00m
5.00m
4.50m
4.80m
1.20m

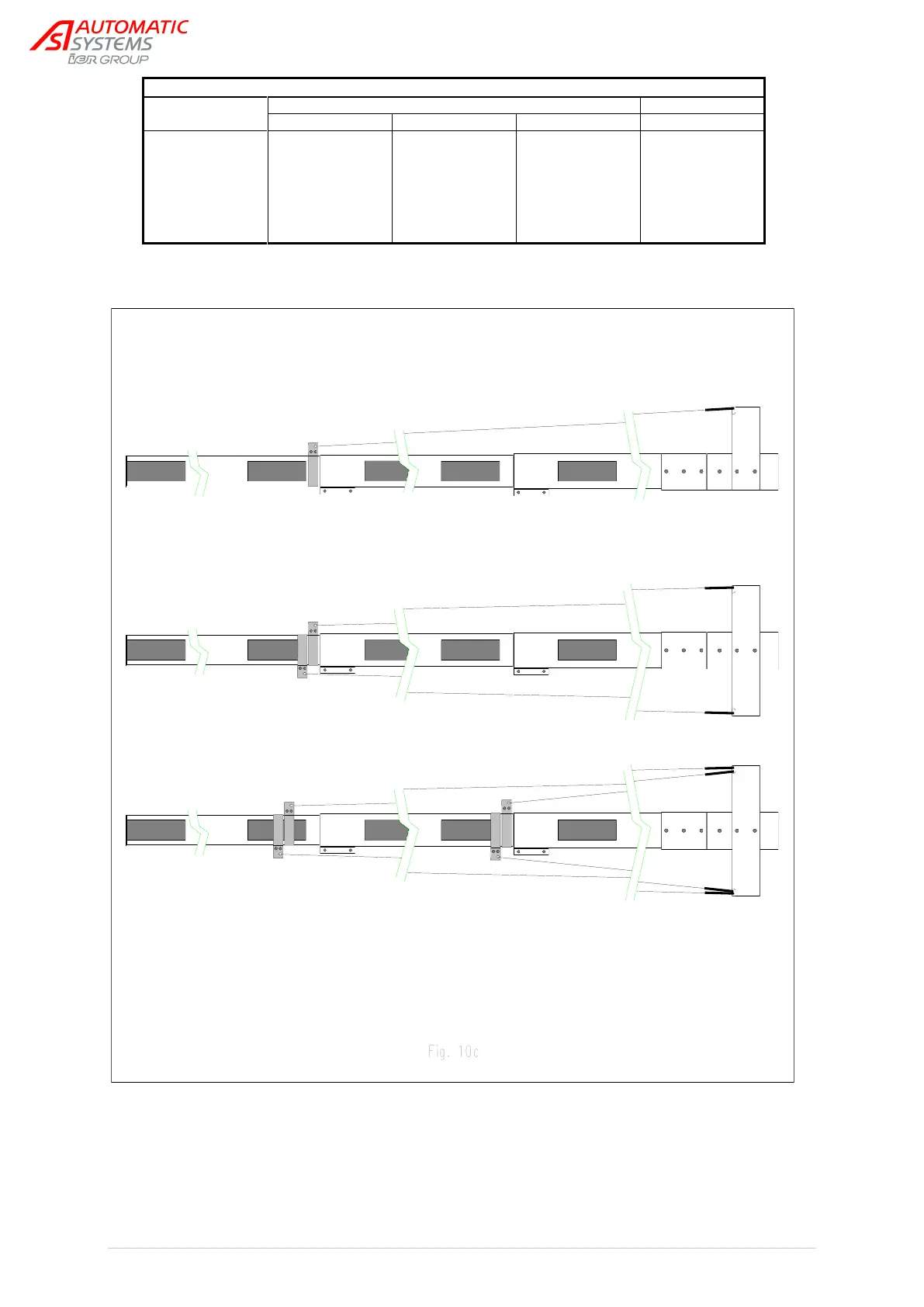

BL52 shroud structure (round arm)
1st segment ø 100mm
Arm length up to 11.00m
Arm length from 11.01m up to 12.00m
Arm length from 12.01m up to 14.00m
2nd segment ø 90mm
3rd segment ø 84mm
