14
27
63
39
14

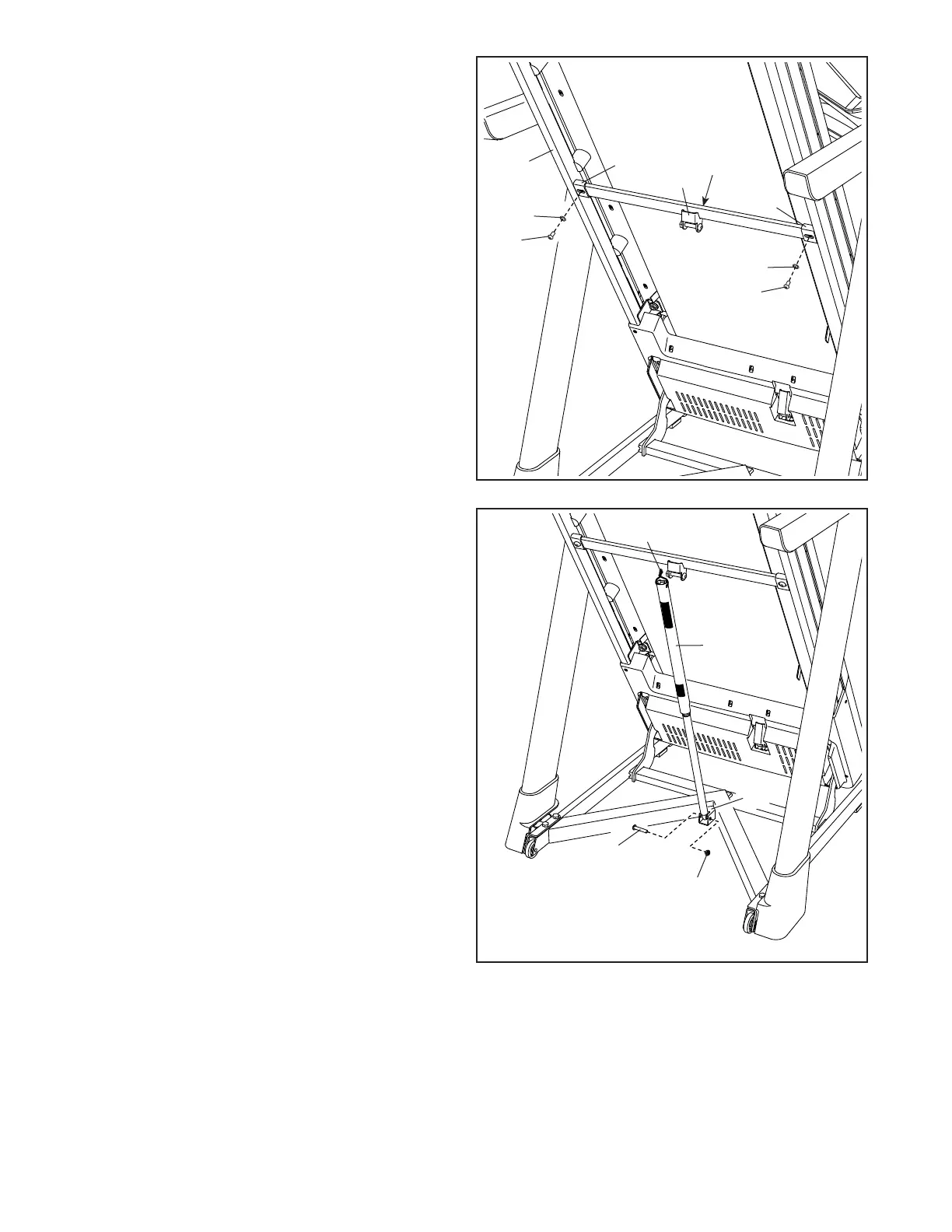

14. Remove the 5/16" Nut (39) and the 5/16" x 1 3/4"
Bolt (27) from the Base (96).
Next, orient the Storage Latch (63) as shown
and attach it to the bracket on the Base (96) with
the 5/16" x 1 3/4" Bolt (27) and the 5/16" Nut
(39).
Then, raise the Storage Latch (63) to a vertical
position, and remove the tie (K).
K
13
13. Note: If the treadmill is assembled on a
smooth surface, it may roll forward as you do
this step.
Remove the two 5/16" x 3/4" Screws (20)
from the Latch Crossbar (59). Note: The Latch
Crossbar is not preattached to the treadmill.
Next, raise the Frame (64) to the upright posi-
tion. Have a second person hold the Frame
until step 15 is completed.
Orient the Latch Crossbar (59) as shown. Make
sure that the “This side toward belt” sticker
(I) is facing the treadmill. Attach the Latch
Crossbar to the brackets (J) on the Frame (64)
with the two 5/16" x 3/4" Screws (20) that you
just removed and two 5/16" Star Washers (10).
64
59
I
J
J
20
20
10
10
96
