iFix RT809 Series - Reading Data

2. The flat cable must be cut and plugged as requested,if it isn’t clear enough,there are
high-definition photo in BBS to be referred;
3. If 8585 and 8586 can’t be read,please ground the 100pin of the chip.
4. Choose the right type and set the right line sequence,then click “Read” and charge the
mainbaord ;
5. Some boards fail in connecting,please interrupt the charge and connect again,this kind of chip
need to catch the ISP ENTER signal when power on.

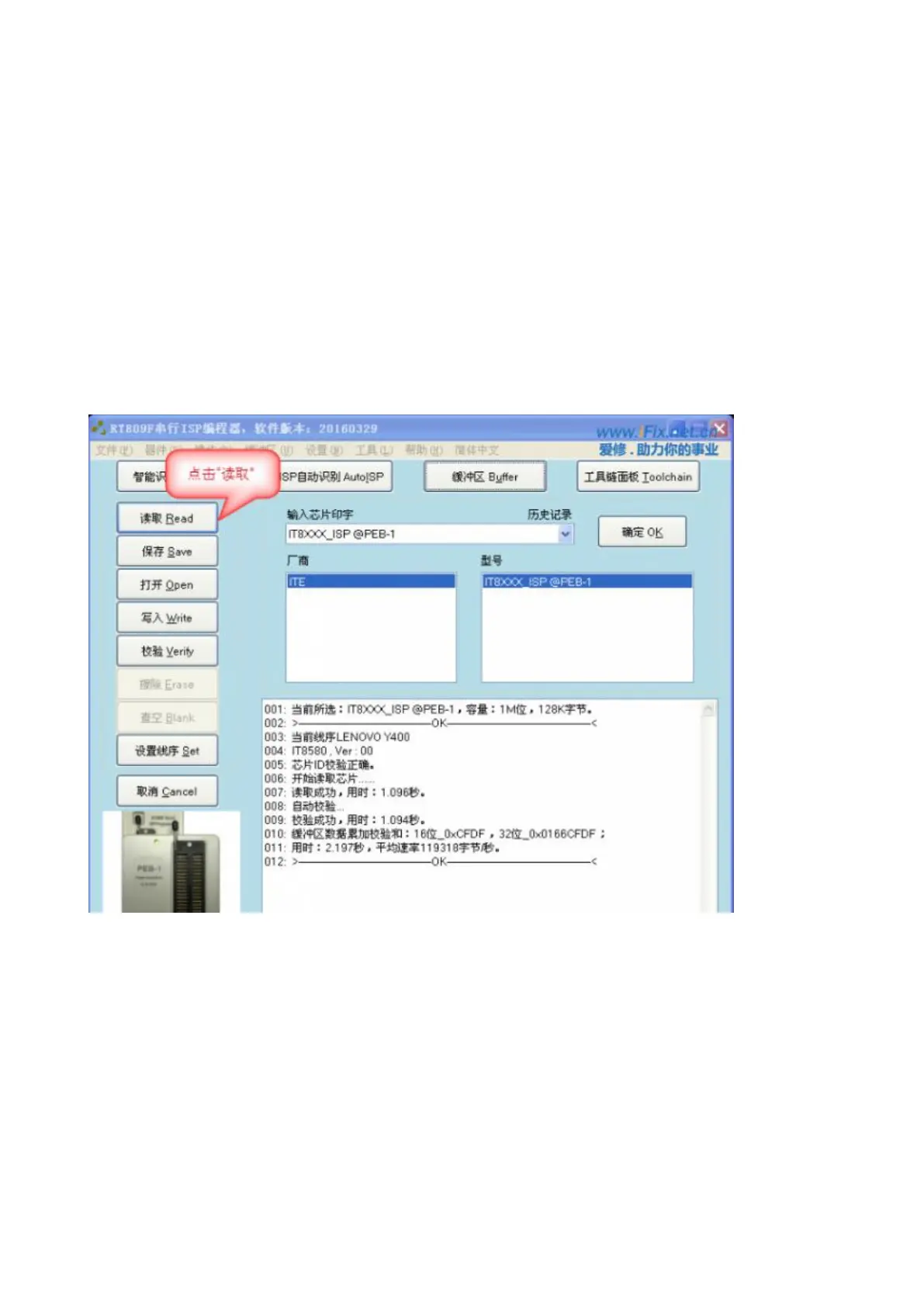

4.6.1 Reading data
 Charge the mainboard after clicking “Read”;
 Then click “Save”;
