iFix RT809 Series - Left Lateral View; Port Instruction; Programmer Packing; Right Lateral View

 Left lateral view
 Right lateral view

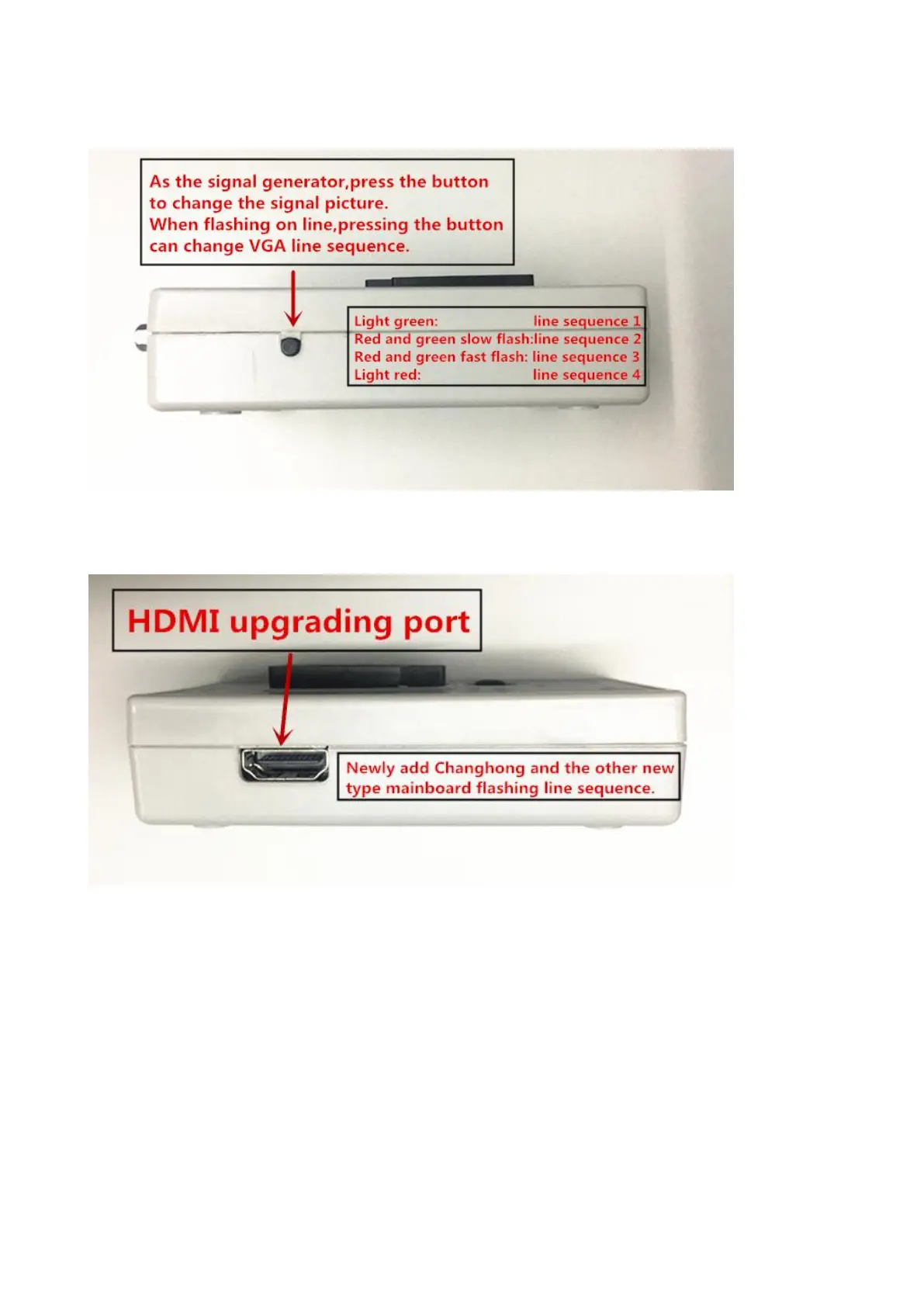

 Port instruction
“VGA ISP” can be used as VGA signal output,be connected with the VGA port of the board when
flashing.
“VGA IN” is the VGA signal input,can be connected with the computer graphics.
When unconnected,VGA ISP will output the VGA signal produced by itself;
When connected,VGA ISP output the computer graphics signal;
“HDMI” Digital high-definition interface”can connect with the HMDI port of the flashing board.
1.1.6 Programmer Packing
