Rev. 1.0 Page 17

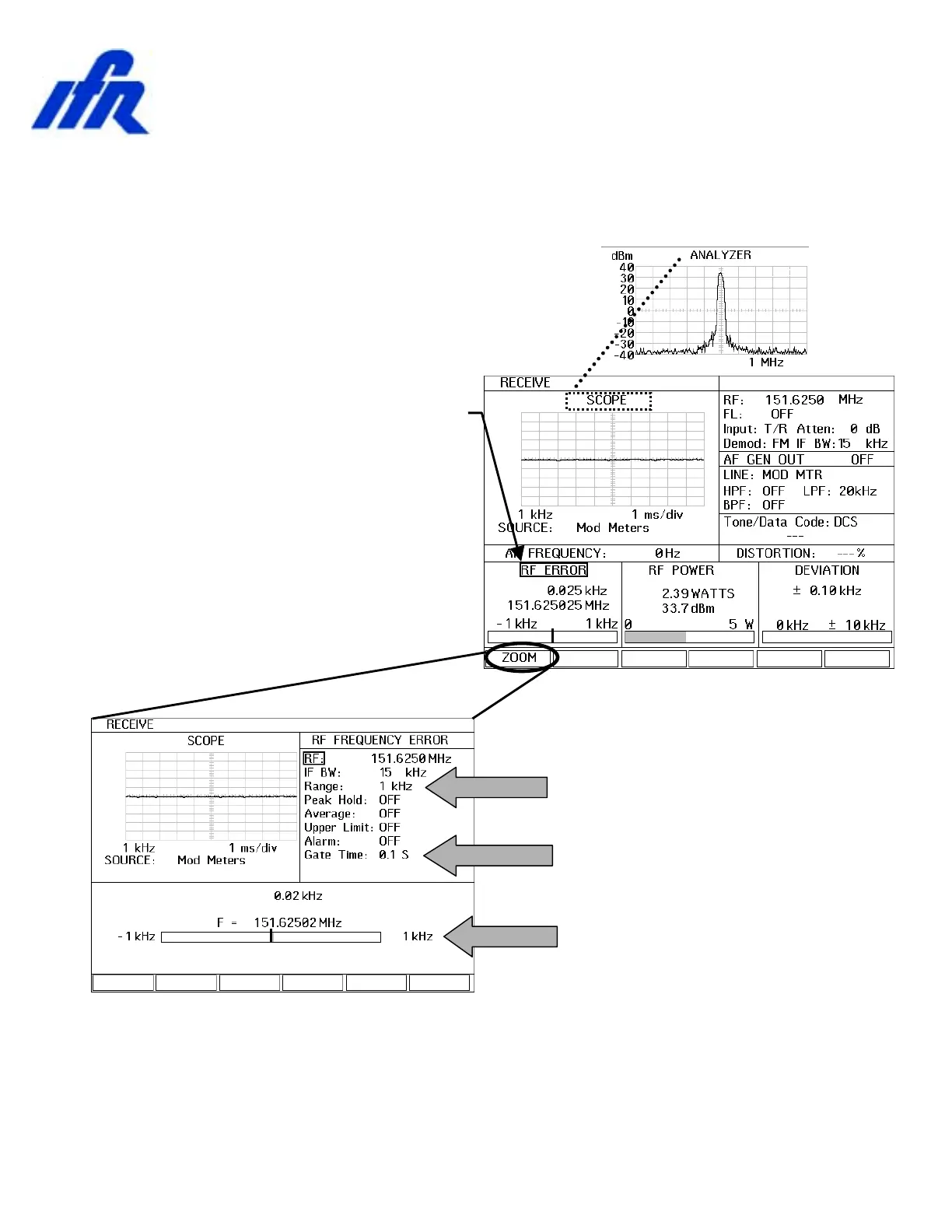

TX Frequency Tuning
Either the Scope or Spectrum Analyzer can
be viewed by positioning the cursor to the
SCOPE or ANALYZER field and selecting the
desired display with the F2 key.
TX Frequency can be tuned by
positioning the cursor to the RF
ERROR label and pressing the
F1 key “ZOOM” to expand the
meter to full screen mode.
(Remember the TAB key)
Frequency tuning can be
easily done by setting the
Range to a fixed range.
Set the Gate time to 0.1 S to
take fast readings.
Use the bar graph meter to
align transmitter frequency.
Note: Frequency tuning can be simulated by moving the
cursor to the RF field and adjusting the last digit with the
DATA SCROLL Knob.
