3.2 Identification plate/ Marking

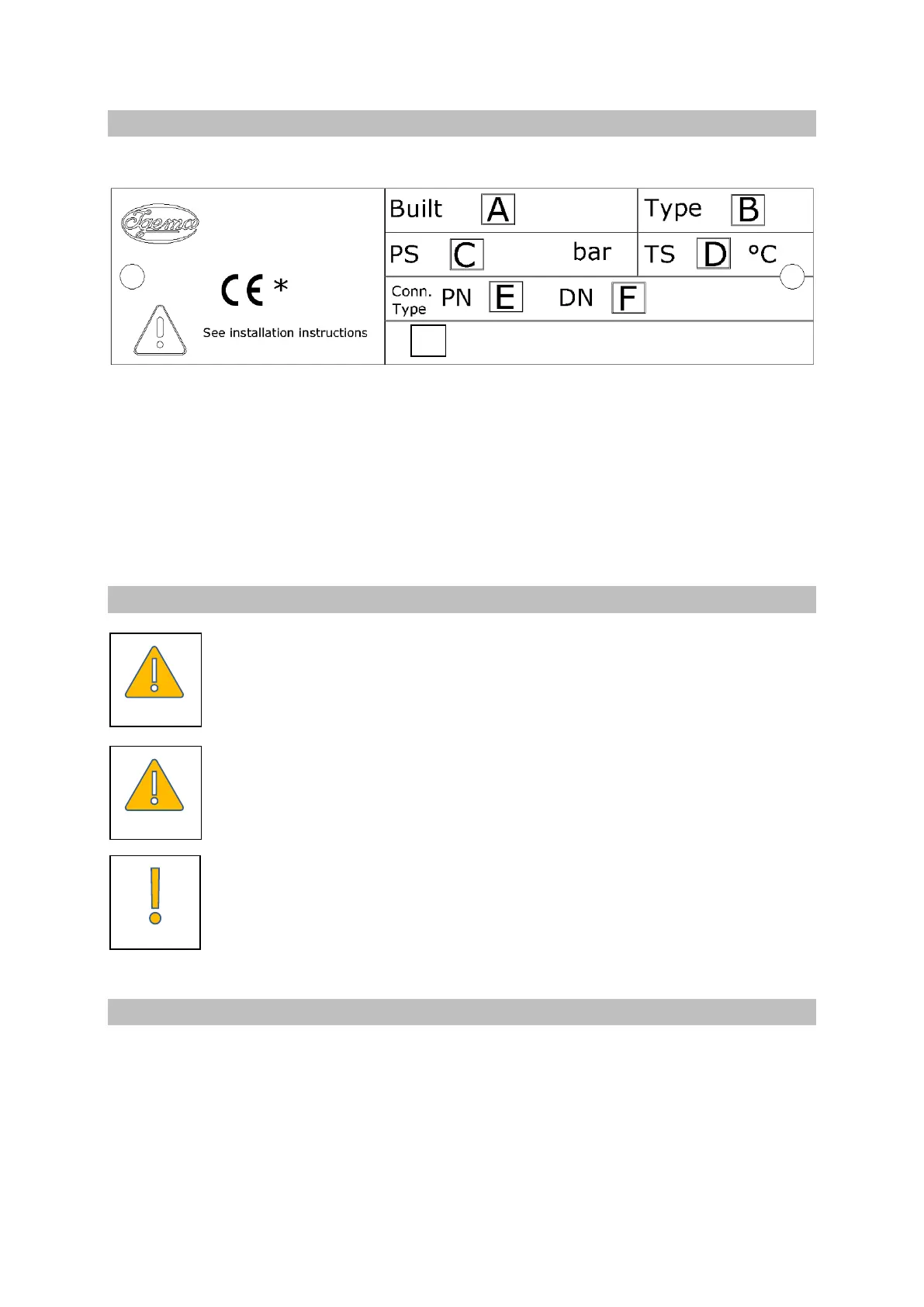

The following data are indicated on the identification plate:
* marking depending on the realization
A - Date of manufacture + order number
B - Type of unit
C - Max. all. pressure
D - Max. all. temperature
E - Nominal pressure (not listed)
F - Nominal diameter
G - TAG-no. (Optional)
3.3 Intended use
The direct water level gauge is for measurement and control purposes and
must only be used to display fill levels on a tank. Here care must be taken
that pressure and temperature do not exceed the maximum limitations of
use. These can be found on the identification plate.
The operator of the direct water level gauge is responsible for the intended
use of the indicator.
With the “offset” version adequate support (e.g. by spring suspension
elements etc.) must be provided to the device at the customer’s premises.
This can be fastened to the “transport unit”.
3.4 Function description
The transparent level gauge, in different versions, is used to detect the liquid level of tanks
and steam generators. The level gauge works according to the physical principle of
communicating tubes. The liquid level is visible through the rear lighting in the viewing
opening.
