iGen LP-2 - Page 8

User Manual

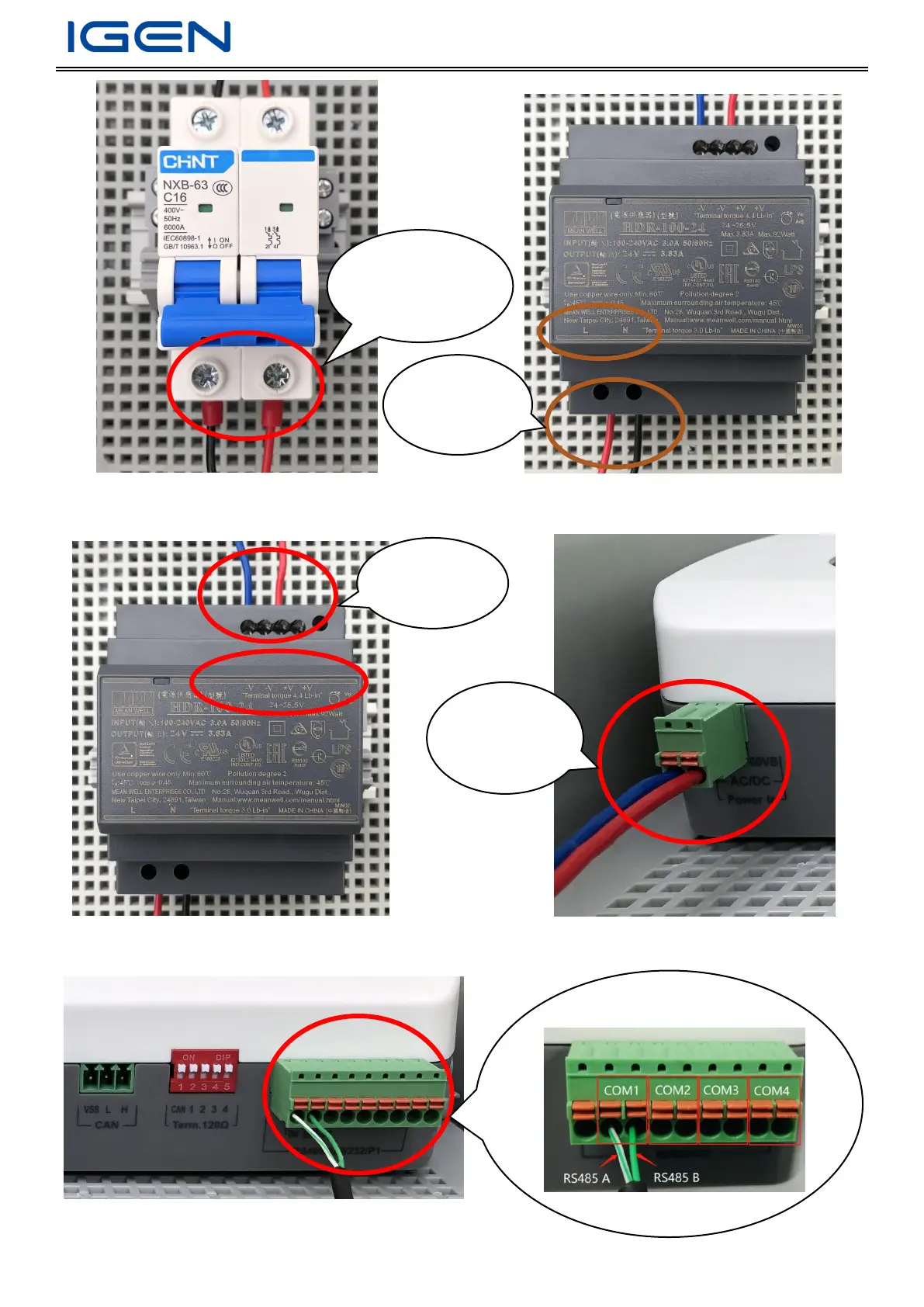

Step 2: Connect power output of power module (V+ and V-) and power input of LP-2 via cable
Step 3: Connect RS485 interface according to actual situation (One 485 interface can connect to 32 devices at max.)
Step 4: Connect the Ethernet cable to LP-2 (please use shielded twisted pair or above)
Air Switch AC
Output
L N
Power AC
Input
-V -V +V +V
Power DC
Output
LP-2 DC
Input
