Changing the Drive Belt
Check the drive belt carefully for wear, cuts and stressed areas. If the drive belt
appears worn, you will need to replace it.

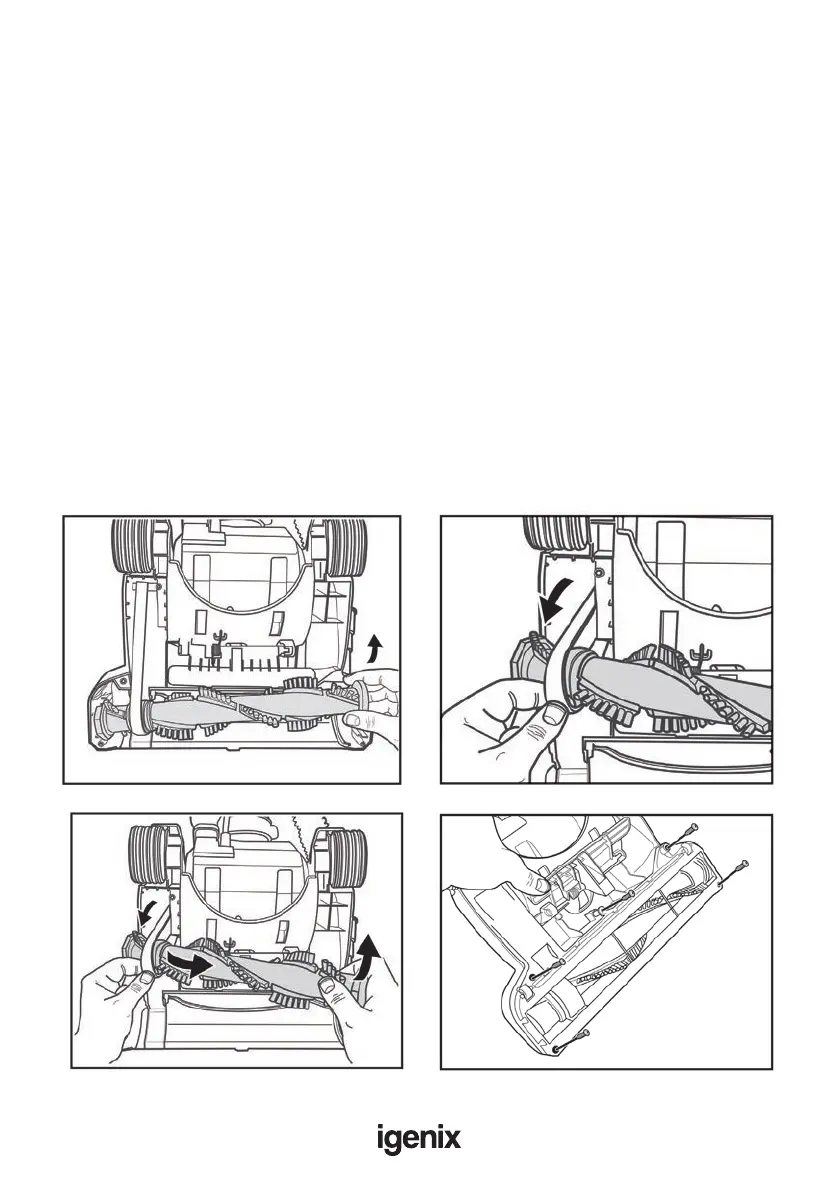

To remove the drive belt, read the instructions and follow the drawings below:
Ensure the machine is switched off and unplugged.
Step 1: Use a cross head screwdriver to remove the six screws at the base of the
machine – this will release the cover. Make sure to put them safe to one side.
Grasp the old drive belt and remove from the motor shaft. Discard the old drive
belt.
Step 2: Loop the new drive belt over the motor shaft. Stretch the other end over
the oor brush in the space provided between the bristles.
Place ends of oor brush down into slots on sides as shown.
Step 3: Turn the oor brush by hand several times in the direction of the motor
shaft.
If properly installed, drive belt will align itself on oor brush.
Step 4: Replace the brush cover and six screws.
