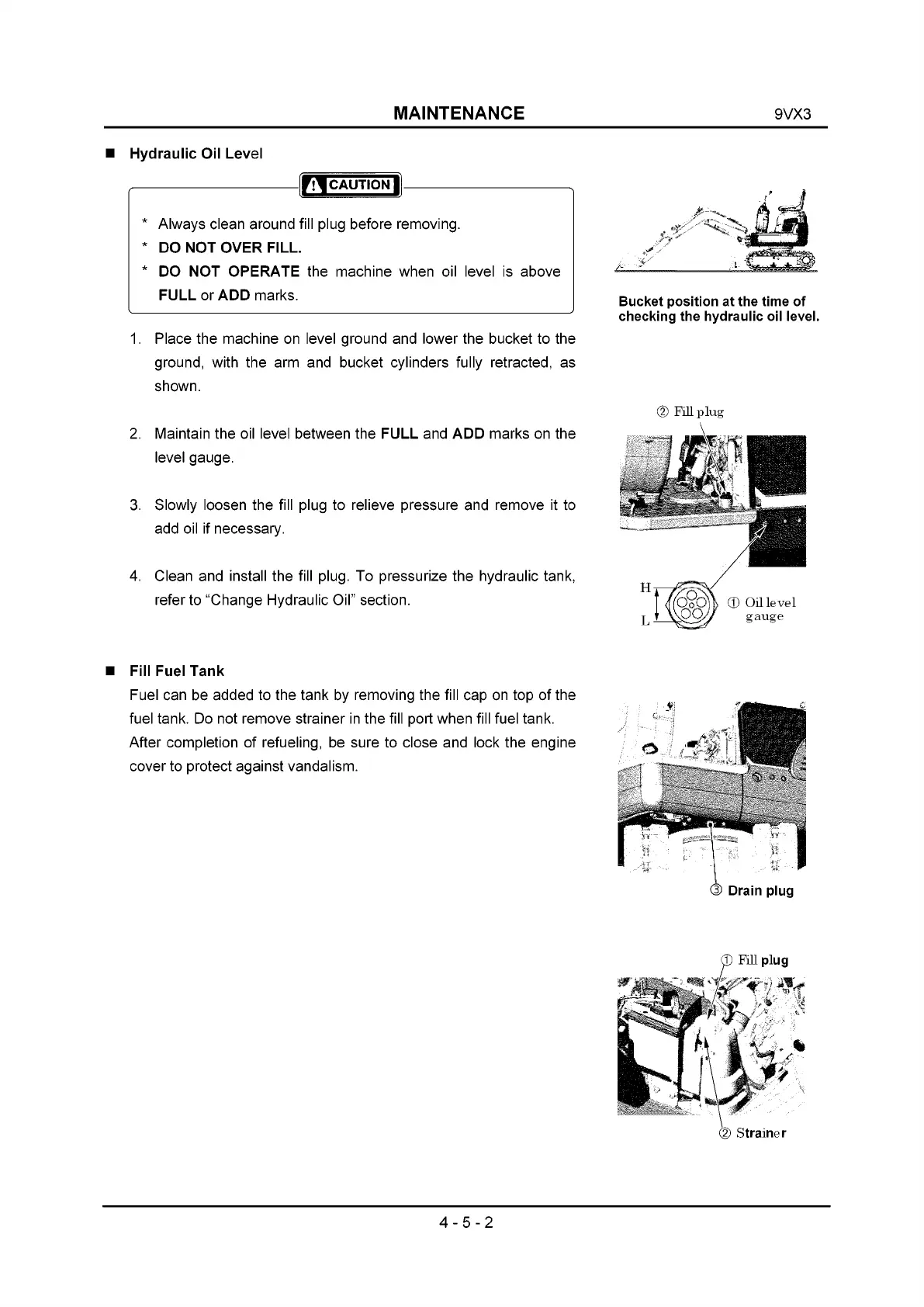

MAINTENANCE
9VX3
Hydraulic Oil Level
f ! l CAUTION I
* Always clean around
* DO NOT OVER FILL
* DO NOT OPERATE
FULL or ADD marks.
fill plug before r
the machine >
emoving.
when oil level is above
1. Place the machine on level ground and lower the bucket to the
ground, with the arm and bucket cylinders fully retracted, as
shown.
2. Maintain the oil level between the FULL and ADD marks on the
level gauge.
3. Slowly loosen the fill plug to relieve pressure and remove it to
add oil if necessary.
4. Clean and install the fill plug. To pressurize the hydraulic tank,
refer to “Change Hydraulic Oil” section.
Bucket position at the time of
checking the hydraulic oil level.
Fill plug
I
. • j E h I
{[L)ZV)h © ОДlevel
L ? gauge
Fill Fuel Tank
Fuel can be added to the tank by removing the fill cap on top of the
fuel tank. Do not remove strainer in the fill port when fill fuel tank.
After completion of refueling, be sure to close and lock the engine
cover to protect against vandalism.
I) Drai
Drain plug
® Fill plug
® Strainer
4-5-2
