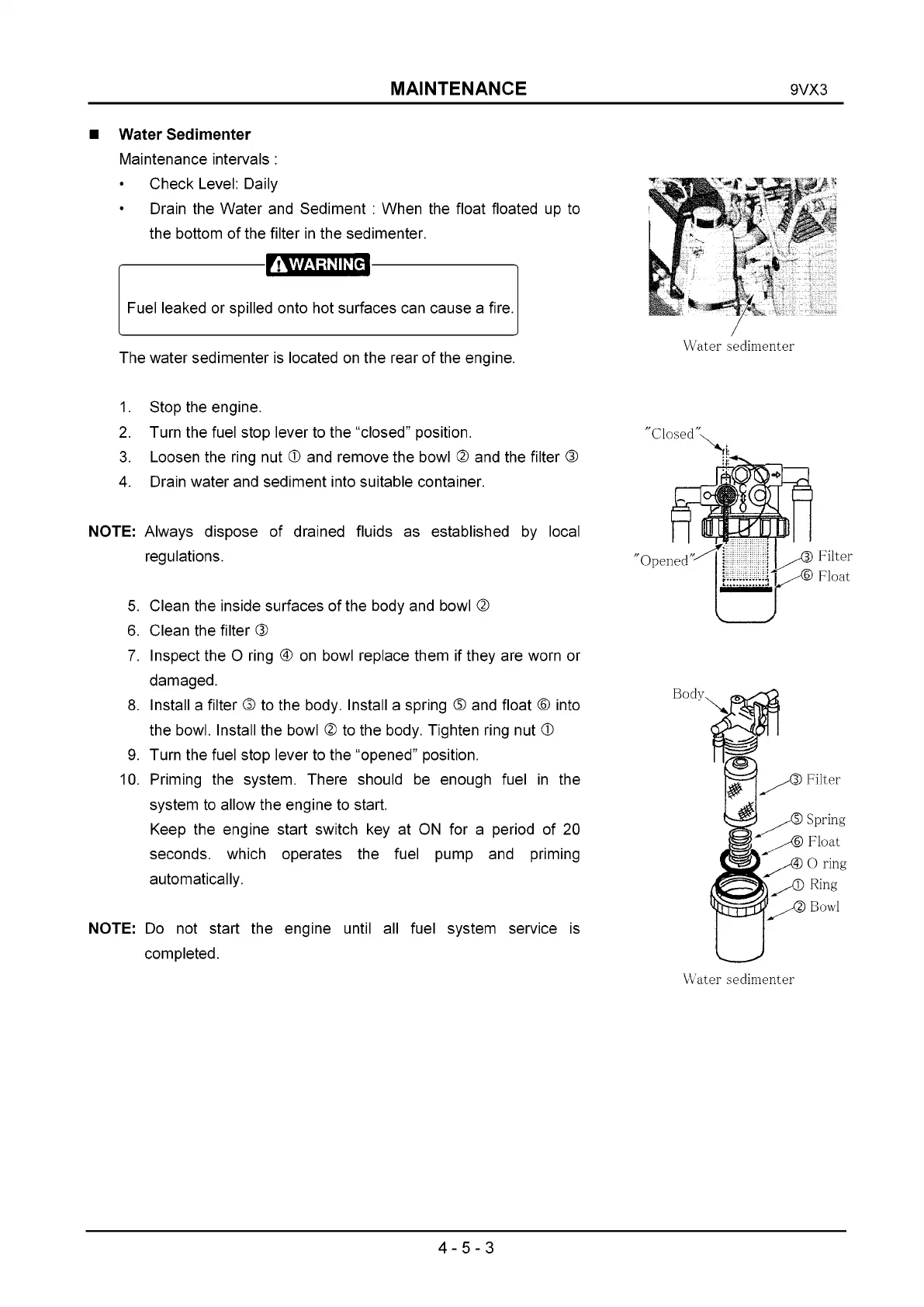

MAINTENANCE 9VX3
Water Sedimenter
Maintenance intervals:
Check Level: Daily
Drain the Water and Sediment : When the float floated up to
the bottom of the filter in the sedimenter.
AWARNING
Fuel leaked or spilled onto hot surfaces can cause a fire.
The water sedimenter is located on the rear of the engine.
Water sedimenter
1. Stop the engine.
2. Turn the fuel stop lever to the “closed” position.
3. Loosen the ring nut © and remove the bowl © and the filter ©
4. Drain water and sediment into suitable container.
NOTE: Always dispose of drained fluids as established by local
regulations.
5. Clean the inside surfaces of the body and bowl ©
6 . Clean the filter ©
7. Inspect the О ring © on bowl replace them if they are worn or
damaged.
8 . Install a filter © to the body. Install a spring © and float © into
the bowl. Install the bowl © to the body. Tighten ring nut ©
9. Turn the fuel stop lever to the “opened” position.
10. Priming the system. There should be enough fuel in the
system to allow the engine to start.
Keep the engine start switch key at ON for a period of 20
seconds, which operates the fuel pump and priming
automatically.
NOTE: Do not start the engine until all fuel system service is
completed.
Body,
D Filter
S) Spring
E> Float
$ О ring
^ - © Ring
D Bowl
Water sedimenter
4-5-3
