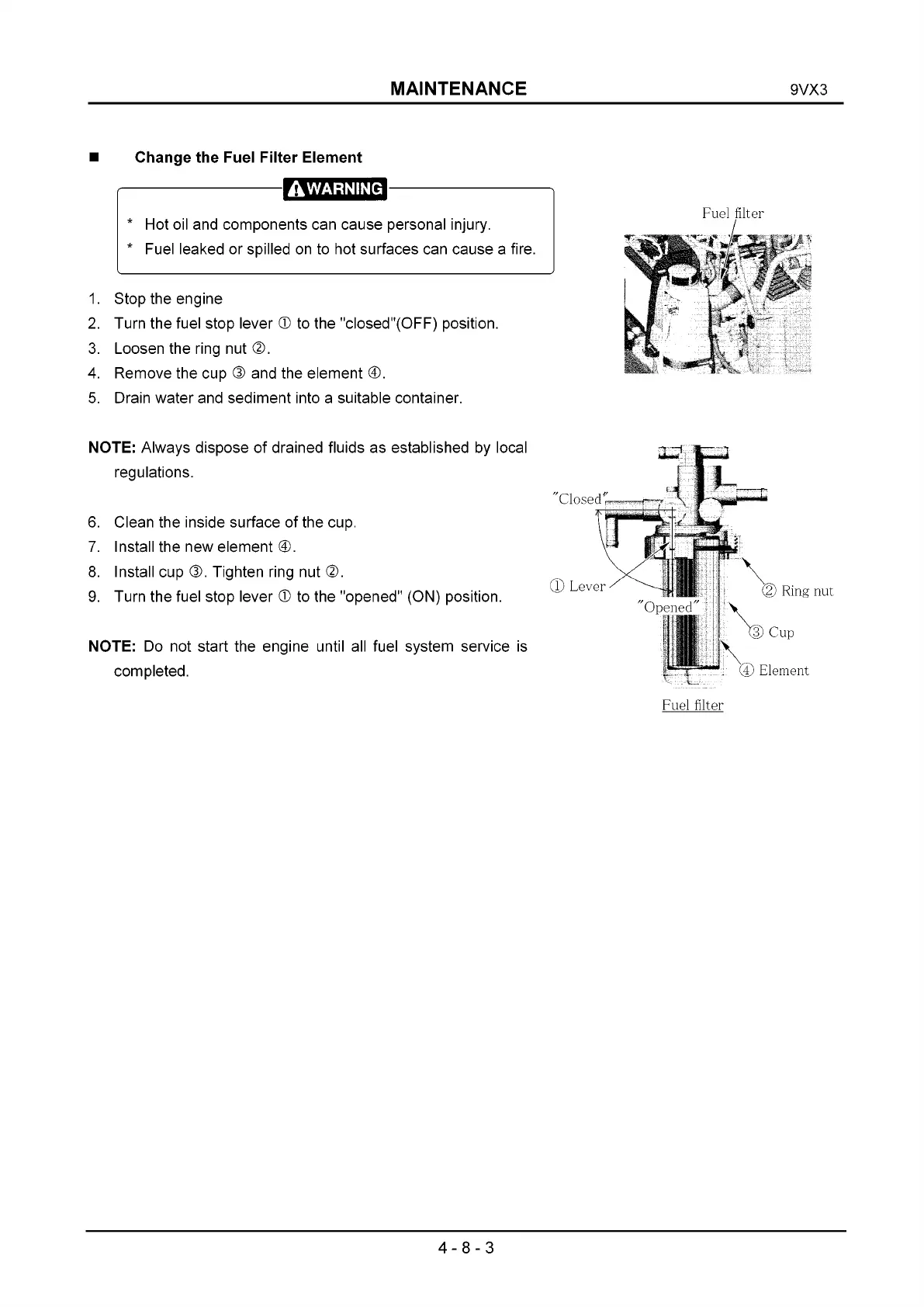

MAINTENANCE 9VX3
■ Change the Fuel Filter Element
Fuel filter
* Hot oil and components can cause personal injury.
/
* Fuel leaked or spilled on to hot surfaces can cause a fire.
ear
1. Stop the engine
2. Turn the fuel stop lever © to the "closed"(OFF) position.
3. Loosen the ring nut ©.
4. Remove the cup ® and the element ©.
5. Drain water and sediment into a suitable container.
NOTE: Always dispose of drained fluids as established by local
regulations.
6 . Clean the inside surface of the cup.
7. Install the new element @.
8 . Install cup ©. Tighten ring nut ©.
9. Turn the fuel stop lever © to the "opened" (ON) position.
NOTE: Do not start the engine until all fuel system service is
completed.
Closed ’
7-r
® Lever ■
* Opened
Ring nut
3) Cup
s@ Element
Fuel filter
4-8-3
