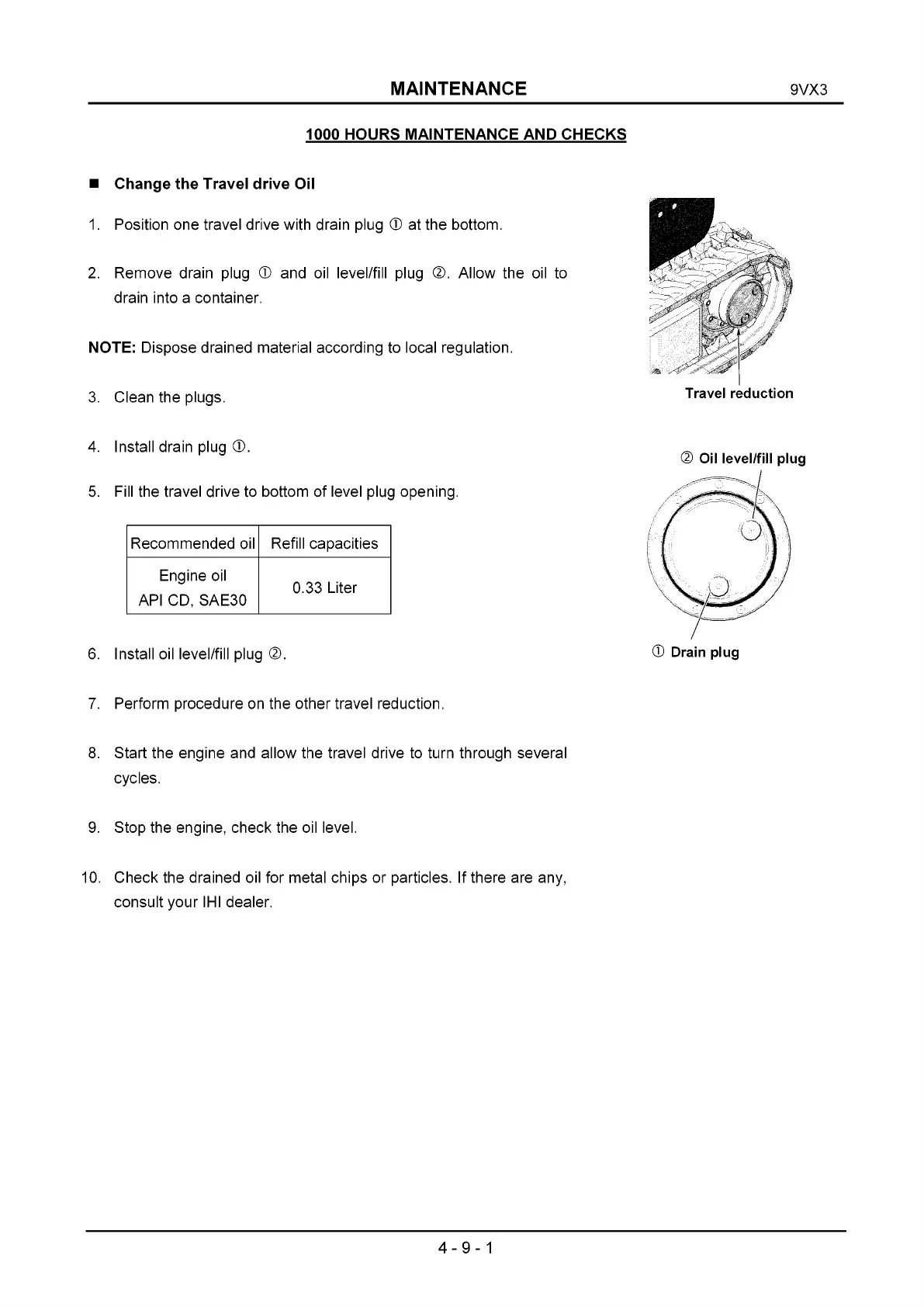

MAINTENANCE 9VX3
1000 HOURS MAINTENANCE AND CHECKS
■ Change the Travel drive Oil
1 . Position one travel drive with drain plug Ф at the bottom.
2 . Remove drain plug Ф and oil level/fill plug Allow the oil to
drain into a container.
NOTE: Dispose drained material according to local regulation.
3. Clean the plugs.
4. Install drain plug Ф.
5. Fill the travel drive to bottom of level plug opening.
Recommended oil Refill capacities
Engine oil
API CD, SAE30
0.33 Liter
6 . Install oil level/fill plug @.
7. Perform procedure on the other travel reduction.
8 . Start the engine and allow the travel drive to turn through several
cycles.
9. Stop the engine, check the oil level.
10. Check the drained oil for metal chips or particles. If there are any,
consult your IHI dealer.
Ш
spSsx
I
Travel reduction
© Oil level/fill plug
© Drain plug
4-9-1
