IHI 9VX3 - Page 19

STRUCTURE AND FUNCTION 9VX3

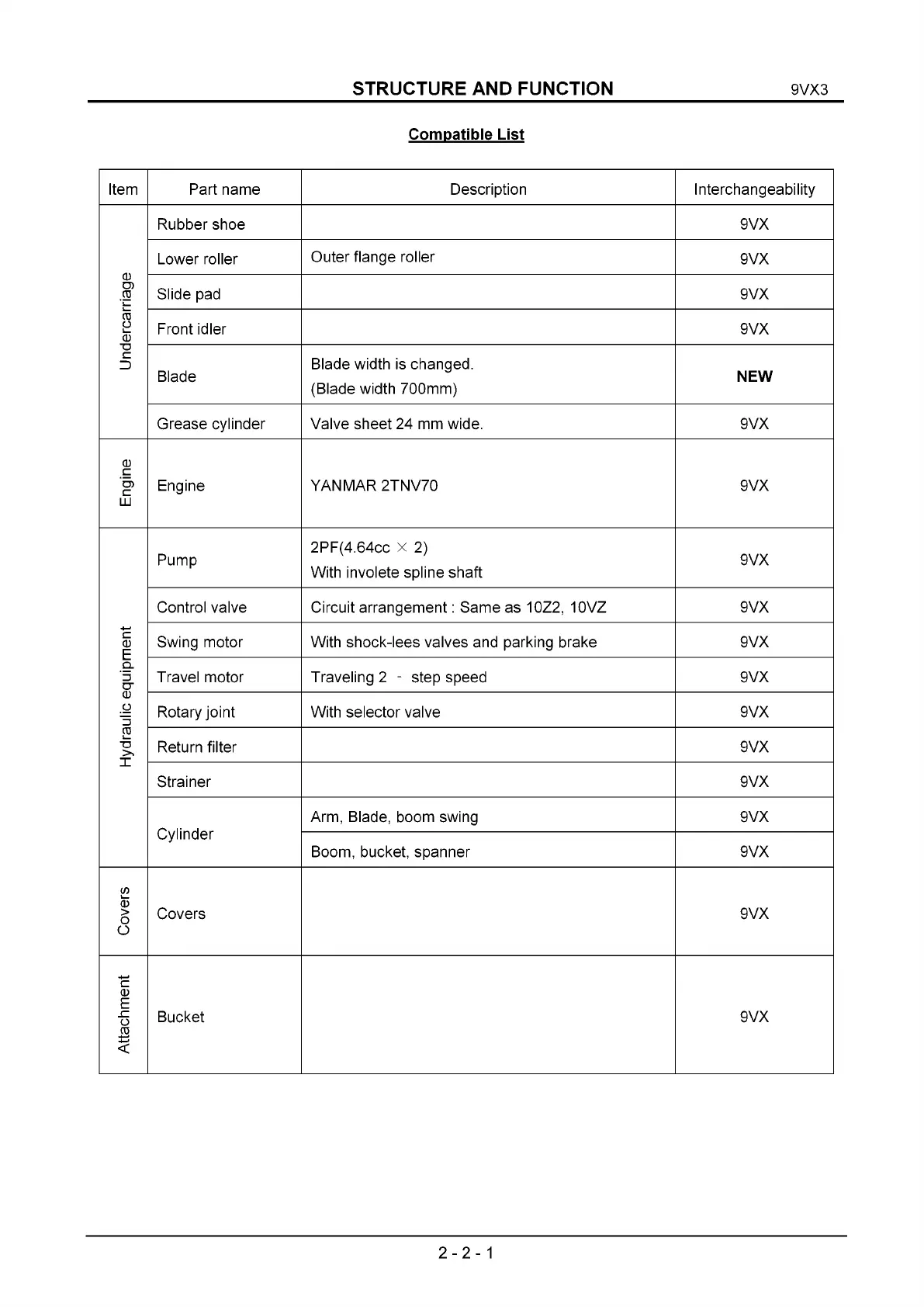

Compatible List
Item
Part name Description Interchangeability
Rubber shoe 9VX
CD
D)
03
Lower roller
Outer flange roller
9VX
Slide pad
9VX
03
о
Ш
Front idler 9VX
"D
С
3
Blade
Blade width is changed.
(Blade width 700mm)
NEW
Grease cylinder Valve sheet 24 mm wide. 9VX
Engine
Engine
YANMAR 2TNV70
9VX
Pump
2PF(4.64cc x 2)
With involete spline shaft
9VX
Control valve Circuit arrangement: Same as 10Z2, 10VZ 9VX
4—»
С
CD
E
Swing motor With shock-lees valves and parking brake 9VX
Q_
ъ
cr
Travel motor Traveling 2 - step speed 9VX
Ш
о
"5
Rotary joint With selector valve 9VX
03
"О
-i-
Return filter 9VX
_1_
Strainer 9VX
Cylinder
Arm, Blade, boom swing 9VX
Boom, bucket, spanner 9VX
Covers
Covers
9VX
Attachment
Bucket
9VX
2-2-1
