STRUCTURE AND FUNCTION
9VX3

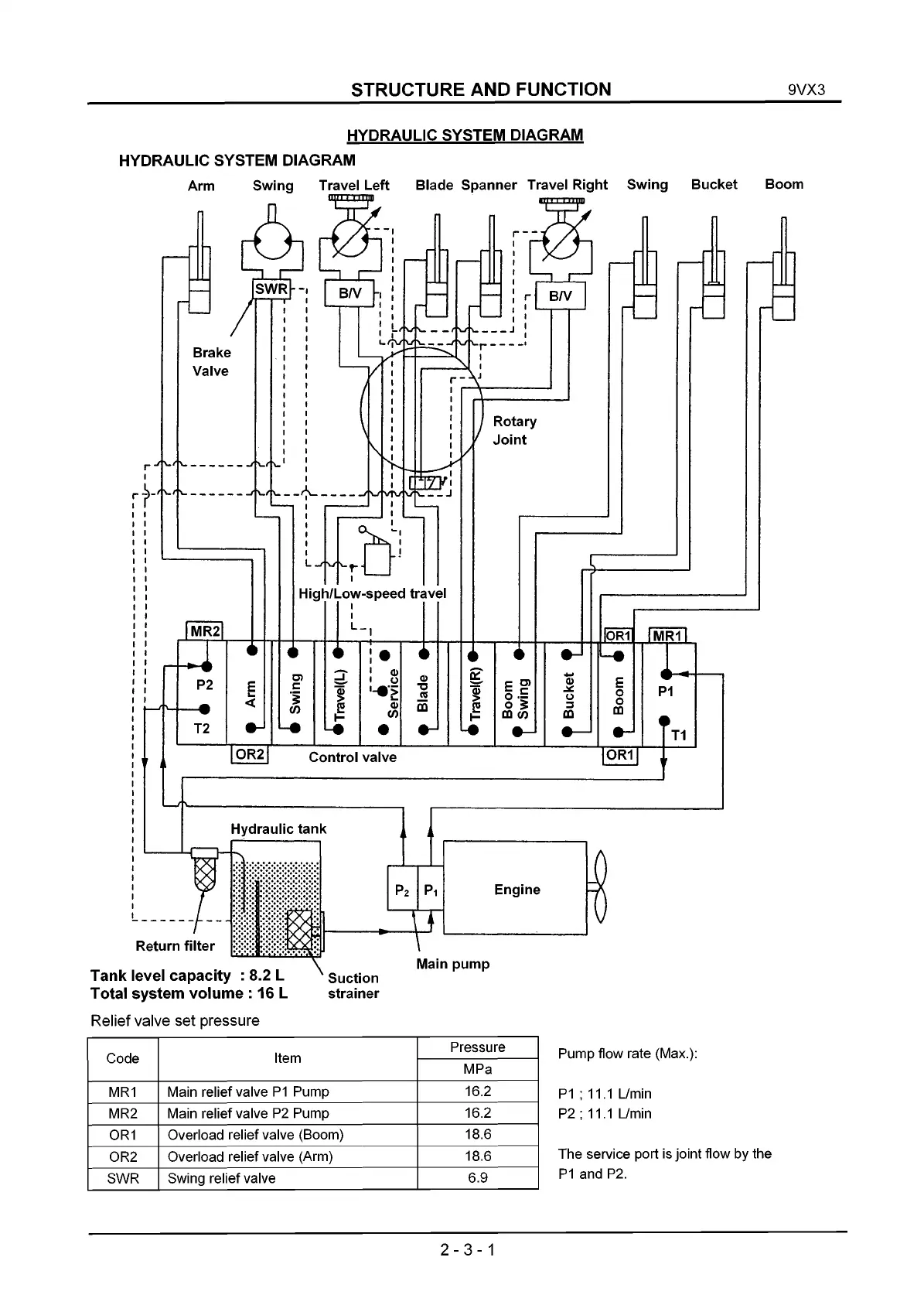

HYDRAULIC SYSTEM DIAGRAM
HYDRAULIC SYSTEM DIAGRAM
Arm Swing Travel Left Blade Spanner Travel Right
Swing Bucket Boom
Return filter
Tank level capacity : 8.2 L
Total system volume : 16 L
Relief valve set pressure
Suction
strainer
Main pump
Code
Item
Pressure
MPa
MR1
Main relief valve P1 Pump
16.2
MR2
Main relief valve P2 Pump
16.2
OR1
Overload relief valve (Boom)
18.6
OR2 Overload relief valve (Arm)
18.6
SWR
Swing relief valve
6.9
Pump flow rate (Max.):
P1 ; 11.1 L/min
P2 ; 11.1 L/min
The service port is joint flow by the
P1 and P2.
2-3-1
