STRUCTURE AND FUNCTION
9VX3
SWING DRIVE DEVICE & BEARING
Layout

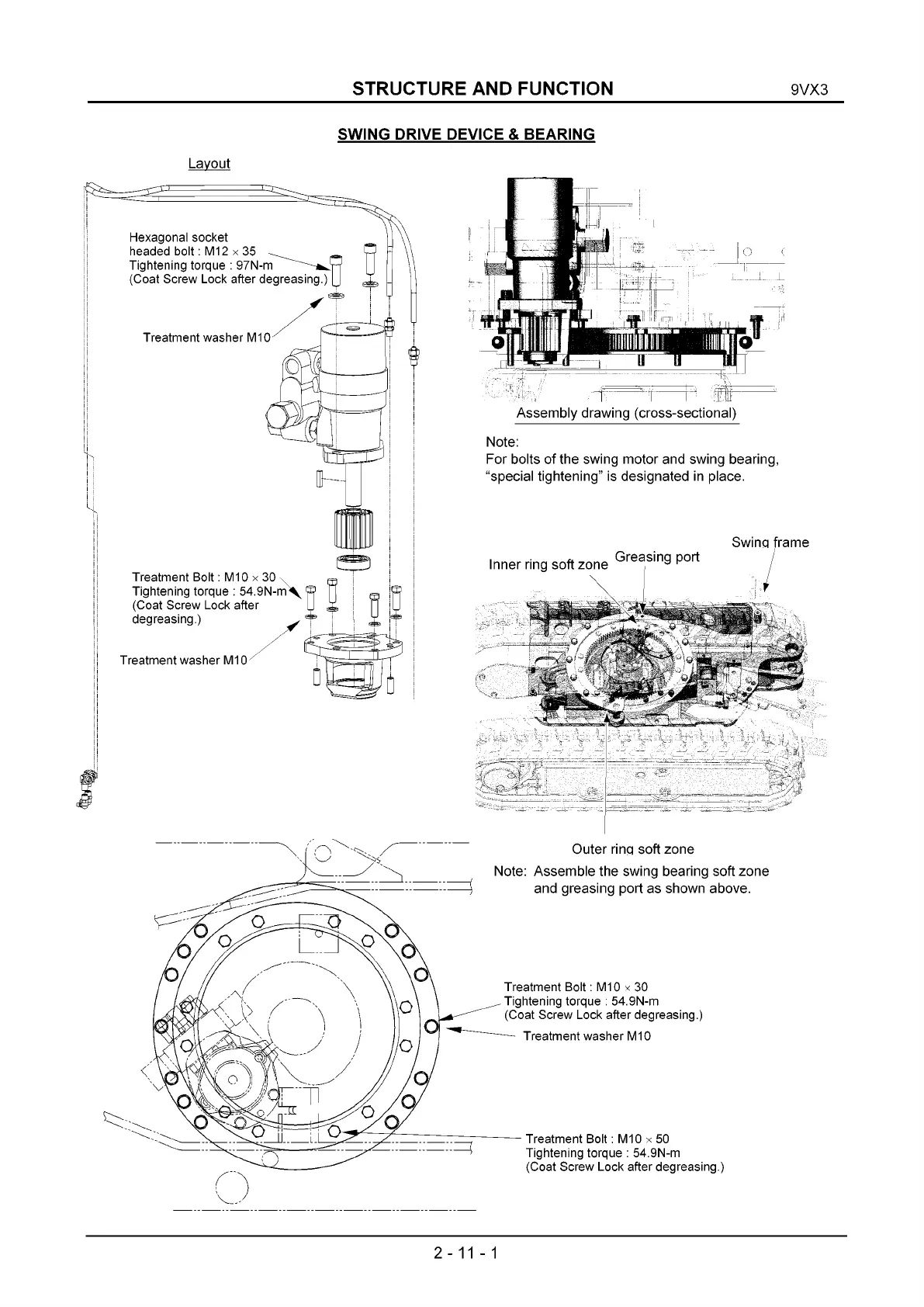

Assembly drawing (cross-sectional)
Note:
For bolts of the swing motor and swing bearing,
“special tightening” is designated in place.
Swinq frame
Inner ring soft zone Creasing Port I
Outer rinq soft zone
Note: Assemble the swing bearing soft zone
and greasing port as shown above.
Treatment B olt: M10 x 30
Tightening torque : 54.9N-m
(Coat Screw Lock after degreasing.)
Treatment washer M10
Treatment B olt: M10 x 50
Tightening torque : 54.9N-m
(Coat Screw Lock after degreasing.)
2- 11-1
