OPERATION 9VX3

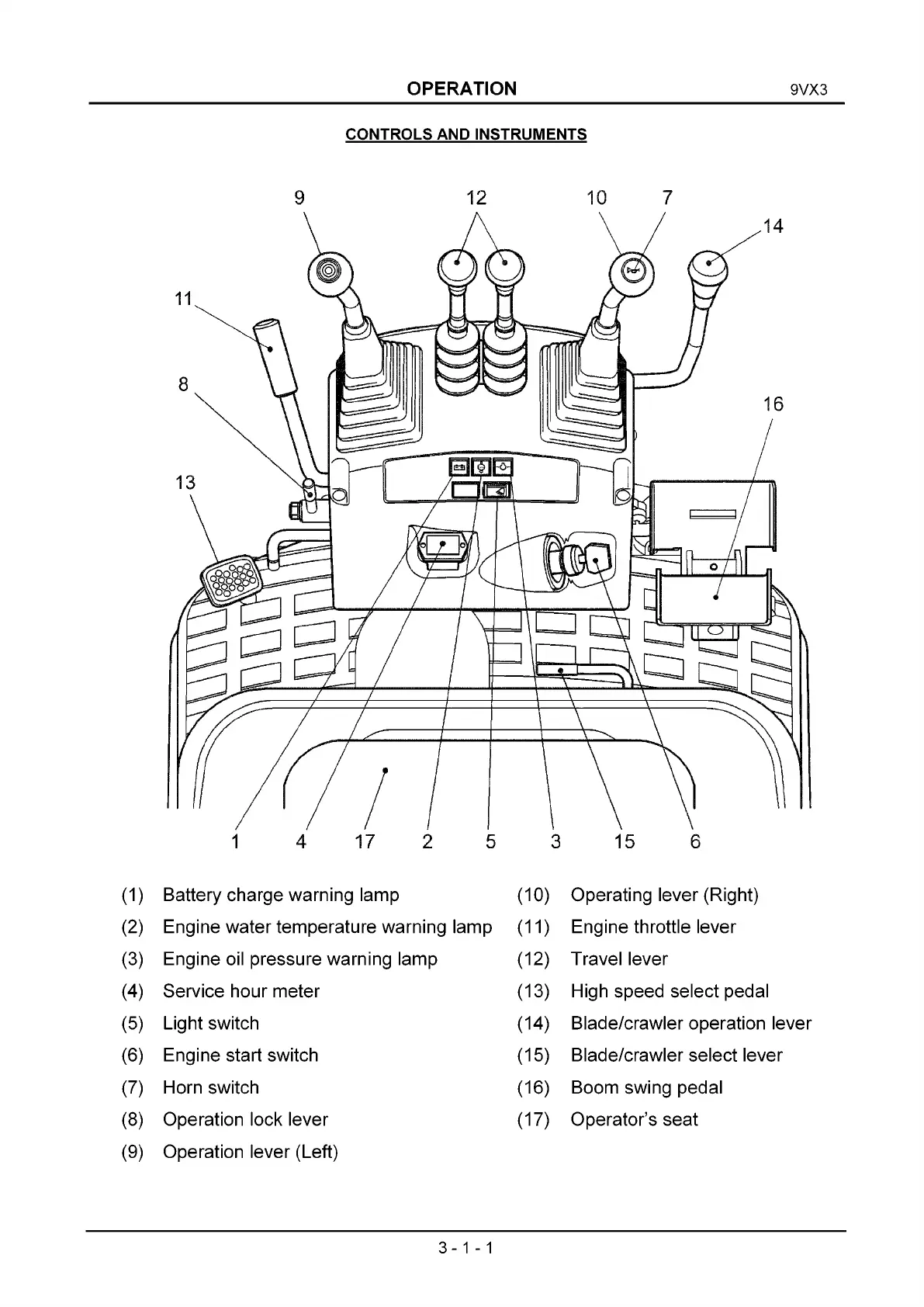

CONTROLS AND INSTRUMENTS
1 4 17 2 5 3 15 6
(1)
Battery charge warning lamp
(10) Operating lever (Right)
(2)
Engine water temperature warning lamp (11) Engine throttle lever
(3)
Engine oil pressure warning lamp
(12) Travel lever
(4)
Service hour meter
(13) High speed select pedal
(5)
Light switch (14) Blade/crawler operation lever
(6)
Engine start switch
(15) Blade/crawler select lever
(7)
Horn switch
(16)
Boom swing pedal
(8)
Operation lock lever (17) Operator’s seat
(9)
Operation lever (Left)
3-1-1
