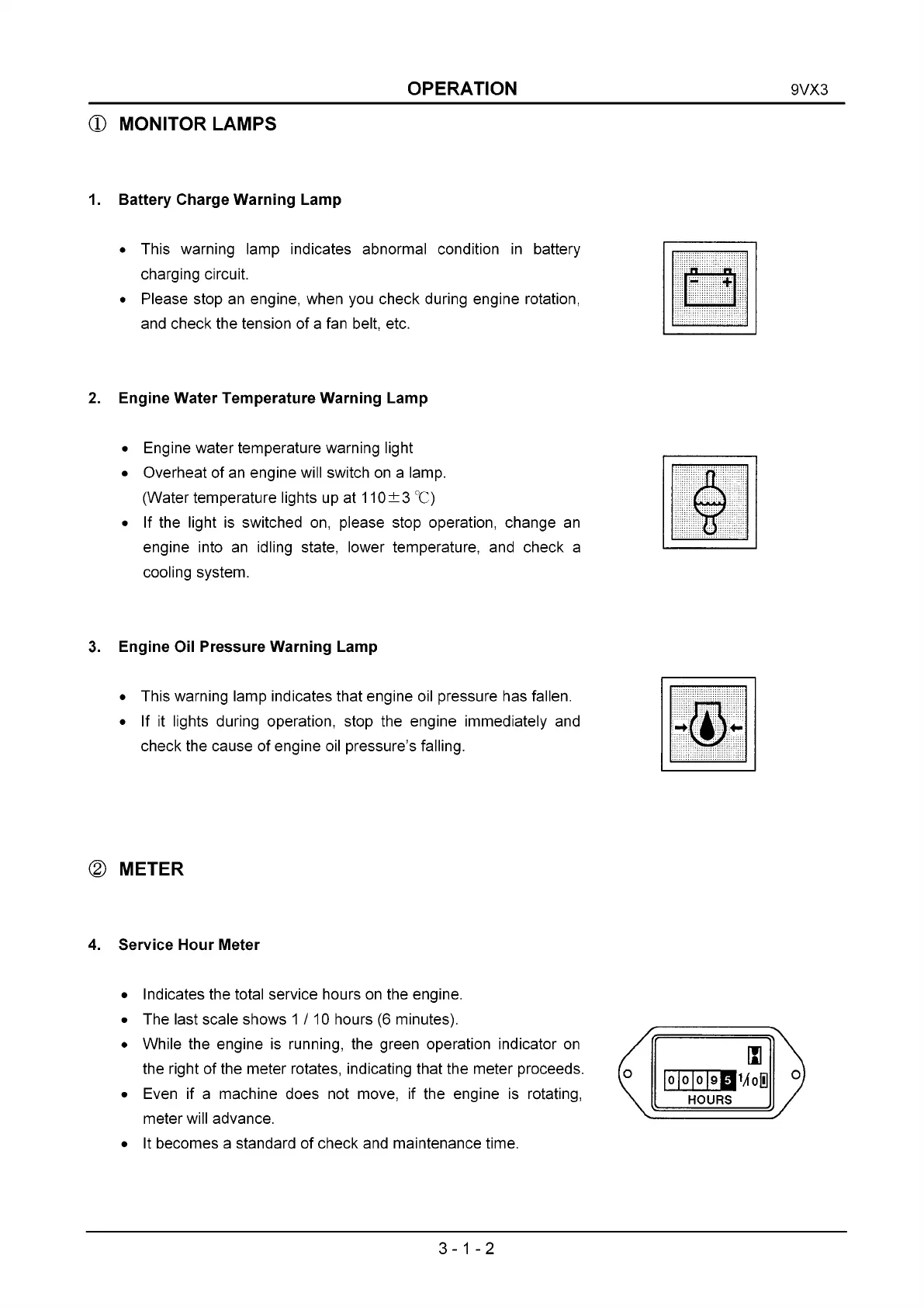

OPERATION 9VX3
ф MONITOR LAMPS
1. Battery Charge Warning Lamp
• This warning lamp indicates abnormal condition in battery
charging circuit.
• Please stop an engine, when you check during engine rotation,
and check the tension of a fan belt, etc.
" ",
” ни
2. Engine Water Temperature Warning Lamp
• Engine water temperature warning light
• Overheat of an engine will switch on a lamp.
(Water temperature lights up at 110± 3 °C)
• If the light is switched on, please stop operation, change an
engine into an idling state, lower temperature, and check a
cooling system.
3. Engine Oil Pressure Warning Lamp
• This warning lamp indicates that engine oil pressure has fallen.
• If it lights during operation, stop the engine immediately and
check the cause of engine oil pressure’s falling.
(D METER
4. Service Hour Meter
Indicates the total service hours on the engine.
The last scale shows 1/10 hours (6 minutes).
While the engine is running, the green operation indicator on
the right of the meter rotates, indicating that the meter proceeds.
Even if a machine does not move, if the engine is rotating,
meter will advance.
It becomes a standard of check and maintenance time.
0 0 0 9
SI
0 Mo@
HOURS
3-1-2
