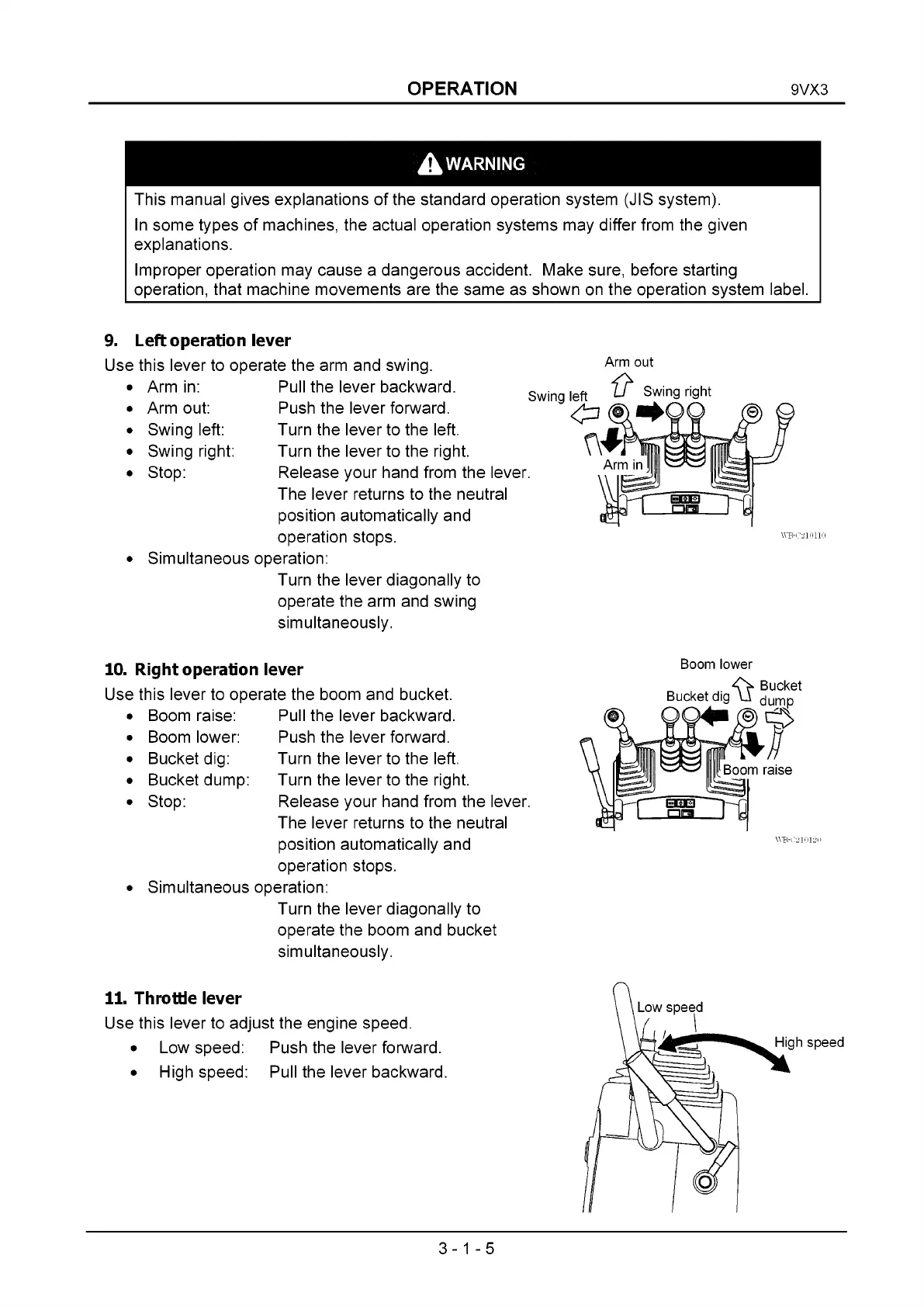

IHI 9VX3 - Page 67

OPERATION 9VX3
Д WARNING
This manual gives explanations of the standard operation system (JIS system).
In som e types of machines, the actual operation systems may differ from the given
explanations.
Im proper operation may cause a dangerous accident. Make sure, before starting
operation, that machine movements are the same as shown on the operation system label.
9. Left operation lever
Use this lever to operate the arm and swing.
• Arm in: Pull the lever backward.
• Arm out: Push the lever forward.
• Swing left: Turn the lever to the left.
• Swing right: Turn the lever to the right.
• Stop: Release your hand from the lever.
The lever returns to the neutral
position automatically and
operation stops.
• Sim ultaneous operation:
Turn the lever diagonally to
operate the arm and swing
simultaneously.
WB-C210110
10. Right operation lever
Use this lever to operate the boom and bucket.
Boom lower
Boom raise:
Boom lower:
Bucket dig:
Bucket dump:
Stop:
Pull the lever backward.
Push the lever forward.
Turn the lever to the left.
Turn the lever to the right.
Release your hand from the lever.
The lever returns to the neutral
position automatically and
operation stops.
• Sim ultaneous operation:
Turn the lever diagonally to
operate the boom and bucket
sim ultaneously.
11. Throttle lever
Use this lever to adjust the engine speed.
• Low speed: Push the lever forward.
• High speed: Pull the lever backward.
<C>- Bucket
Bucket dig U dump
у
Boom raise
3-1-5
