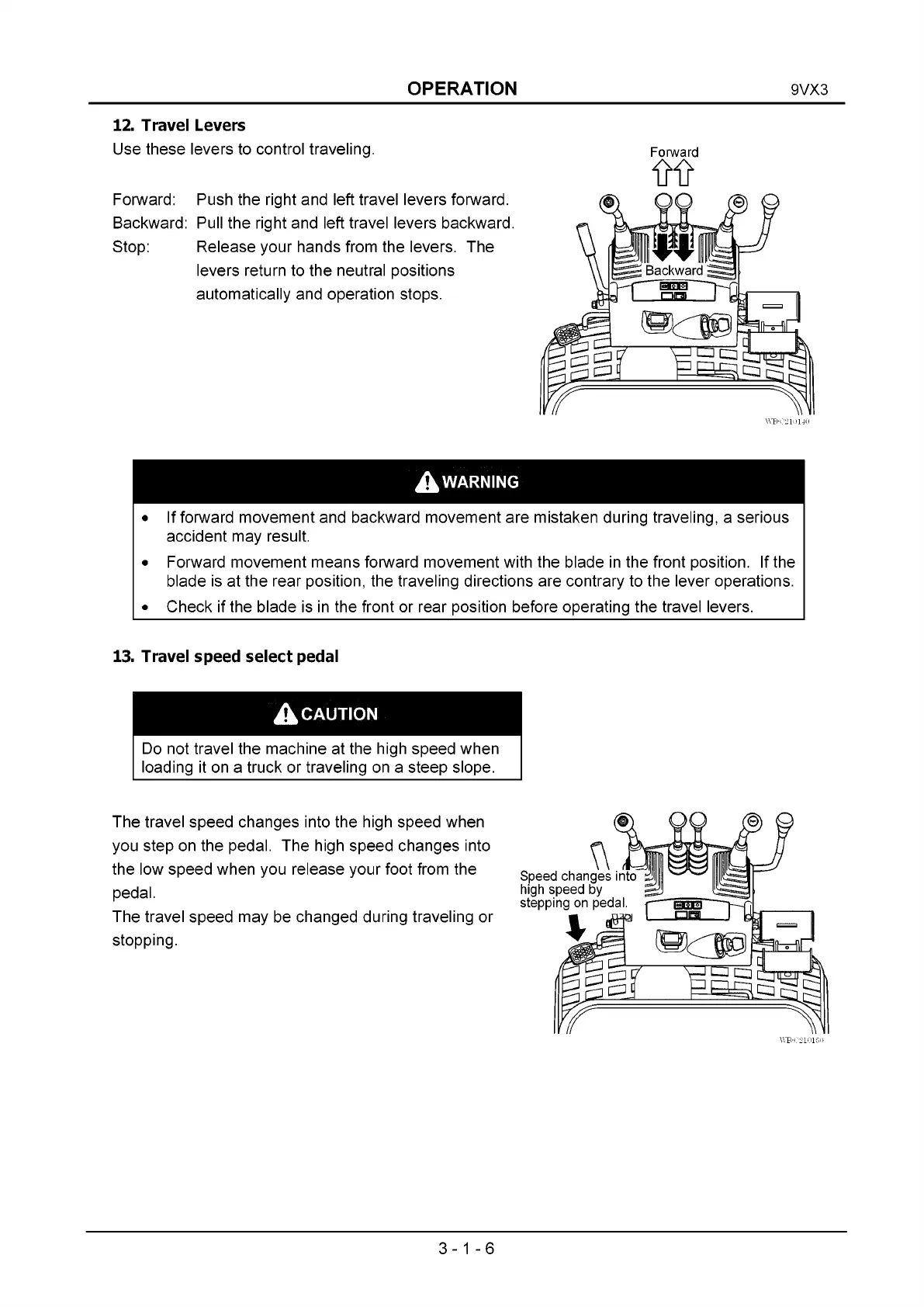

OPERATION 9VX3
12. Travel Levers
Use these levers to control traveling.
Forward: Push the right and left travel levers forward.
Backward: Pull the right and left travel levers backward.
Stop: Release your hands from the levers. The
levers return to the neutral positions
automatically and operation stops.
Forward
WB-C210140
Д WARNING
If forward movement and backward movement are mistaken during traveling, a serious
accident may result.
Forward movement means forward movement with the blade in the front position. If the
blade is at the rear position, the traveling directions are contrary to the lever operations.
Check if the blade is in the front or rear position before operating the travel levers.
13. Travel speed select pedal
A CAUTION
Do not travel the machine at the high speed when
loading it on a truck or traveling on a steep slope.
The travel speed changes into the high speed when
you step on the pedal. The high speed changes into
the low speed when you release your foot from the
pedal.
The travel speed may be changed during traveling or
stopping.
Speed changes into
high speed by
stepping on pedal, r-
^ а Щ 9 L
j i ^ o f
r
3-1-6
