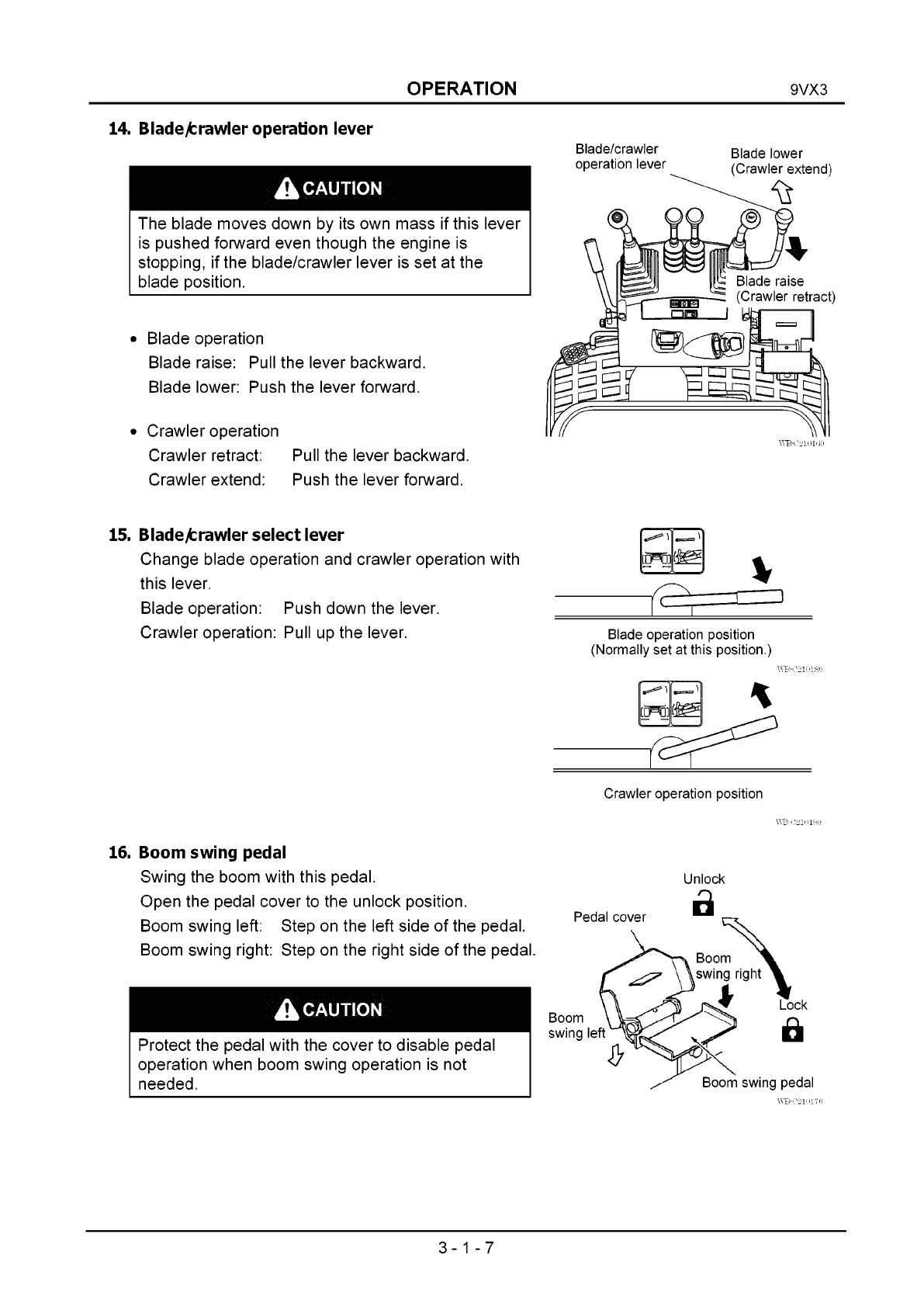

OPERATION 9VX3
14 Blade/brawler operation lever
A CAUTION
The blade moves down by its own mass if this lever
is pushed forward even though the engine is
stopping, if the blade/crawler lever is set at the
blade position.
Blade operation
Blade raise: Pull the lever backward.
Blade lower: Push the lever forward.
Crawler operation
Crawler retract: Pull the lever backward.
Crawler extend: Push the lever forward.
Blade/crawler
operation lever
Blade lower
(Crawler extend)
15. Blade/brawler select lever
Change blade operation and crawler operation with
this lever.
Blade operation: Push down the lever.
Crawler operation: Pull up the lever.
^ • 1
0 е®
I
I □
Blade operation position
(Normally set at this position.)
16. Boom swing pedal
Swing the boom with this pedal.
Open the pedal cover to the unlock position.
Boom swing left: Step on the left side of the pedal.
Boom swing right: Step on the right side of the pedal.
A CAUTION
Protect the pedal with the cover to disable pedal
operation when boom swing operation is not
needed.
Pedal cover
Boom
swing left
Boom
swing right
*
Boom swing pedal
WB-C210170
3-1-7
