OPERATION 9VX3

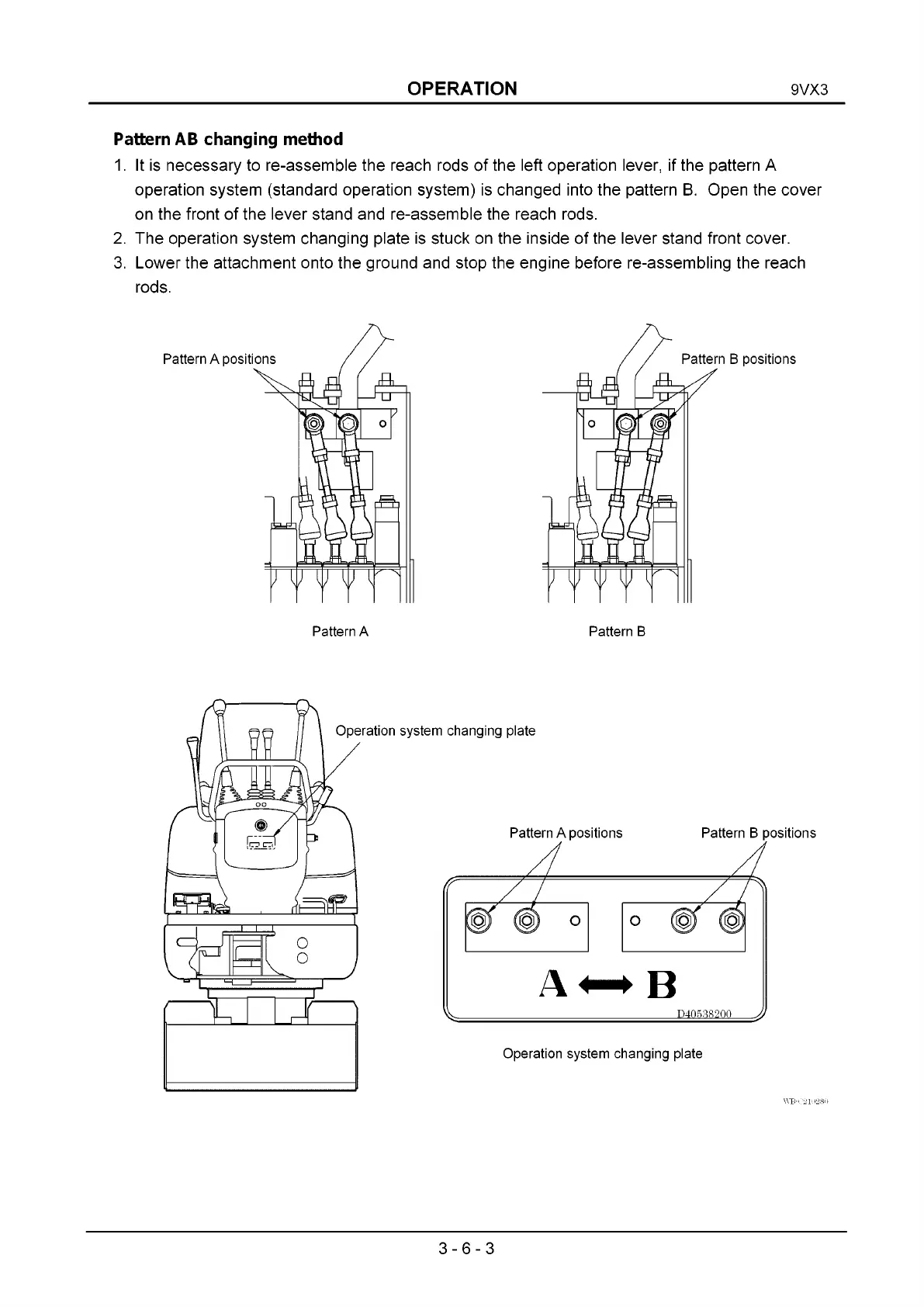

Pattern AB changing method
1. It is necessary to re-assemble the reach rods of the left operation lever, if the pattern A
operation system (standard operation system) is changed into the pattern B. Open the cover
on the front of the lever stand and re-assem ble the reach rods.
2. The operation system changing plate is stuck on the inside of the lever stand front cover.
3. Lower the attachm ent onto the ground and stop the engine before re-assembling the reach
rods.
Operation system changing plate
( i - H
^-e-T ---- eg -- f =
r
о о
V .
L,
T 7
rJf ]
Pattern A positions Pattern В positions
V
■ / /
/г
P <§> 0
О Щ (ш
A<—► В
D40538200 ^
Operation system changing plate
3-6-3
