SPECIFICATIONS
9VX3

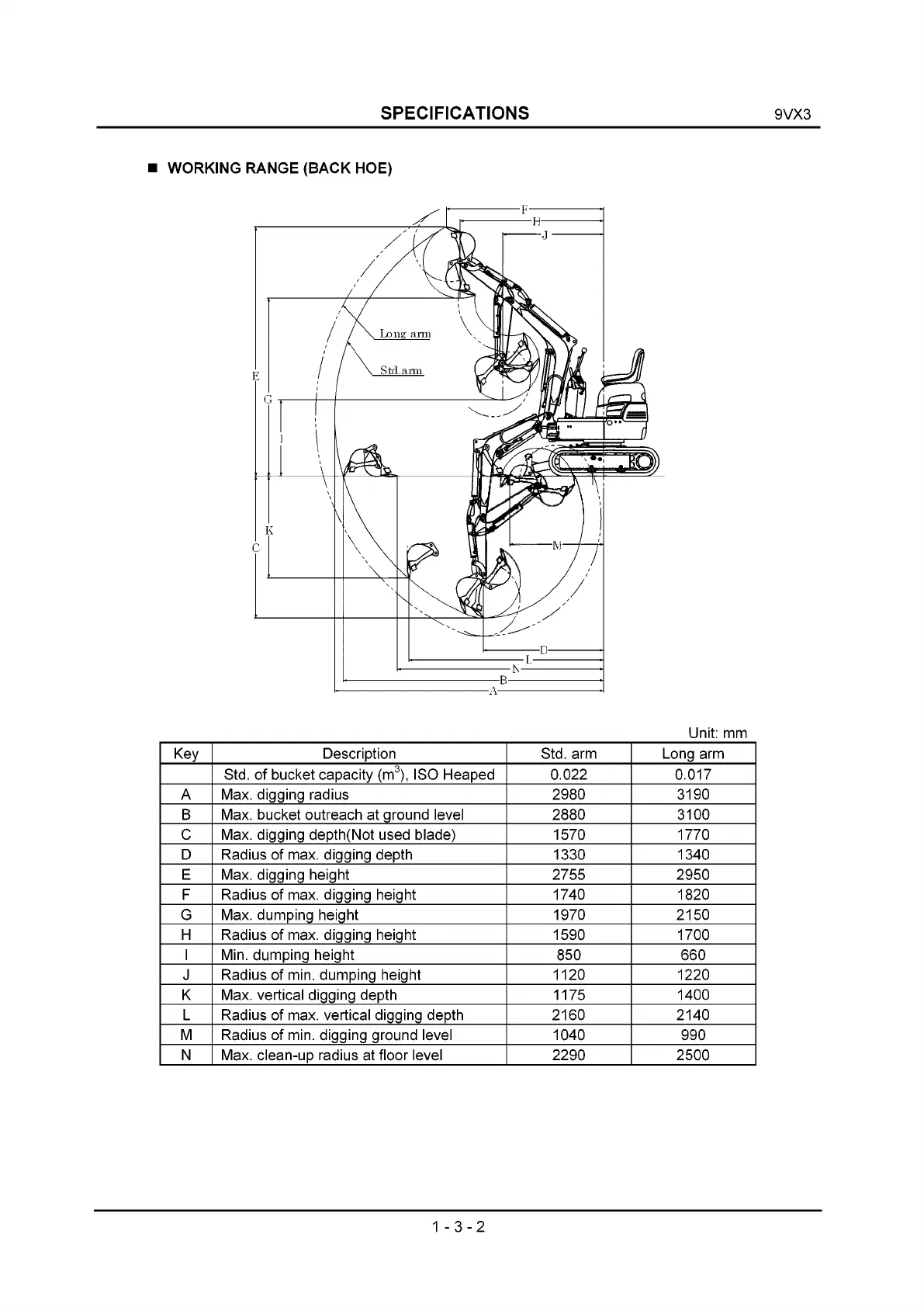

■ WORKING RANGE (BACK HOE)
Unit: mm
Key
Description
Std. arm Long arm
Std. of bucket capacity (m3), ISO Heaped
0 .0 2 2 0.017
A Max. digging radius 2980 3190
В Max. bucket outreach at ground level 2880 3100
С Max. digging depth(Not used blade) 1570 1770
D Radius of max. digging depth
1330 1340
E
Max. digging height
2755 2950
F Radius of max. digging height 1740 1820
G Max. dumping height 1970 2150
H Radius of max. digging height
1590 1700
I
Min. dumping height
850 660
J Radius of min. dumping height 1 1 2 0 1 2 2 0
К Max. vertical digging depth 1175 1400
L Radius of max. vertical digging depth 2160 2140
M
Radius of min. digging ground level
1040 990
N Max. clean-up radius at floor level
2290 2500
1-3-2
