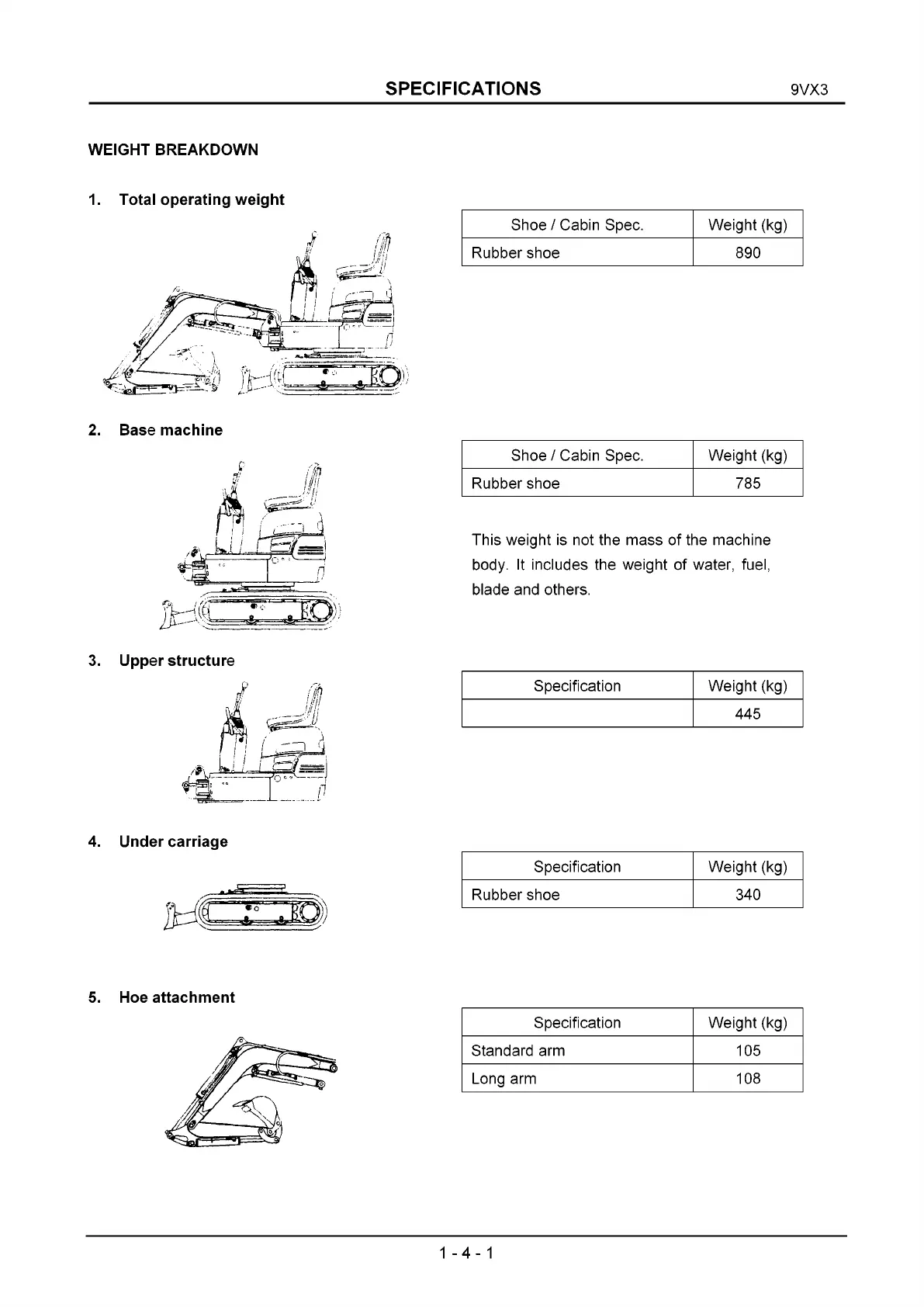

SPECIFICATIONS 9VX3
WEIGHT BREAKDOWN
1. Total operating weight
2. Base machine
3. Upper structure
4. Under carriage
5. Hoe attachment
Shoe / Cabin Spec. Weight (kg)
Rubber shoe 890
Shoe / Cabin Spec. Weight (kg)
Rubber shoe
785
This weight is not the mass of the machine
body. It includes the weight of water, fuel,
blade and others.
Specification Weight (kg)
445
Specification Weight (kg)
Rubber shoe
340
Specification Weight (kg)
Standard arm 105
Long arm 108
1-4-1
