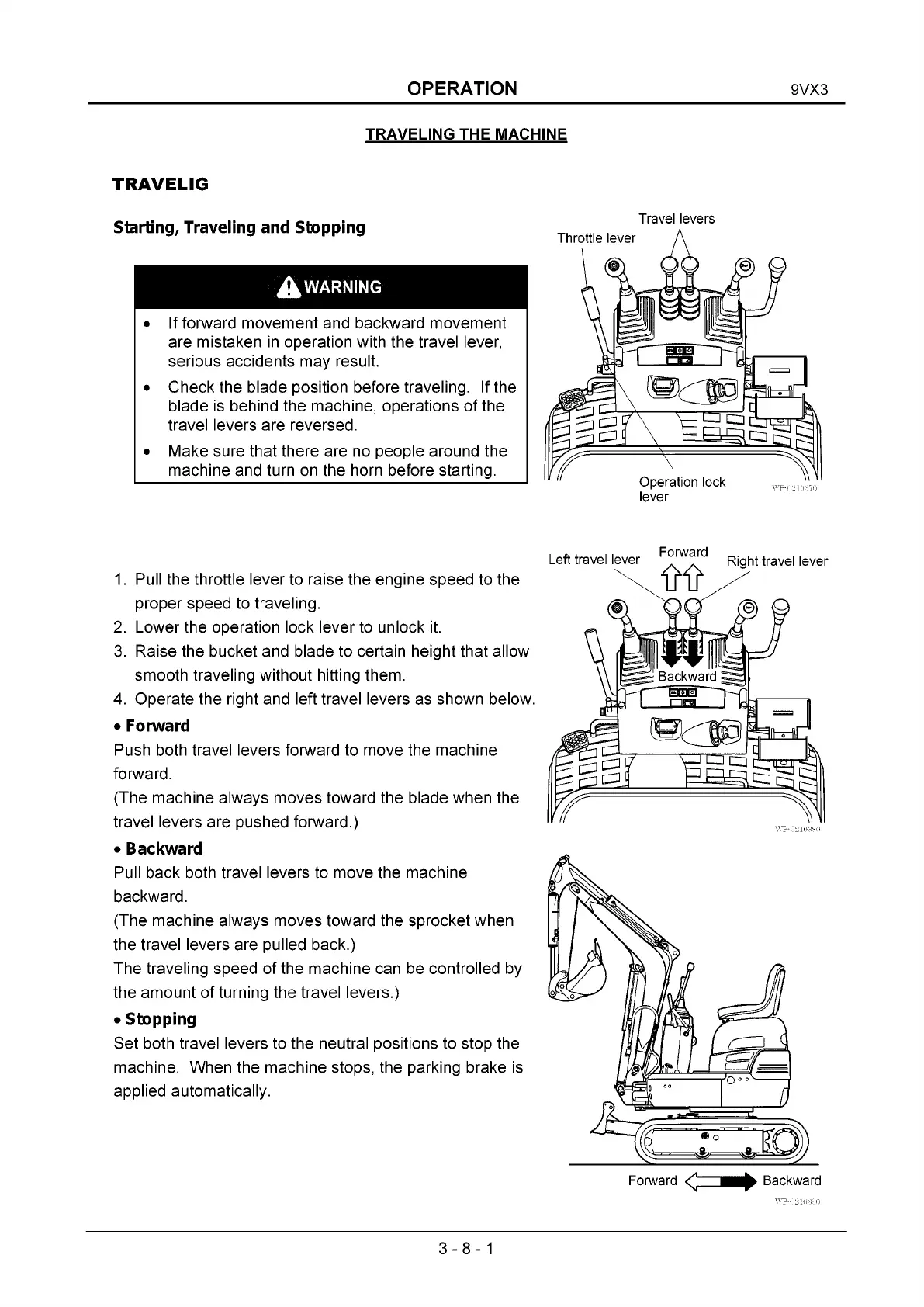

OPERATION 9VX3
TRAVELING THE MACHINE
TRAVELIG
Starting, Traveling and Stopping
Д WARNING
• If forward movement and backward movement
are mistaken in operation with the travel lever,
serious accidents may result.
• Check the blade position before traveling. If the
blade is behind the machine, operations of the
travel levers are reversed.
• Make sure that there are no people around the
machine and turn on the horn before starting.
Travel levers
Left travel lever
Forward
1. Pull the throttle lever to raise the engine speed to the
proper speed to traveling.
2. Lower the operation lock lever to unlock it.
3. Raise the bucket and blade to certain height that allow
smooth traveling without hitting them.
4. Operate the right and left travel levers as shown below.
• Forward
Push both travel levers forward to move the machine
forward.
(The machine always moves toward the blade when the
travel levers are pushed forward.)
• Backward
Pull back both travel levers to move the machine
backward.
(The machine always moves toward the sprocket when
the travel levers are pulled back.)
The traveling speed of the machine can be controlled by
the amount of turning the travel levers.)
• Stopping
Set both travel levers to the neutral positions to stop the
machine. When the machine stops, the parking brake is
applied automatically.
Right travel lever
P sr
У -Г С З Q Рлтттлг^ Л
r
WB-C210380
WB-C210390
3-8-1
