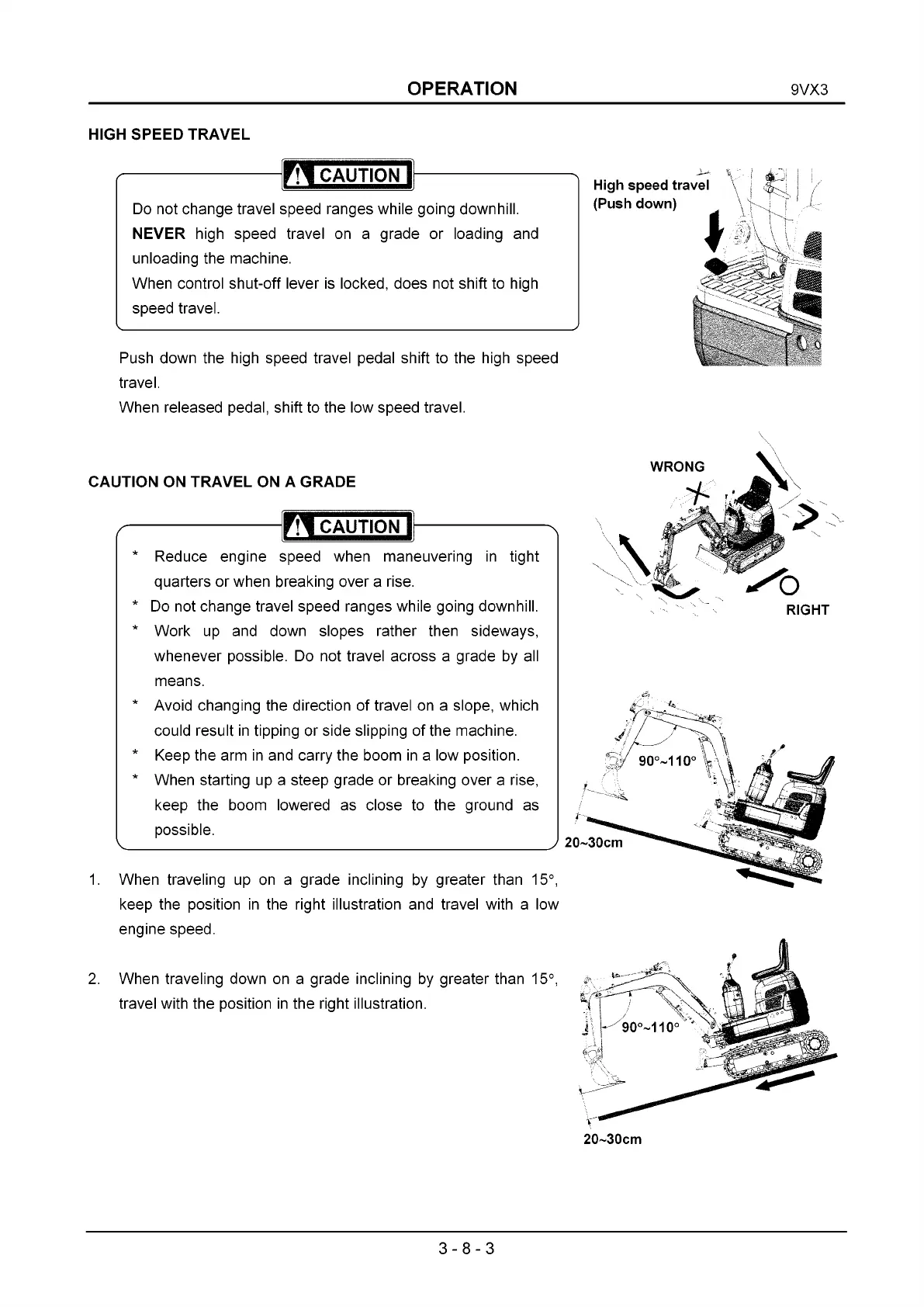

OPERATION 9VX3
HIGH SPEED TRAVEL
A H
Do not change travel speed ranges while going downhill.
NEVER high speed travel on a grade or loading and
unloading the machine.
When control shut-off lever is locked, does not shift to high
speed travel.
Push down the high speed travel pedal shift to the high speed
travel.
When released pedal, shift to the low speed travel.
CAUTION ON TRAVEL ON A GRADE
А П И
Reduce engine speed when maneuvering in tight
quarters or when breaking over a rise.
Do not change travel speed ranges while going downhill.
Work up and down slopes rather then sideways,
whenever possible. Do not travel across a grade by all
means.
Avoid changing the direction of travel on a slope, which
could result in tipping or side slipping of the machine.
Keep the arm in and carry the boom in a low position.
When starting up a steep grade or breaking over a rise,
keep the boom lowered as close to the ground as
possible.
High speed travel
(Push down)
*
WRONG
• f
\
90°~110°
20~30cm
1. When traveling up on a grade inclining by greater than 15°,
keep the position in the right illustration and travel with a low
engine speed.
2. When traveling down on a grade inclining by greater than 15°,
travel with the position in the right illustration.
*** i
(Г
s b
RIGHT
- 90°~110°
20~30cm
3-8-3
