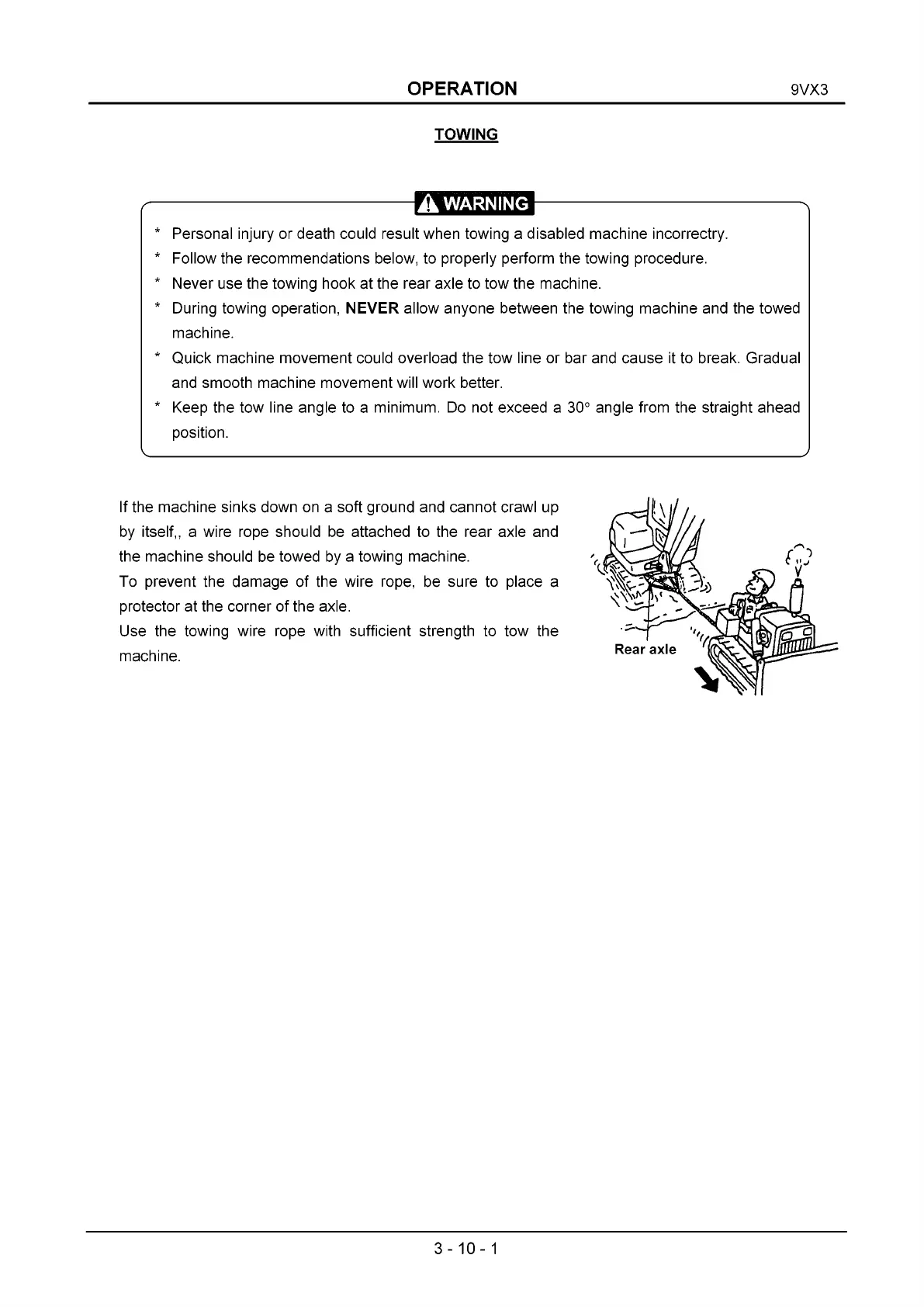

OPERATION 9VX3
TOWING
"\
* Personal injury or death could result when towing a disabled machine incorrectry.
* Follow the recommendations below, to properly perform the towing procedure.
* Never use the towing hook at the rear axle to tow the machine.
* During towing operation, NEVER allow anyone between the towing machine and the towed
machine.
* Quick machine movement could overload the tow line or bar and cause it to break. Gradual
and smooth machine movement will work better.
* Keep the tow line angle to a minimum. Do not exceed a 30° angle from the straight ahead
position.
To prevent the damage of the wire rope, be sure to place a
protector at the corner of the axle.
If the machine sinks down on a soft ground and cannot crawl up
by itself,, a wire rope should be attached to the rear axle and
the machine should be towed by a towing machine.
Use the towing wire rope with sufficient strength to tow the
machine.
3-10-1
