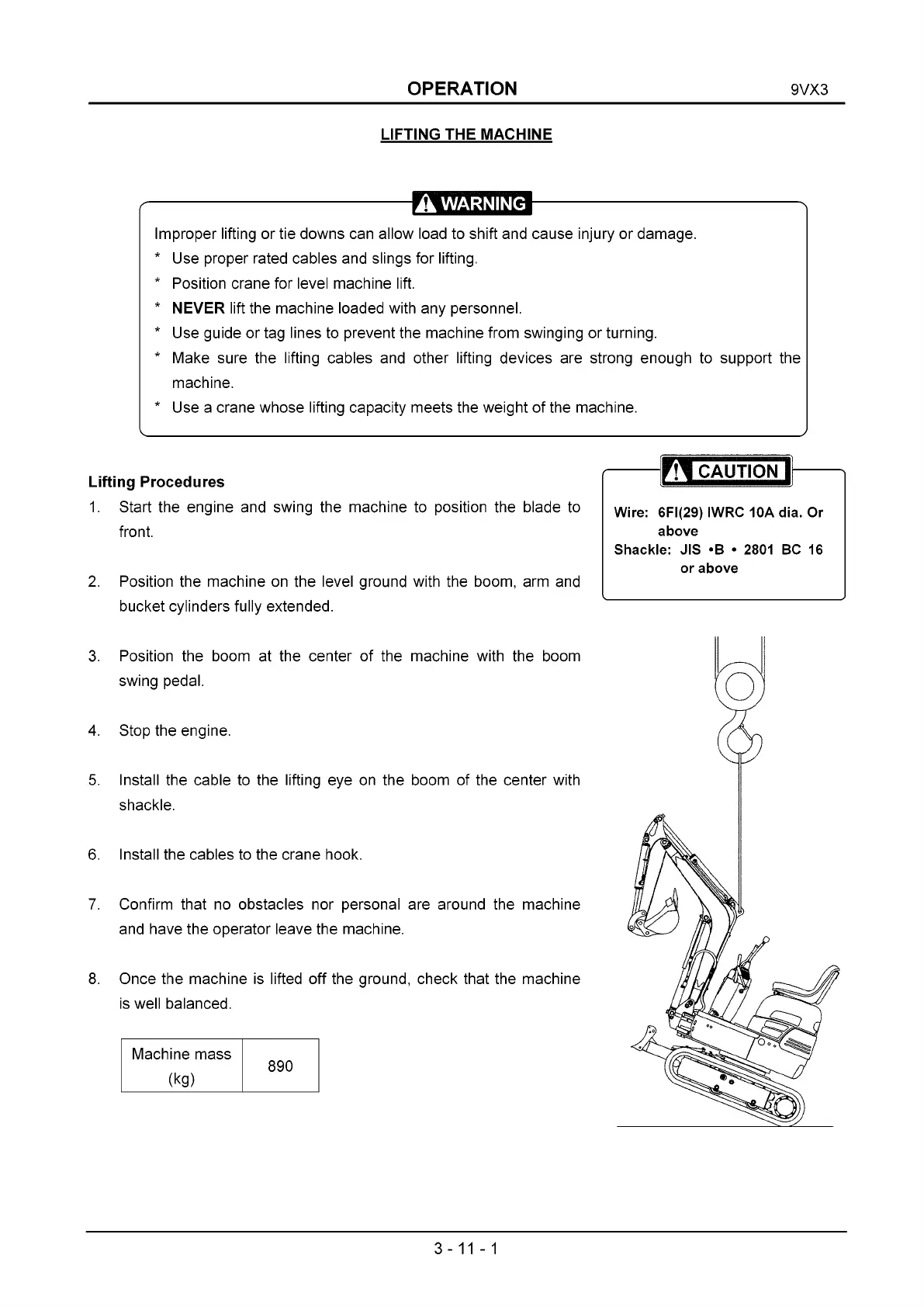

OPERATION 9VX3
LIFTING THE MACHINE
A WARNING
Improper lifting or tie downs can allow load to shift and cause injury or damage.
* Use proper rated cables and slings for lifting.
* Position crane for level machine lift.
* NEVER lift the machine loaded with any personnel.
* Use guide or tag lines to prevent the machine from swinging or turning.
* Make sure the lifting cables and other lifting devices are strong enough to support the
machine.
* Use a crane whose lifting capacity meets the weight of the machine.
Lifting Procedures
1. Start the engine and swing the machine to position the blade to
front.
2. Position the machine on the level ground with the boom, arm and
bucket cylinders fully extended.
3. Position the boom at the center of the machine with the boom
swing pedal.
4. Stop the engine.
5. Install the cable to the lifting eye on the boom of the center with
shackle.
6 . Install the cables to the crane hook.
7. Confirm that no obstacles nor personal are around the machine
and have the operator leave the machine.
8 . Once the machine is lifted off the ground, check that the machine
is well balanced.
Machine mass
890
(kg)
CAUTION I
Wire: 6FI(29) IWRC 10A dia. Or
above
Shackle: JIS *B • 2801 BC 16
or above
3-11-1
