MAINTENANCE 9VX3

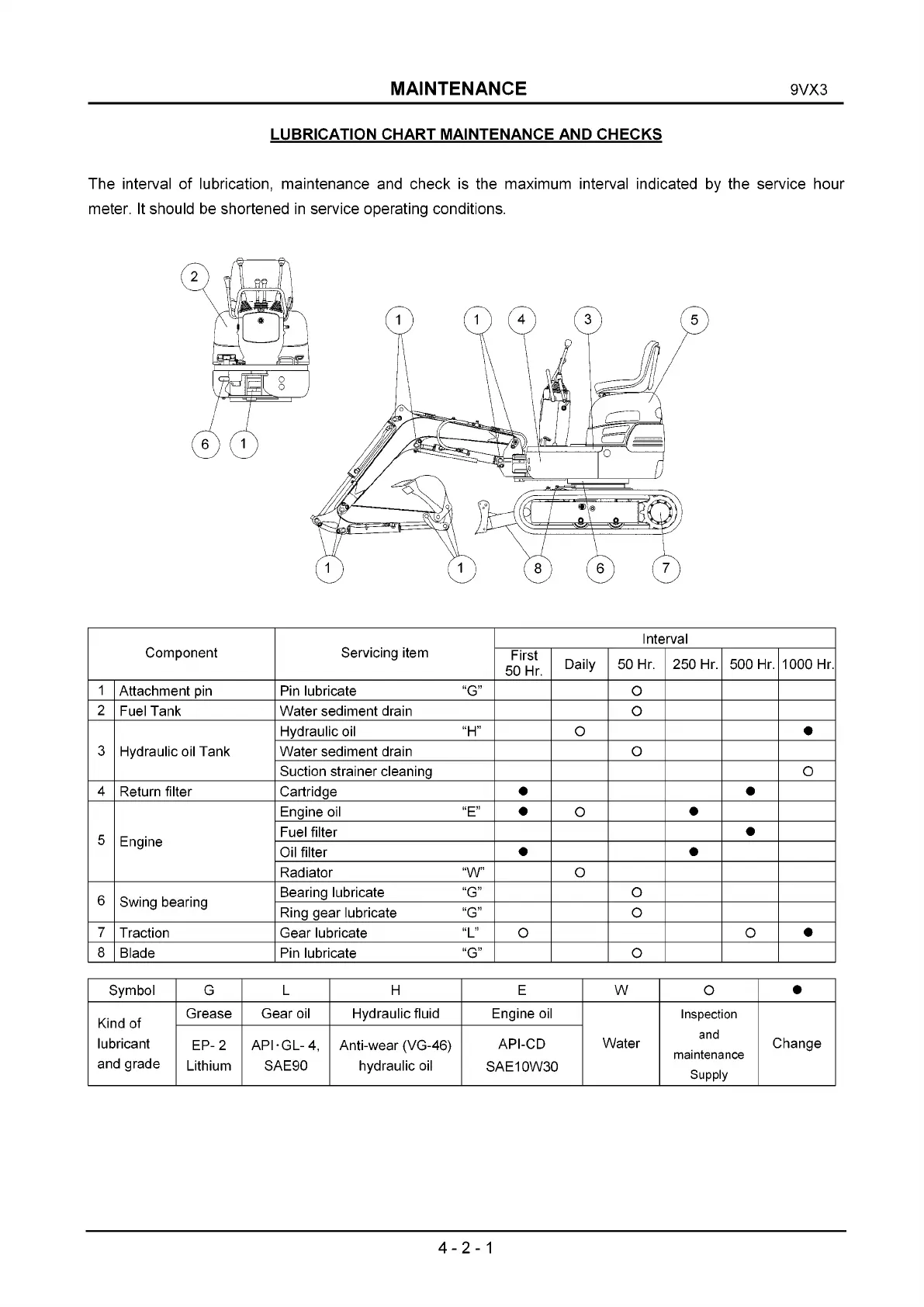

LUBRICATION CHART MAINTENANCE AND CHECKS
The interval of lubrication, maintenance and check is the maximum interval indicated by the service hour
meter. It should be shortened in service operating conditions.
Component
Servicing item
Interval
First
50 Hr.
Daily 50 Hr. 250 Hr. 500 Hr. 1000 Hr.
1
Attachment pin Pin lubricate
“G”
О
2
Fuel Tank
Water sediment drain О
Hydraulic oil
“H” О
•
3
Hydraulic oil Tank
Water sediment drain О
Suction strainer cleaning
О
4
Return filter Cartridge
• •
Engine oil “E”
•
О
•
R
Engine
Fuel filter
•
vJ
Oil filter
• •
Radiator “W” О
Swing bearing
Bearing lubricate “G” О
и
Ring gear lubricate “G” О
7
Traction
Gear lubricate О О
•
8
Blade Pin lubricate “G” О
Symbol G
L H E W О
•
Kind of
lubricant
and grade
Grease
Gear oil Hydraulic fluid Engine oil
Water
Inspection
and
maintenance
Supply
Change
EP-2
Lithium
API -GL- 4,
SAE90
Anti-wear (VG-46)
hydraulic oil
API-CD
SAE10W30
