MAINTENANCE 9VX3

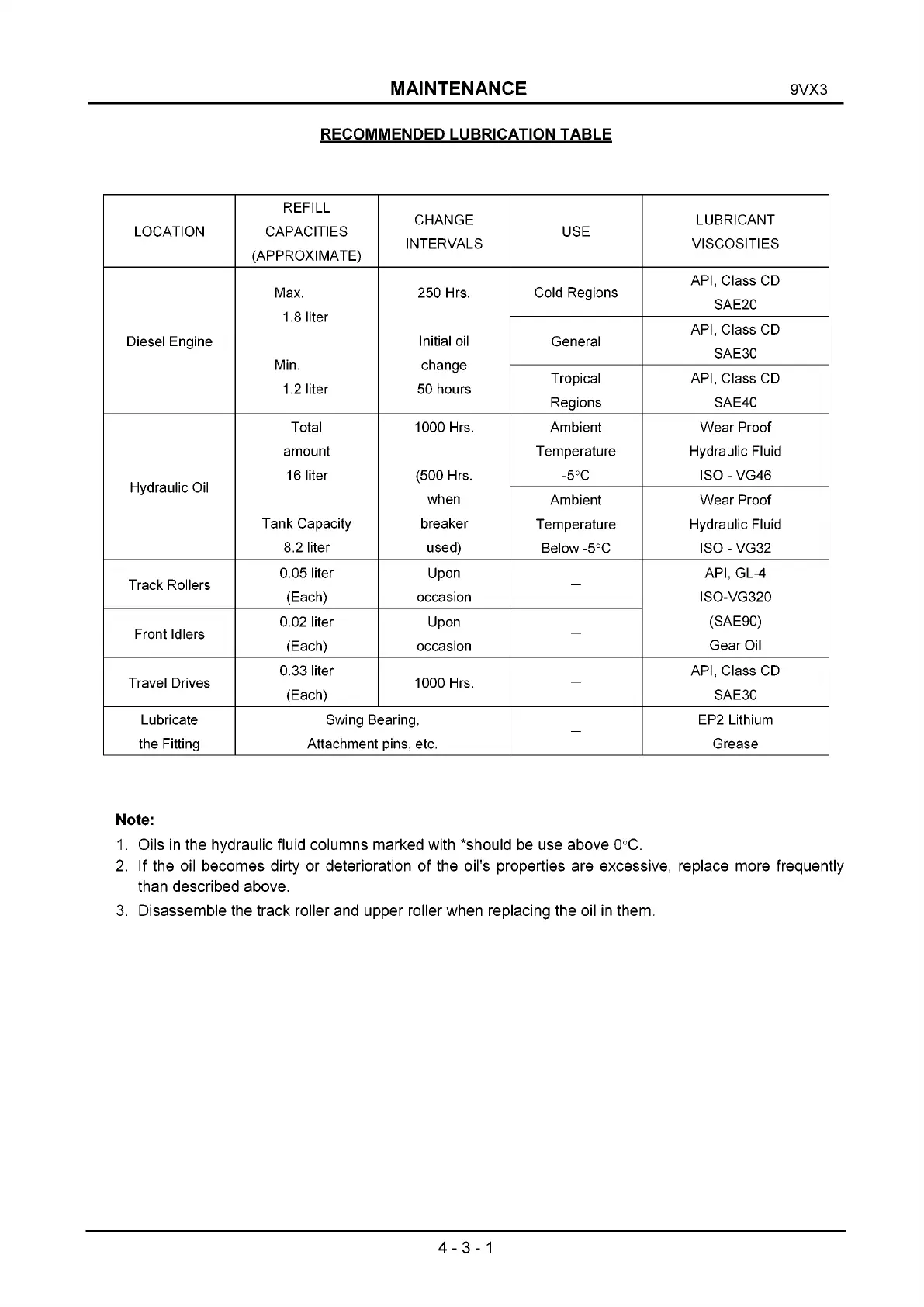

RECOMMENDED LUBRICATION TABLE
LOCATION
REFILL
CAPACITIES
(APPROXIMATE)
CHANGE
INTERVALS
USE
LUBRICANT
VISCOSITIES
Diesel Engine
Max.
1.8 liter
Min.
1.2 liter
250 Hrs.
Initial oil
change
50 hours
Cold Regions
API, Class CD
SAE20
General
API, Class CD
SAE30
Tropical
Regions
API, Class CD
SAE40
Hydraulic Oil
Total
amount
16 liter
Tank Capacity
8.2 liter
1000 Hrs.
(500 Hrs.
when
breaker
used)
Ambient
Temperature
-5°C
Wear Proof
Hydraulic Fluid
ISO - VG46
Ambient
Temperature
Below -5°C
Wear Proof
Hydraulic Fluid
ISO - VG32
Track Rollers
0.05 liter
(Each)
Upon
occasion
-
API, GL-4
ISO-VG320
(SAE90)
Gear Oil
Front Idlers
0.02 liter
(Each)
Upon
occasion
-
Travel Drives
0.33 liter
(Each)
1000 Hrs.
-
API, Class CD
SAE30
Lubricate
the Fitting
Swing Bearing,
Attachment pins, etc.
-
EP2 Lithium
Grease
Note:
1. Oils in the hydraulic fluid columns marked with *should be use above 0°C.
2. If the oil becomes dirty or deterioration of the oil's properties are excessive, replace more frequently
than described above.
3. Disassemble the track roller and upper roller when replacing the oil in them.
