Iiyama ProLite TF2234MSC User Manual

ENGLISH
APPENDIX 29
M087R22

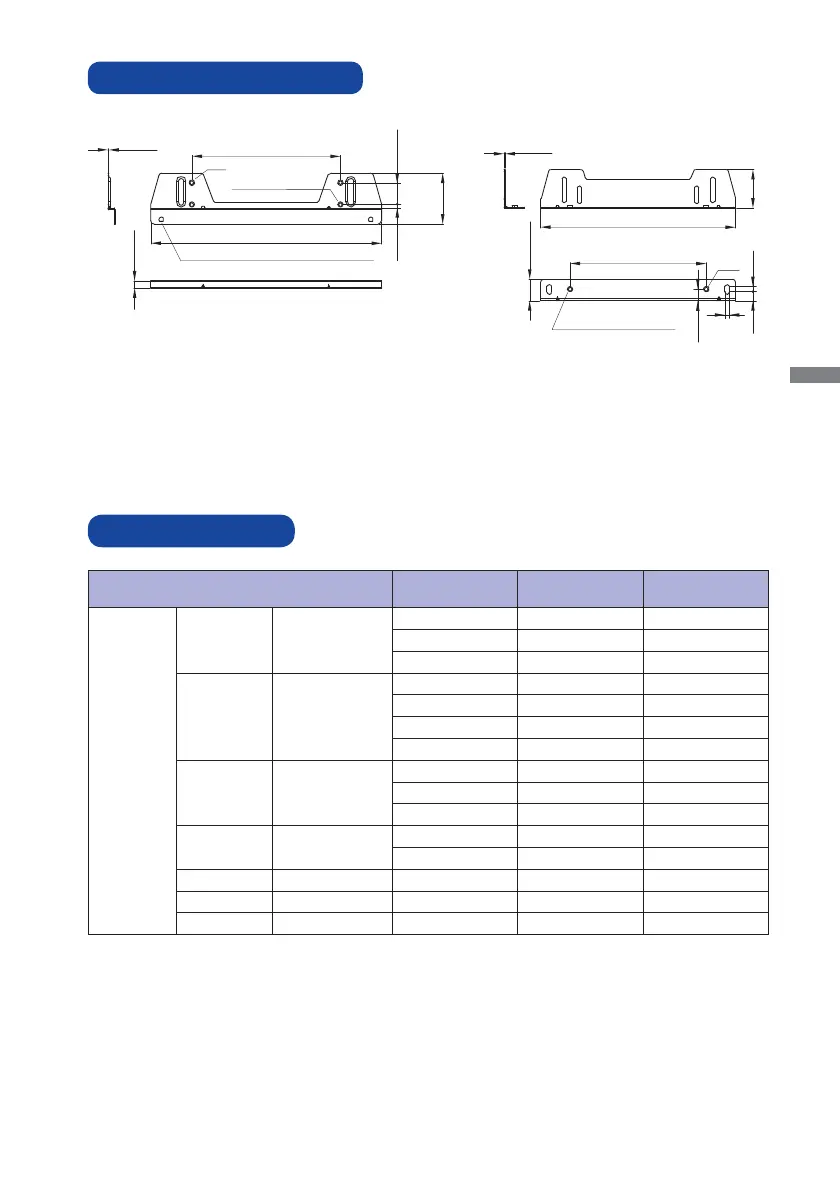

COMPLIANT TIMING
DIMENSIONS : L-BRACKET
<Bracket A>
   
<Bracket B>
186.0 mm
20.0mm
1.0 mm
37.4mm
1.0 mm
220.0 mm
4.1mm
51.6mm
5.0mm
8.0mm
4.3 mm
10.5mm
130.0 mm
M4
M4
21.0mm
3.7mm
142.0 mm
Screw holes for
mounting the chassis
Screw holes for mounting the monitor
Screw holes for
fixing the bracket
Video Mode
Horizontal
Frequency
Vertical
Frequency
Dot Clock
VESA
VGA 640 × 480
31.469kHz 59.940Hz 25.175MHz
37.500kHz 75.000Hz 31.500MHz
37.861kHz 72.809Hz 31.500MHz
SVGA 800 × 600
35.156kHz 56.250Hz 36.000MHz
37.879kHz 60.317Hz 40.000MHz
46.875kHz 75.000Hz 49.500MHz
48.077kHz 72.188Hz 50.000MHz
XGA 1024 × 768
48.363kHz 60.004Hz 65.000MHz
56.476kHz 70.069Hz 75.000MHz
60.023kHz 75.029Hz 78.750MHz
SXGA 1280 × 1024
63.981kHz 60.020Hz 108.000MHz
79.976kHz 75.025Hz 135.000MHz
WXGA+ 1440 × 900 55.935kHz 59.887Hz 106.500MHz
WSXGA+ 1680 × 1050 65.290kHz 59.954Hz 146.250MHz
Full HD 1920 × 1080 67.500kHz 60.000Hz 148.500MHz

Iiyama ProLite TF2234MSC Specifications

General

Brand	Iiyama
Model	ProLite TF2234MSC
Category	Monitor
Language	English
