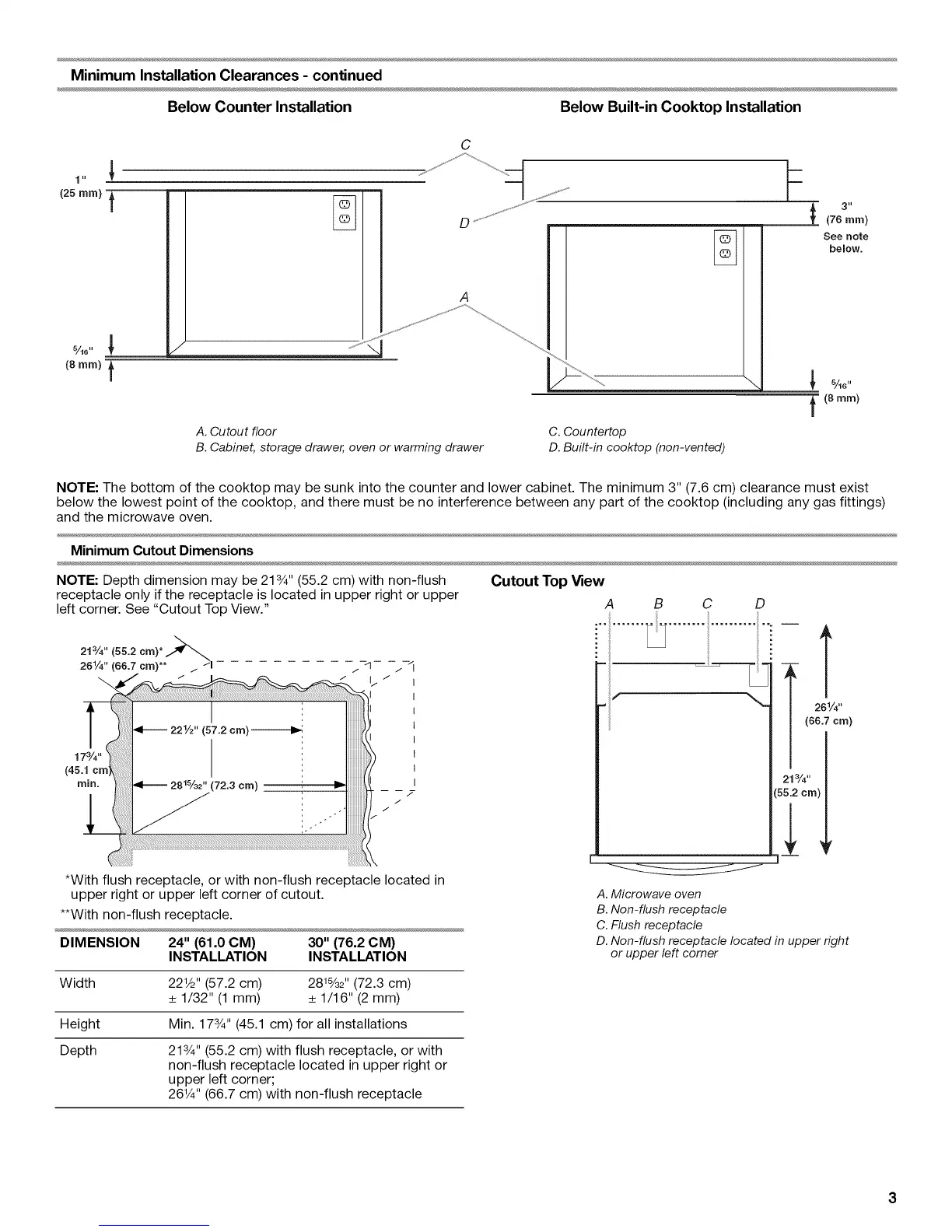

MinimumInstallationClearances- continued
Below Counter Installation Below Built-in Cooktop Installation
C
(25rnm) f
5/16"
(8 ram) t
f_,_jS_,_,H, j_
I
....f_,'Y
3"
(76 mm)
See note
bemow.
5/16"
t (8 mm)
A. Cutout floor
B. Cabinet, storage drawer, oven or warming drawer
C. Countertop
D. Built-in cooktop (non-vented)
NOTE: The bottom of the cooktop may be sunk into the counter and lower cabinet. The minimum 3" (7.6 cm) clearance must exist
below the lowest point of the cooktop, and there must be no interference between any part of the cooktop (including any gas fittings)
and the microwave oven.
MinimumCutoutDimensions
Cutout Top View
NOTE: Depth dimension may be 213/4"(55.2 cm) with non-flush
receptacle only if the receptacle is located in upper right or upper
left corner. See "Cutout Top View."
*With flush receptacle, or with non-flush receptacle located in
upper right or upper left corner of cutout.
**With non-flush receptacle.
DIMENSION 24" (61.0 CM) 30" (76.2 CM)
INSTALLATION INSTALLATION
A B C D
"_ "m)
Jt
A. Microwave oven
B. Non-flush receptacle
C. Flush receptacle
D. Non-flush receptacle located in upper right
or upper/eft corner
Width 221/2"(57.2 cm) 2815/32'' (72.3 cm)
_+1/32" (1 mm) _+1/16" (2 mm)
Height Min. 173/4"(45.1 cm) for all installations
Depth 213/4'' (55.2 cm) with flush receptacle, or with
non-flush receptacle located in upper right or
upper left corner;
261/4"(66.7 cm) with non-flush receptacle
