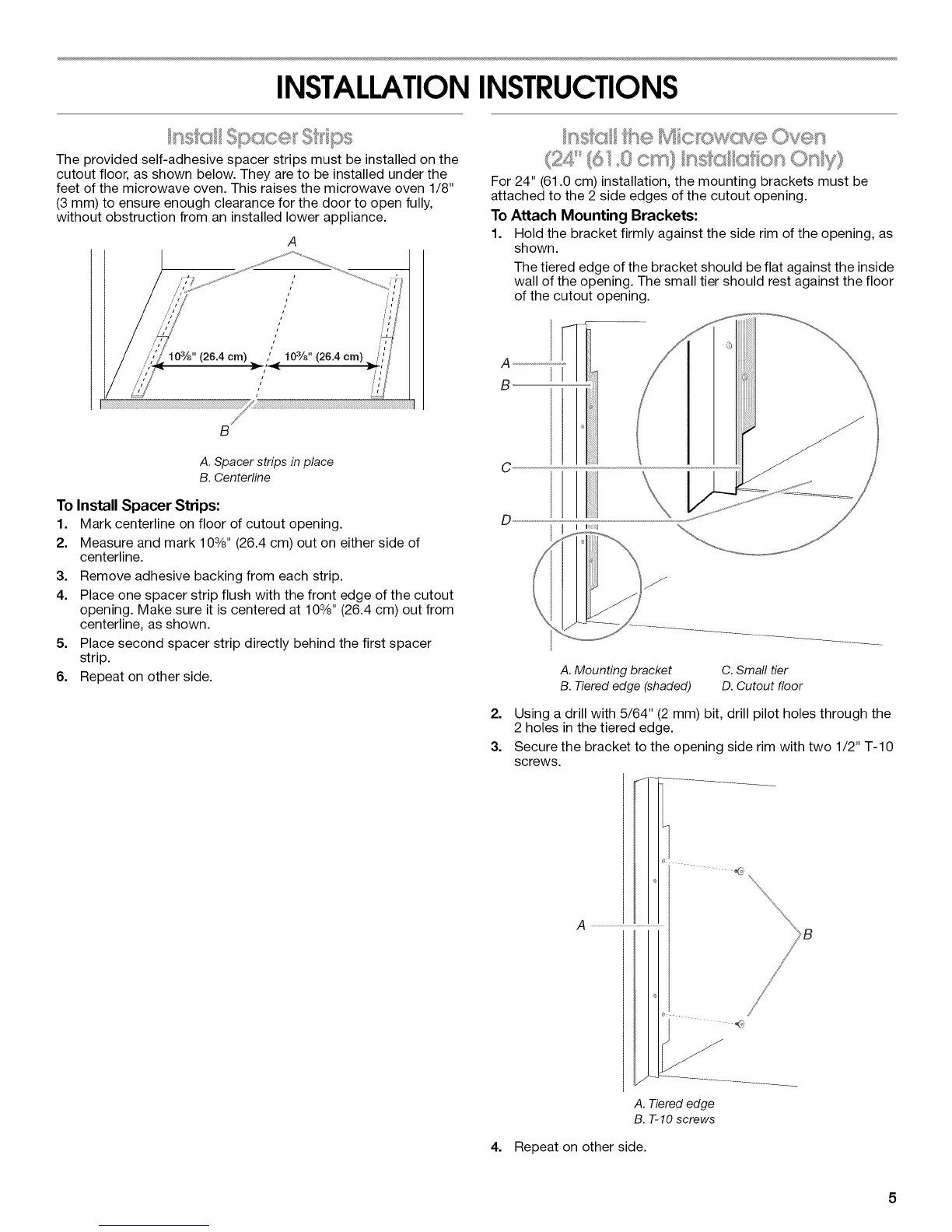

INSTALLATIONINSTRUCTIONS
The provided self-adhesive spacer strips must be installed on the
cutout floor, as shown below. They are to be installed under the
feet of the microwave oven. This raises the microwave oven 1/8"
(3 ram) to ensure enough clearance for the door to open fully,
without obstruction from an installed lower appliance.
10s/8" (26.4 crn)
/
i
/
/
/
i
/ 103/8" (26.4 crn)
f'O,_" (6© ,,,+<rdt O_/yJ+'
%6,+/"_' o,. %J_l l,#iJ
For 24" (61.0 cm) installation, the mounting brackets must be
attached to the 2 side edges of the cutout opening.
To Attach Mounting Brackets:
1. Hold the bracket firmly against the side rim of the opening, as
shown.
The tiered edge of the bracket should be flat against the inside
wall of the opening. The small tier should rest against the floor
of the cutout opening.
B
A. Spacer strips in place
B. Centerllne
To Install Spacer Strips:
1. Mark centerline on floor of cutout opening.
2. Measure and mark 103/8'' (26.4 cm) out on either side of
centerline.
3.
4.
5,
6.
Remove adhesive backing from each strip.
Place one spacer strip flush with the front edge of the cutout
opening. Make sure it is centered at 103/8'' (26.4 cm) out from
centerline, as shown.
Place second spacer strip directly behind the first spacer
strip.
Repeat on other side.
C
D
A. Mounting bracket
B. Tiered edge (shaded)
C. Small tier
D. Cutout floor
2. Using a drill with 5/64" (2 mm) bit, drill pilot holes through the
2 holes in the tiered edge.
3. Secure the bracket to the opening side rim with two 1/2" T-10
screws.
.... _2_'
A ...............................................................
A. Tiered edge
B. T-IO screws
4. Repeat on other side.
