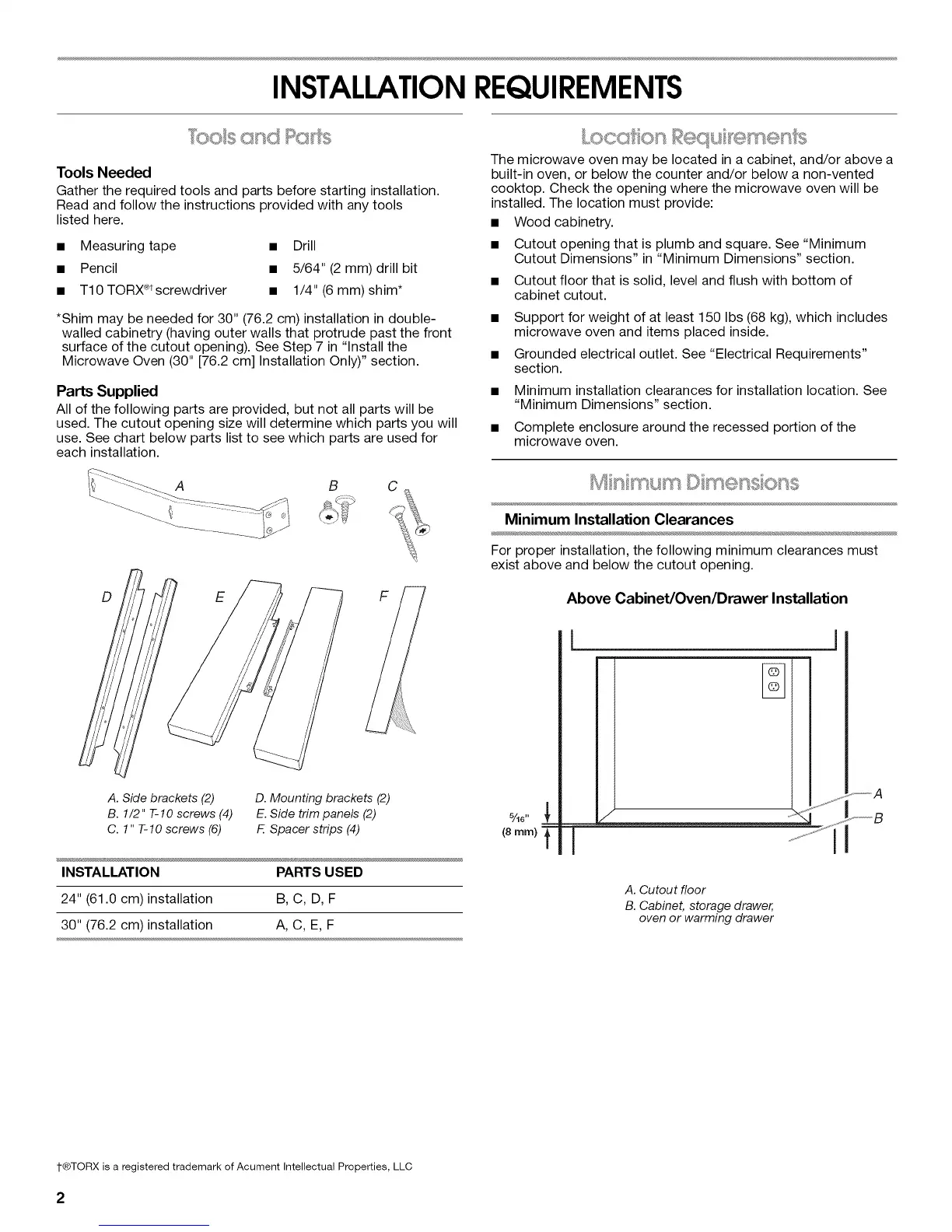

INSTALLATIONREQUIREMENTS
t'O0_S 3_J
Tools Needed
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools
listed here.
• Measuring tape • Drill
• Pencil • 5/64" (2 mm) drill bit
• T10 TORX®tscrewdriver • 1/4" (6 mm) shim*
*Shim may be needed for 30" (76.2 cm) installation in double-
walled cabinetry (having outer walls that protrude past the front
surface of the cutout opening). See Step 7 in "Install the
Microwave Oven (30" [76.2 cm] Installation Only)" section.
Parts Supplied
All of the following parts are provided, but not all parts will be
used. The cutout opening size will determine which parts you will
use. See chart below parts list to see which parts are used for
each installation.
A
D E
A. Side brackets (2) D. Mounting brackets (2)
B. 1/2" T-10 screws (4) E. Side trim panels (2)
C. 1" T-IO screws (6) F. Spacer strips (4)
INSTALLATION PARTS USED
24" (61.0 cm)installation B, C, D, F
30" (76.2 cm)installation A, C, E, F
The microwave oven may be located in a cabinet, and/or above a
built-in oven, or below the counter and/or below a non-vented
cooktop. Check the opening where the microwave oven will be
installed. The location must provide:
• Wood cabinetry.
• Cutout opening that is plumb and square. See "Minimum
Cutout Dimensions" in "Minimum Dimensions" section.
• Cutout floor that is solid, level and flush with bottom of
cabinet cutout.
Support for weight of at least 150 Ibs (68 kg), which includes
microwave oven and items placed inside.
Grounded electrical outlet. See "Electrical Requirements"
section.
• Minimum installation clearances for installation location. See
"Minimum Dimensions" section.
• Complete enclosure around the recessed portion of the
microwave oven.
Minimum Installation Clearances
For proper installation, the following minimum clearances must
exist above and below the cutout opening.
Above Cabinet/Oven/Drawer Installation
I
A. Cutout floor
B. Cabinet, storage drawer,
oven or warming drawer
I"®TORX is a registered trademark of Acument Intellectual Properties, LLC
2
