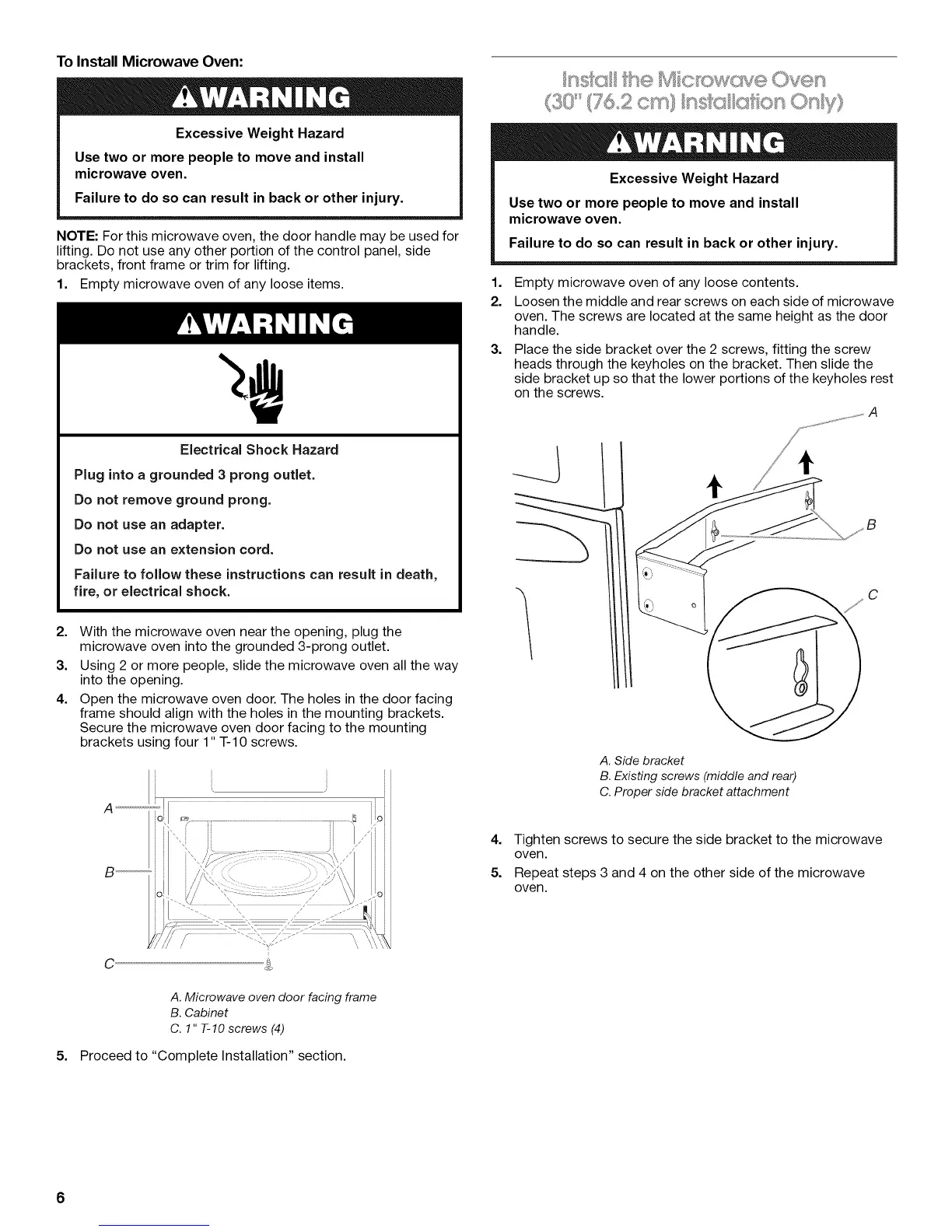

To Install Microwave Oven:
Excessive Weight Hazard
Use two or more people to move and install
microwave oven.
Failure to do so can result in back or other injury.
NOTE: For this microwave oven, the door handle may be used for
lifting. Do not use any other portion of the control panel, side
brackets, front frame or trim for lifting.
1. Empty microwave oven of any loose items.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
2. With the microwave oven near the opening, plug the
microwave oven into the grounded 3-prong outlet.
3. Using 2 or more people, slide the microwave oven all the way
into the opening.
4. Open the microwave oven door. The holes in the door facing
frame should align with the holes in the mounting brackets.
Secure the microwave oven door facing to the mounting
brackets using four 1" T-10 screws.
Excessive Weight Hazard
Use two or more people to move and install
microwave oven.
Failure to do so can result in back or other injury.
1. Empty microwave oven of any loose contents.
2. Loosen the middle and rear screws on each side of microwave
oven. The screws are located at the same height as the door
handle.
3. Place the side bracket over the 2 screws, fitting the screw
heads through the keyholes on the bracket. Then slide the
side bracket up so that the lower portions of the keyholes rest
on the screws.
A
C
A. Side bracket
B. Existing screws (middle and rear)
C. Proper side bracket attachment
A. Microwave oven door facing frame
B. Cabinet
C. 1" T-IO screws (4)
5. Proceed to "Complete Installation" section.
4. Tighten screws to secure the side bracket to the microwave
oven.
5. Repeat steps 3 and 4 on the other side of the microwave
oven.
6
